Portable Ev Charger US-Standard-AC-TYPE1-EV Charger

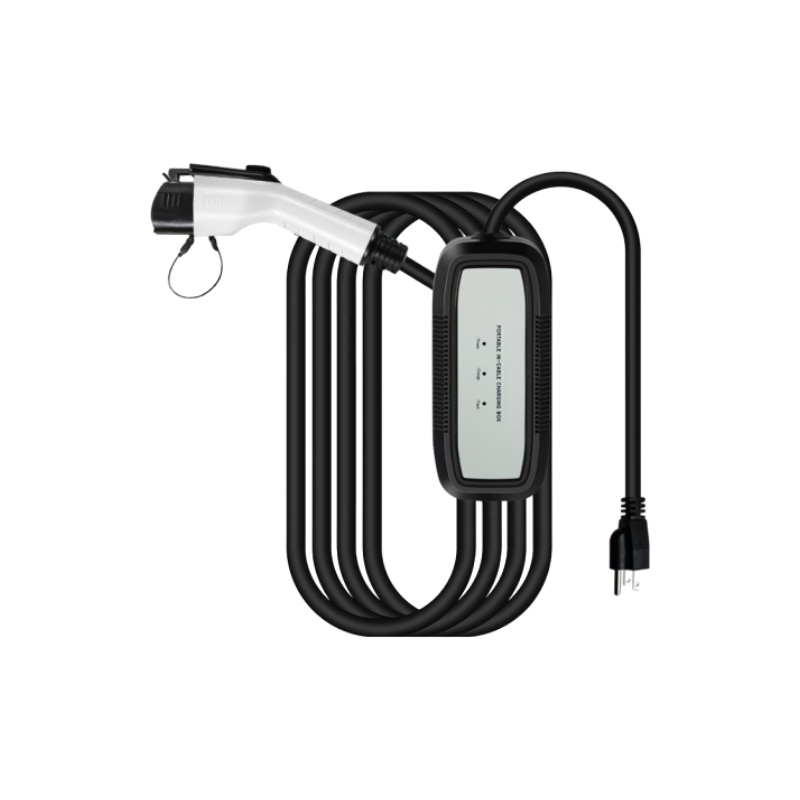

AC TYPE1 Indicator Light Portable Ev Charger – US Standard

Portable EV charger for home use with a sleek, curved design, and easy rolling capabilities. It’s a plug-and-play solution.
Energy-efficient with standby power consumption of less than 3 watts.
Equipped with three indicator lights to provide real-time charging information.

Contact us
Categories: ,

Applications of AC Portable EV Charger

Operators of service stations
Public charging stations along highways
Bustling urban areas
Operators of commercial fleets
Providers of EV infrastructure and EVSE (Electric Vehicle Supply Equipment) services

Specification of AC Portable EV Charger

Datasheet Parameters
Name YL – MB 141 YL – MB 142 YL – MB 143 YL – MB 144 YL – MB 145










Appearance structure

 Power plug NEMA 5 – 1 5 P NEMA 6 – 2 0 P NEMA  1 4 – 5 0P
Model Plug & Play
Enclosure Charging gun – Control box PC 9330
Size Charging Gun 230*98*58mm/Control Box220*98*48mm(H*W*D)
Installation Method Floor – mounted / Wall – Mounted
Install Components Screw
Power Direction Input (Up)  &  Output (Down )
Net Weight About  2KG About 3.4 KG About 4.1 KG
Cable Size 3*2 .5mm² + 0.75mm² 3*6mm² + 0.75mm² 8 AWG x 2 C + 1 0 AWG + 1 8 AWG
cable Length 5M  or  Negotiation
Input Voltage AC 120V AC 240V AC 240V




Electrical index

 Input Frequency 50 Hz / 60 Hz
Max Power  1.92 KW 3.84 KW 7.6 KW 9.6 KW 11.5 KW
Output Voltage AC 120V AC 240V AC 240V
Output Current 16A 16A 32A 40A 48A
Standby Power 3W








Environment Index

 Applicable scene Indoor or Outdoor
Work Humidity 5 % ~ 95 %( non – condensing )
Work Temperature – 30 ℃ ~ + 50 ℃
Work Altitude <2000M
Protection class Charging Gun IP 67 / Control Box IP 67
Cooling Method Natural  Cooling
Standard SAEJ 1772
Flamm ability rating UL 94V0
 Certificate UL, FCC
Functional

design

 I n t e r f a c e LED  Indicator  Light
Communication /
Packaging Specification Box gauge/weight L*W*H: 410*410*125mm L*W*H: 410*410*125mm L*W*H: 410*410*125mm
Safety design Overcurrent Protection, Residual current protection, Ground protection,  Surge Protection, over/under voltage, Frequency, temperature protection
