Applications of Type 1 EV Charger
- Service station operators
- Public corridor charging along the highways
- Busy urban areas
- Commercial fleet operators
- EV Infrastructure operators and EVSE providers
Specification of Type 1 EV Charger
| Datasheet | Parameters | |

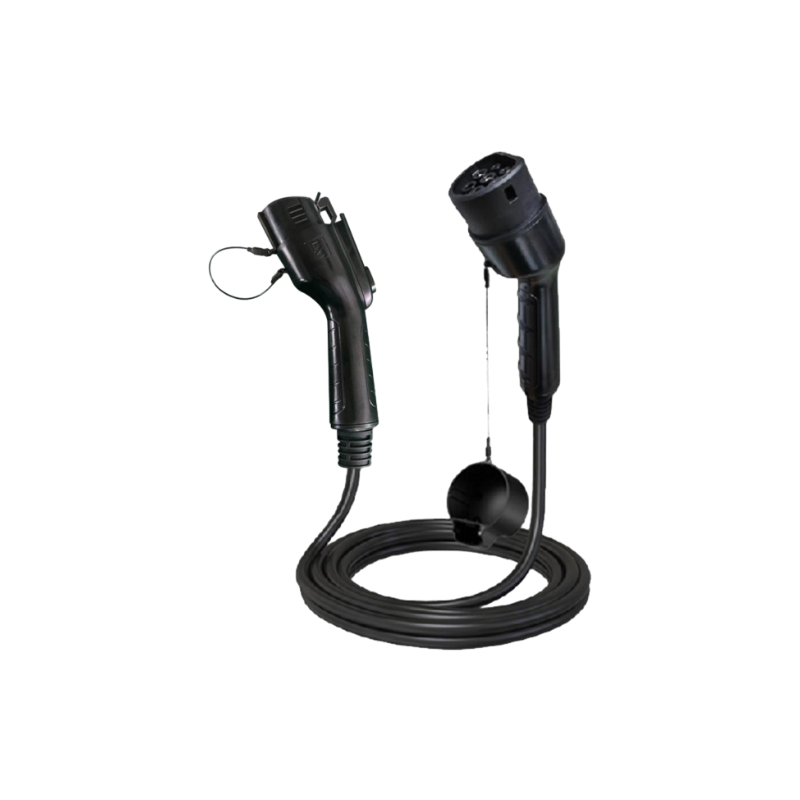

| Name | YL – MB 311 | |
|
Appearance structure |
Model | Plug & Play |
| Enclosure | Charging Gun PC 9330 | |
| Size | SAE Charging Gun 230*98*58mm/IEC Charging Gun 240*98*70mm【H*W*D】 | |
| Installation Method | Floor-mounted & Portable | |
| Install Components | / | |
| Power Direction | Input (Up) & Output (Down) | |
| Net Weight | About 3.1 KG | |
| Cable Size | 3*6 mm² + 0.75 mm² | |
| Cable Length | 5 M or Negotiation | |
| Input Voltage | AC 240V | |
|
E l e c t r i c a l i n d e x |
Input Frequency | 50 Hz / 60 Hz |
| Max Power | 7.6 KW | |
| Output Voltage | AC 240v | |
| Output Current | 32 A | |
| Standby Power | / | |
|
Environment Index |
Applicable Scene | Indoor or outdoor |
| Work Humidity | 5 % ~ 9 5% ( non – condensing ) | |
| Work Temperature | – 30 ℃ ~ + 5 0 ℃ | |
| Work Altitude | <2000M | |
| Protection Class | SAE Charging gun IP 67 / IEC Charging gun IP 54 | |
| Cooling Method | Natural Cooling | |
| Standard | SAEJ 1772 | |
| Flammability rating | UL 94 V0 | |
| Certificate | UL, FCC | |
| Functional Design | Interface | / |
| Communication | / | |
| Packaging Specification | Boxgauge / weight | L*W*H: 410*410*125 mm (3.8 KG) |
