40A EV Charger -US Standard

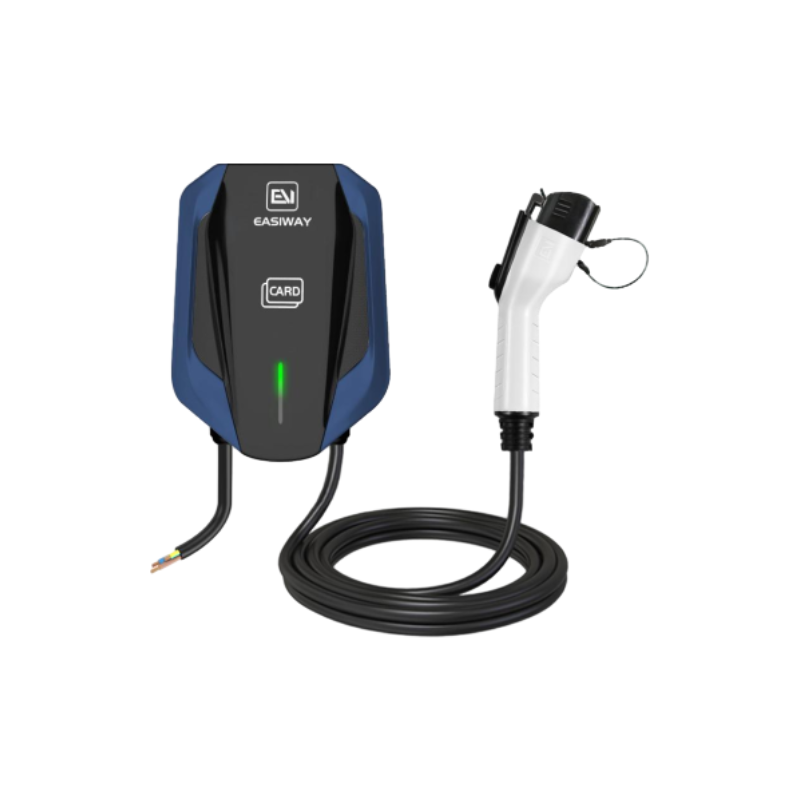

V8 model 40A Ev Charger:
Wall-mounted & Column installation, RFID to charge.
Low Consumption: Standby State power less than 3w, saving energy.
Display screen, check the charging information at any time clearly.

Contact us
Category:

Applications of 40A EV Charger

  • Service station operators
  • Public corridor charging along the highways
  • Busy urban areas
  • Commercial fleet operators
  • EV Infrastructure operators and EVSE providers

Specification of 40A EV Charger

Datasheet Parameters
Name YL – MB 251 YL – MB 252 YL – MB 253








Appearance structure

Model RFID to charge
Enclosure Charging gun PC 9330 / Contol box sheet metal
Size Charging Gun 240*98*70mm/Wall Box 300*220*80mm【H*W*D】
Installation method W a l l – M o u n t e d / C o l u m n
Install components Column ( Option *)
Power direction Input (Down )  &  Outpout(Down)
Net Weight   About 3.7 KG About 4.5 KG
C a b l e S i z e 3*6 mm² + 0.75 mm² 8 AWG x 2C + 10 AWG + 18 AWG
Cable Lenth 5 M  o r  Negotiation
Input Voltage AC 240V




Electrical Index

Input Frequency 50 Hz / 60 Hz
Max Power 7.6 KW 9.6 KW 11.5 KW
Output voltage AC 2240V
Output current 32 A 40 A 48 A
Standby power 3 W








Environment Index

Applicable Scene Indoor or outdoor
Work humidity 5 % ~ 9 5%( non – condensing )
Work Temperature – 30 ℃ ~ + 50 ℃
W o r k A l t i t u d e <2000M
Protection class Charing gun IP 67 / Control Box IP 54
Cooling Method natural cooling
Standard SAEJ 1772
Flammability rating UL 94  V0
Certification UL, FCC
Functional design
communication /
Packaging Design Boxgauge / Weight L*W *H: 410 410*125 mm(about 4.5KG) L*W*H: 410 *410*125(about 5.3KG)
Safety Design
Overcurrent Protection, Residual current protection, ground protection, surge protection, over/under voltage, Frequency, Temperature Protection
