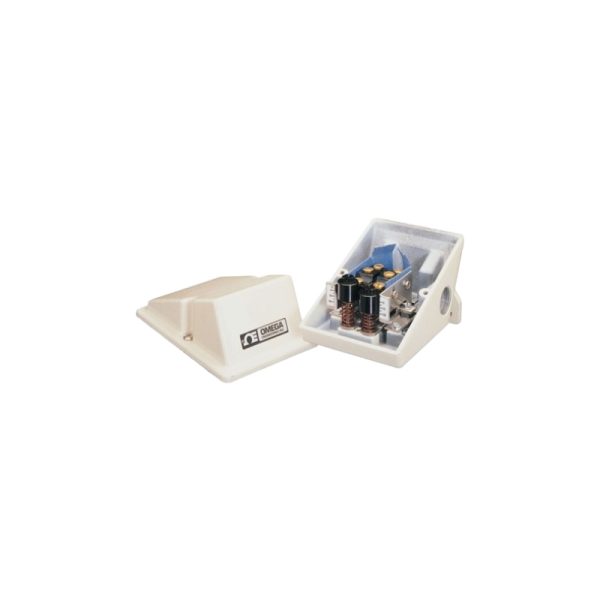

PSW-308-SS Industrial Pressure Switch for Harsh Environments

The Omega PSW-300 series  Industrial Pressure Switchare SPDT switches with fixed or adjustable deadbands that are UL listed and CSA certified along with a NEMA-4X enclosure for harsh environments.

Ideal for use in harsh and corrosive environments, the PSW-300 Series pressure switches feature stainless steel or Buna-N diaphragm-sealed pistons or diaphragm actuators that provide repeatability of ±1% of range. Standard design allows easy access to switches. For versatility, single setpoint with adjustable deadband or dual, independently adjustable setpoints with fixed deadband may be chosen.

Contact us
Category:

Feature

  • Add your content…Buna-N or 316SS Diaphragm
  • 10 A SPDT Switch
  • Single Setpoint with Adjsutable Deadband or Dual Setpoint with Fixed Deadband
  • Fixed or Adjustable Deadband

Specifications

  • Connection GenderFamale
  • Enclosure RatingEpoxy coated aluminum
  • Maximum Ambient Temperature66 {C} (155 {F})
  • Maximum Rating10
  • Minimum Ambient Temperature-29 {C} (-20 {F})
  • Other FeaturesAdjustable DB
  • Pressure TypeGauge
  • Pressure UnitsPSIG
  • repeatability±1% of range
  • Electrical Connection3/4 NPT female
  • Storage Temperature-29 to 66°C (‘-20 to 150°F)
  • Weight0.9 kg (2 lb)
  • Ambient Temperature Limits-29 to 66°C (‘-20 to 150°F) Setpoint typically shifts +1% of range per 28°C (50°F) of temperature change
  • ApprovalUL listed
  • Connection MaterialVac through inH2O ranges – carbon steel; All psi ranges – 316SS
  • Electrical Rating10 A: 125/250 Vac; 0.5 A: 125 Vdc; 0.25 A: 250 Vac; 15 A: 125/250 Vac
  • EnclosureNEMA-4X watertight and corrosion resistant
  • Pressure ConnectionPSW-300: 1/4 NPT female; 1/2 NPT Male for vacuum to 600 psi; 1/4 NPT female for 1000 and 3000 psi PSW-351: 1 /4 NPTF; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges
  • Process Fluid18 to 66°C (0 to 150°F) Buna-N and PTFE diaphragms; -7 to 149°C (20 to 300°F) for FKM diaphragms
  • Setpoint Repeatability±1% of range
  • Switch Output1 or 2 SPDT
