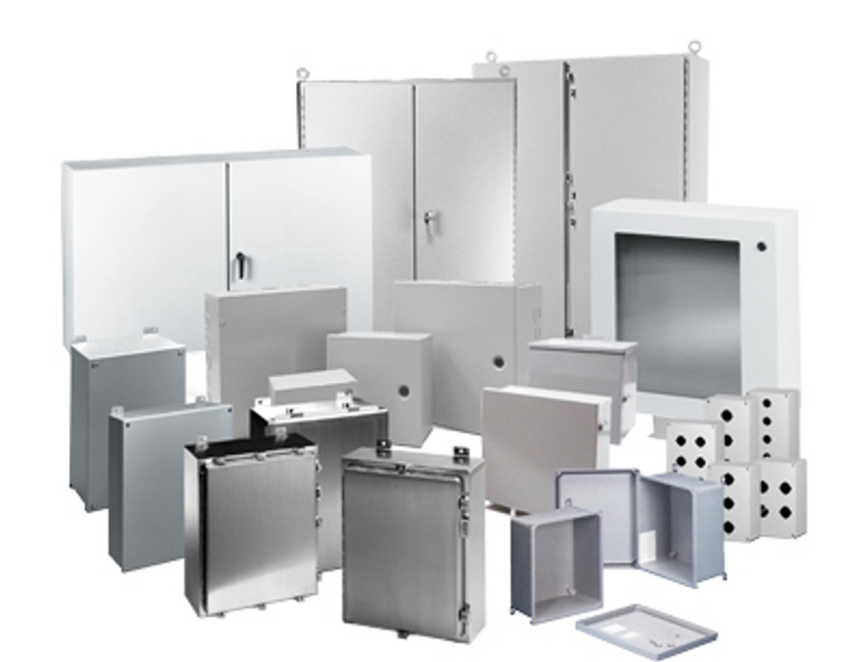

Electrical enclosures are protective cases designed to house electrical or electronic equipment, providing safety, durability, and environmental protection. They can be categorized by standards (NEMA/IP), materials, mounting methods, and applications.

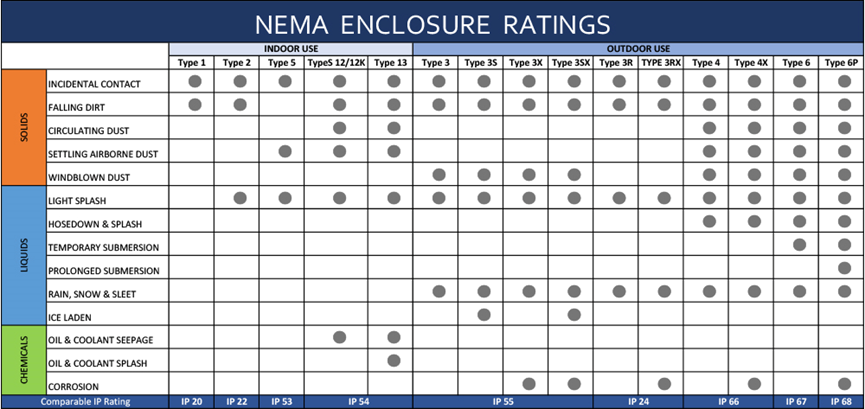

By NEMA Rating
| NEMA Type | Description |
| NEMA 1 electrical enclosure | Indoor use, protects against accidental contact and large objects; not dust- or water-tight. |
| NEMA 2 electrical enclosure | Indoor use, protects against limited falling water and dirt. |
| NEMA 3 electrical enclosure | Outdoor use, protects against windblown dust, rain, sleet, and ice. |
| NEMA 3R electrical enclosure | Outdoor junction boxes, protects against rain, sleet, snow, and dripping water. |
| NEMA 3S electrical enclosure | Outdoor use, allows operation when ice-laden. |
| NEMA 4 electrical enclosure | Gasketed; protects against splashing water, washdowns, and hose-directed water. |
| NEMA 4X electrical enclosure | Corrosion-resistant (stainless steel, plastic, etc.); used in food, chemical, and harsh environments. |
| NEMA 5 electrical enclosure | Indoor use, protects against dust, dirt, and dripping non-corrosive liquids. |
| NEMA 6 electrical enclosure | Indoor/outdoor, protects against temporary submersion. |
| NEMA 6P electrical enclosure | Indoor/outdoor, protects against prolonged submersion. |
| NEMA 11 electrical enclosure | Indoor, oil-immersed; protects against corrosive liquids and gases. |
| NEMA 12 electrical enclosure | Indoor control panels, protects against dust, oil, and non-corrosive liquids. |
| NEMA 12K electrical enclosure | Same as NEMA 12 but with knockouts. |
| NEMA 13 electrical enclosure | Indoor use, protects against dust, spraying water, oil, and coolants. |

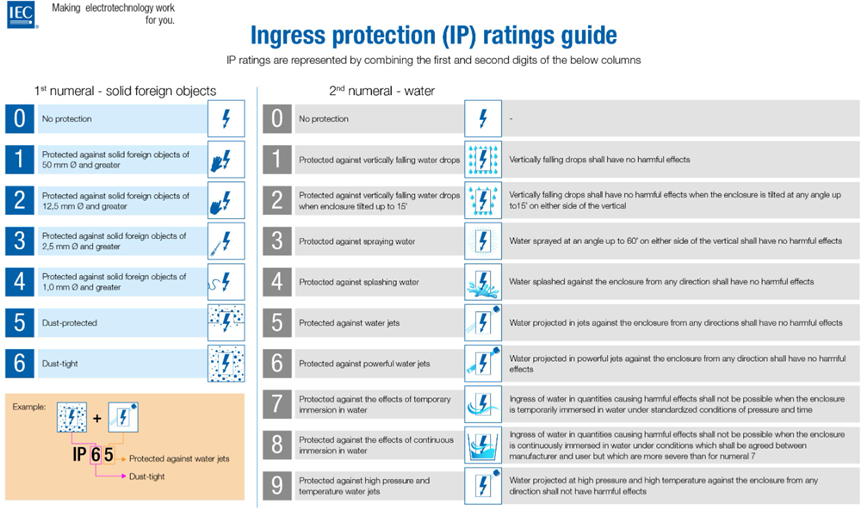

By IP Rating
| IP Code | Description |
| IP44 electrical enclosure | Protection from solid objects >1mm and water splashes. |
| IP45 electrical enclosure | Same as IP44 with protection against low-pressure jets of water. |
| IP54 electrical enclosure | Limited dust ingress and water splashes protection. |
| IP55 electrical enclosure | Dust-protected, withstands water jets. |
| IP56 electrical enclosure | Dust-protected, high-power water jet protection. |
| IP57 electrical enclosure | Dust-protected, immersion up to 1m. |
| IP65 electrical enclosure | Fully dust-tight, protection against water jets. |
| IP66 electrical enclosure | Dust-tight, protection against strong water jets. |
| IP67 electrical enclosure | Dust-tight, immersion up to 1m. |
| IP68 electrical enclosure | Dust-tight, continuous immersion under specified conditions. |
By Material
| Material | Description |
| ABS electrical enclosure | Cost-effective plastic, lightweight, indoor use. |
| Polycarbonate electrical enclosure | High impact resistance, UV resistant, outdoor capable. |
| Aluminum electrical enclosure | Lightweight, corrosion-resistant, good for outdoor telecom/EV. |
| Stainless Steel electrical enclosure | Strong, corrosion and chemical resistant, food/medical industries. |
| Carbon Steel electrical enclosure | Durable, cost-effective, indoor applications. |
| Galvanized Steel electrical enclosure | Corrosion protection via zinc coating, outdoor capable. |
| Mild Steel electrical enclosure | Common, cost-effective for indoor control panels. |
| Powder-Coated electrical enclosure | Extra surface protection, aesthetic finish, customizable colors. |
By Mount Method
| Mount Type | Description |
| Free Standing electrical enclosure | Large enclosures, independent floor placement. |
| Floor Mount electrical enclosure | Anchored to floor for stability. |
| Wall Mount electrical enclosure | Compact, installed on walls (indoor/outdoor). |
| Pole Mount electrical enclosure | Mounted on utility/lighting poles. |
| Rack Mount electrical enclosure | For IT/telecom equipment in 19″ racks. |
| Flush Mount electrical enclosure | Embedded into walls for a clean look. |
| Pad Mount electrical enclosure | Large outdoor cabinets on concrete pads. |
| Surface Mount electrical enclosure | Mounted directly on wall surfaces. |
By Application
| Application | Description |
| Outdoor Telecom Enclosure | Protects telecom equipment in outdoor conditions. |
| Control Panel Enclosure | Houses industrial control and automation components. |
| Battery Enclosure | Protects storage batteries (e.g., solar/UPS). |
| Control Station enclosure | For operator stations and switches. |
| Traffic Control enclosure | Roadside signal and traffic system enclosures. |
| Telecommunications enclsoure | Fiber, network, and telecom systems. |
| Solar Battery Cabinet | Outdoor cabinets for solar battery banks. |
| Climate-Controlled enclosure | Equipped with fans/AC for temperature-sensitive equipment. |
| Push Button Enclosure | Small enclosures for start/stop push buttons. |
| PLC Enclosure | Houses Programmable Logic Controllers. |
| Instrument Enclosure | For sensitive measurement instruments. |
| Operator Console enclosure | Integrated with operator panels for machinery. |
| Distribution Board enclosure | Houses breakers and distribution circuits. |
| HMI Enclosure | For Human-Machine Interfaces. |
| EV Charger Enclosure | Outdoor protective cabinet for charging stations. |
| VFD Enclosure | Protects variable frequency drives with cooling options. |
Summary
Electrical enclosures vary by standard (NEMA/IP), material, mounting method, and application. Choosing the right enclosure ensures equipment protection, compliance with safety standards, and long-term reliability.
