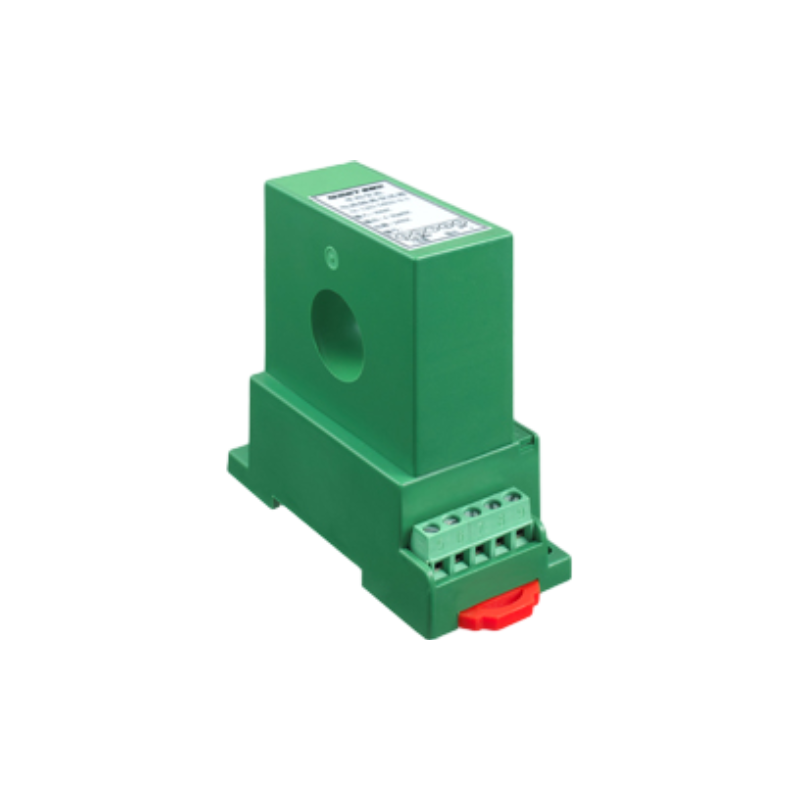

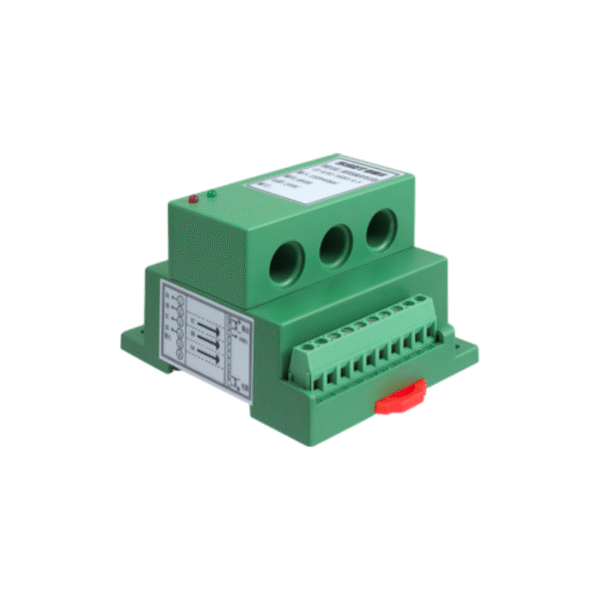

0~ 1000A Single-phase and Three-phase AC Current Transducer

Single-phase and Three-phase AC Current Transducers are designed for accurate measurement and conversion of AC current signals into standard analog signals (0-5V, 0-10V, 4-20mA) for real-time monitoring and control.

Contact us
Category:

Key Features & Advantages

  • Wide Measuring Range: Single-phase models: 0.1A to 3000A;Three-phase models: 1A to 200A
  • Multiple Output Options: Voltage: 0-5V / 0-10V;Current: 4-20mA
  • True RMS Measurement (for specific models)
  • Accuracy up to 0.2%; excellent long-term stability.
  • Digital Isolation with High-speed 24-bit A/D Conversion (three-phase models)
  • MODBUS RTU/RS-485 Communication (for selected models)

Application Fields:

  • Power Distribution Monitoring
  • Energy Management Systems
  • Industrial Equipment Monitoring
  • Renewable Energy Systems
  • Building Automation
  • Motor and Load Monitoring
  • HVAC Control
  • Data Center Power Management

Technical Parameters



Parameter Single-phase Models Three-phase Models
Measuring Range 0.1–3000A AC 1–200A AC
Output Signal 0-5V, 0-10V, 4-20mA 0-5V, 0-10V, 4-20mA
Accuracy 0.5% / 0.2% (depends on model) 0.2%
Frequency Response 20Hz–1kHz (response) / 20–600Hz (measure) 20Hz–1kHz (response) / 20–600Hz (measure)
Communication N/A or RS-485 MODBUS RTU (for digital models) RS-485 MODBUS RTU / RS-232 (select models)
Baud Rate N/A 9600 (default), up to 19.2Kbps (select models)
Isolation Voltage 2500V DC for 1 min 2500V DC for 1 min
Working Temperature -20℃ to +60℃ -20℃ to +60℃
Installation DIN rail / screw / split-core DIN rail / screw
A/D Conversion Speed N/A 100ms
Max. Number of RS-485 Nodes N/A 64
Protection 400V transient, ESD 400V transient, ESD
