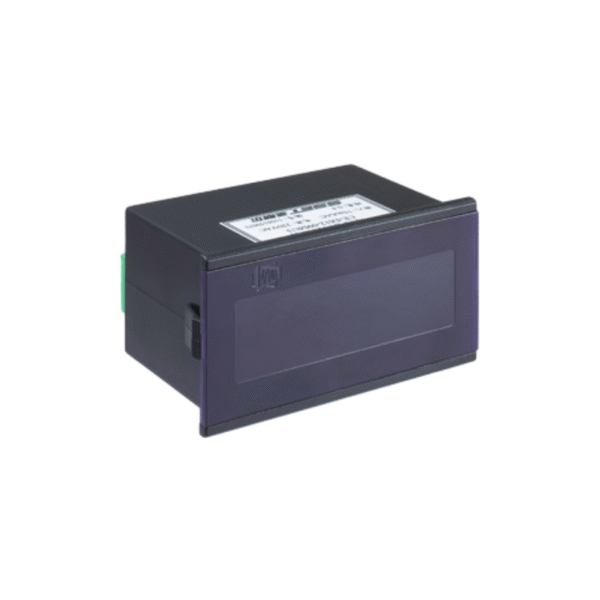

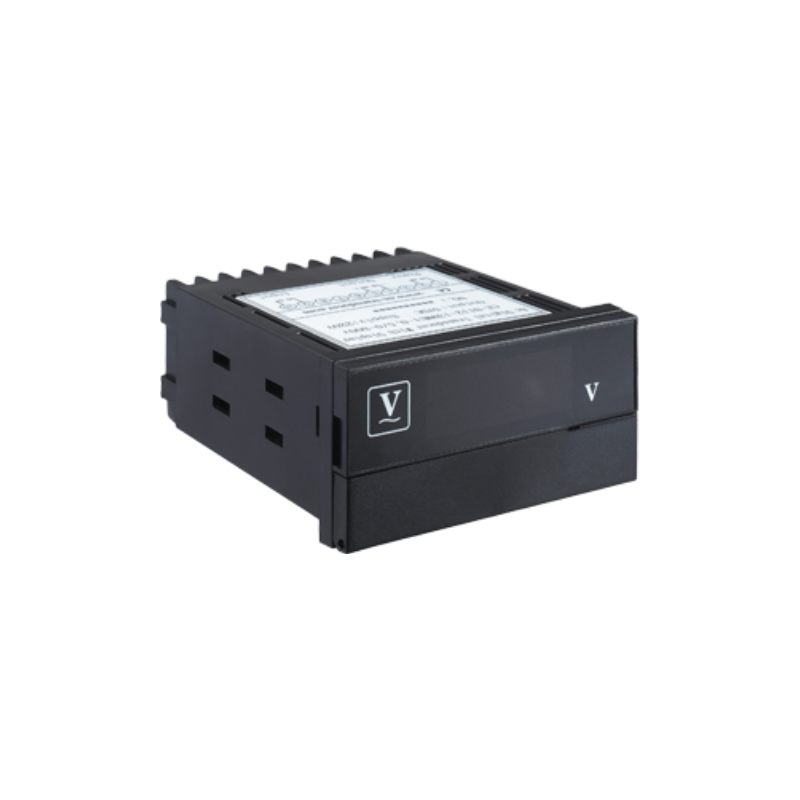

Features
- Dimensions: 96mm×48mm×112mm
- Installation hole size: 91mm×45mm
- Installation structure: cabinet panel installation, behind the wiring
Specification
| Parameter | Value |
| Input – Voltage | AC/DC 0 ~ 600V |
| Input – Current | AC/DC 0 ~ 5A |
| Analog Output | 0 – 5V (load＞2KΩ), 4 – 20mA (load＜300Ω) |
| Communication Output | RS485 (Baud rate: 9600bps; Data Format: 1 start bit, 8 data bits, 1 stop bit, no parity) |
| Switching Value Output | One group of terminals, capacity: 5A 250V |
| Set Functions | Switch (relay) control value, hysteresis, alarm mode, display variable ratio parameters |
| Power Supply | AC/DC 85～265V |
| Accuracy | 0.5 class |
| Response Time | < 320mS |
| Maximum Display | 9999 |
| Variable Ratio | 1 – 9999 |
| Power Consumption | ≤3.5VA |
| Distinguishability – Voltage | 0.1V |
| Distinguishability – Current | 0.001A |
| Isolation Voltage | Power/Input/Output ≥DC2.5KV/min.1mA |
| Surge Impact Immunity – Power Port | Three 2000V (L-N / 2Ω / integrated wave) |
| Surge Impact Immunity – Analog I/O Port | Three 2000V (L-N / 40Ω / integrated wave) |
| Input Overload Capacity | 20 times the nominal value of the measured current (maximum 500A), apply for 1 second, repeat 5 times, interval 300S |
| Isolation Resistance | ≥100MΩ |
| Operating Temperature | -20℃～+60℃ |
| Storage Temperature | -40℃～+70℃ |

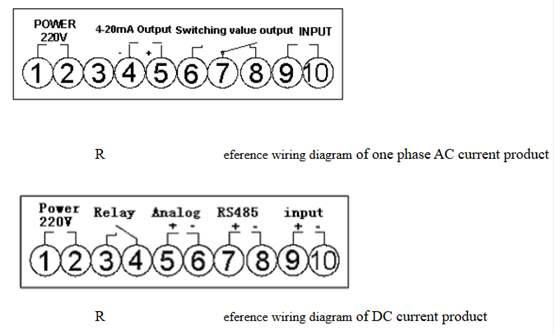

Connection
