AC DC Digital Isolation Current Transducer

This series of AC current transducers provides precise and reliable measurement for both single-phase and three-phase AC circuits. The devices convert AC current signals into standard DC analog signals or digital outputs. With options for split-core and solid-core structures, they support applications requiring continuous current monitoring, protection, and control. Models with True RMS measurement and MODBUS communication are also available for complex industrial systems.

Contact us
Category:

Features & Advantages



  • True RMS or average AC measurement.

  • Wide measurement ranges:

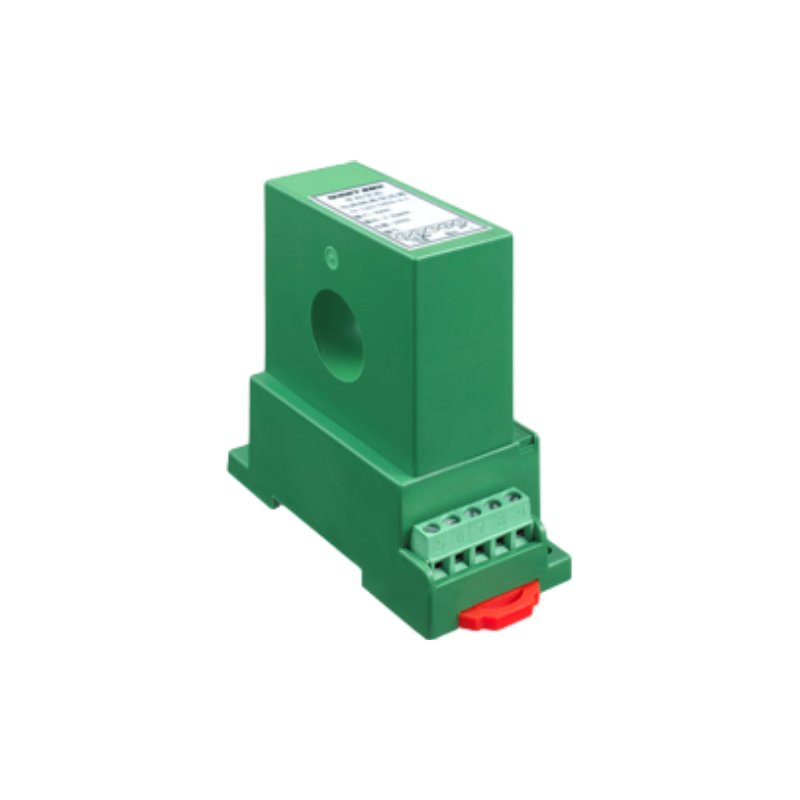

    • Single-phase: 0.1A to 3000A

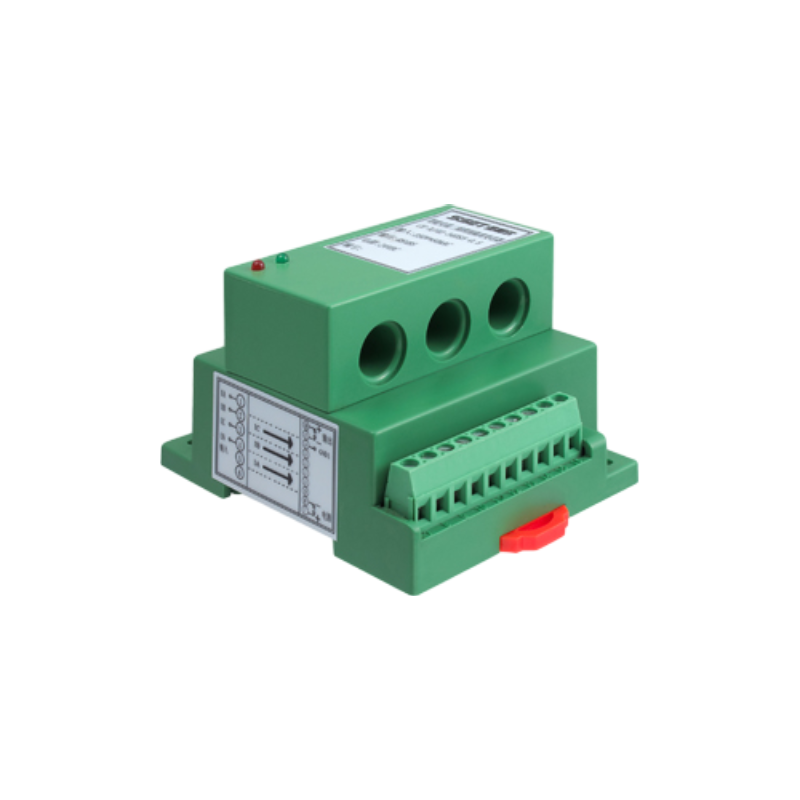

    • Three-phase: 1A to 200A

  • Multiple signal outputs: 0-5V, 0-10V, 4-20mA, or RS-485 Modbus.

  • DIN rail or screw mounting for flexible installation.

  • High-precision 24-bit A/D converter for digital models.

  • Split-core designs enable easy retrofit on existing systems.

  • Anti-interference processing for stable, accurate readings.

  • Industrial-grade isolation voltage up to 2500V.

  • Optional RS-232 or RS-422 communication.

  • Long-distance digital transmission via Modbus RTU.



Application Fields

  • Power system monitoring

  • Building energy management

  • Industrial automation

  • HVAC current monitoring

  • Data center energy supervision

  • Wind power and photovoltaic systems

  • Control panel current protection



Technical Specifications

Item Single-phase Models Three-phase Models
Measuring Range 0.1A~3000A 1A~200A
Output 0-5V, 0-10V, 4-20mA, RS-485 0-5V, 0-10V, 4-20mA, RS-485
Accuracy 0.2% 0.2%
Frequency Response 20Hz~1kHz 20Hz~1kHz
Communication (for digital) RS-485 / Modbus RTU, optional RS-232/422 RS-485 / Modbus RTU
Isolation Voltage 2500V DC for 1 min 2500V DC for 1 min
Working Temperature -20°C ~ +60°C -20°C ~ +60°C
A/D Speed (for digital type) 100ms 100ms
Bus Protection (RS-485 type) 400W transient voltage protection 400W transient voltage protection
