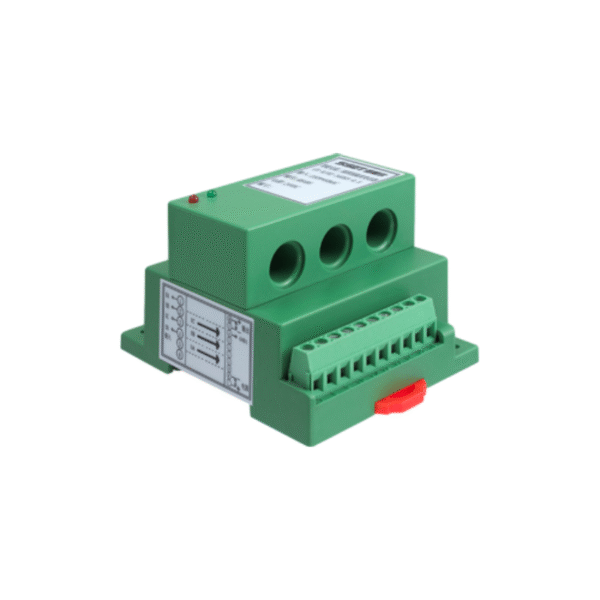

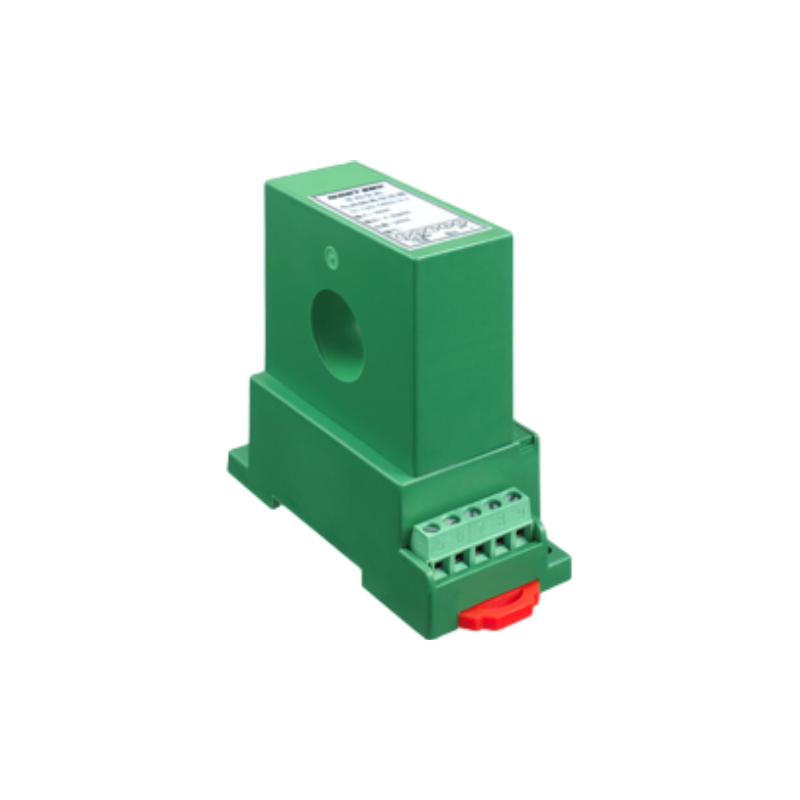

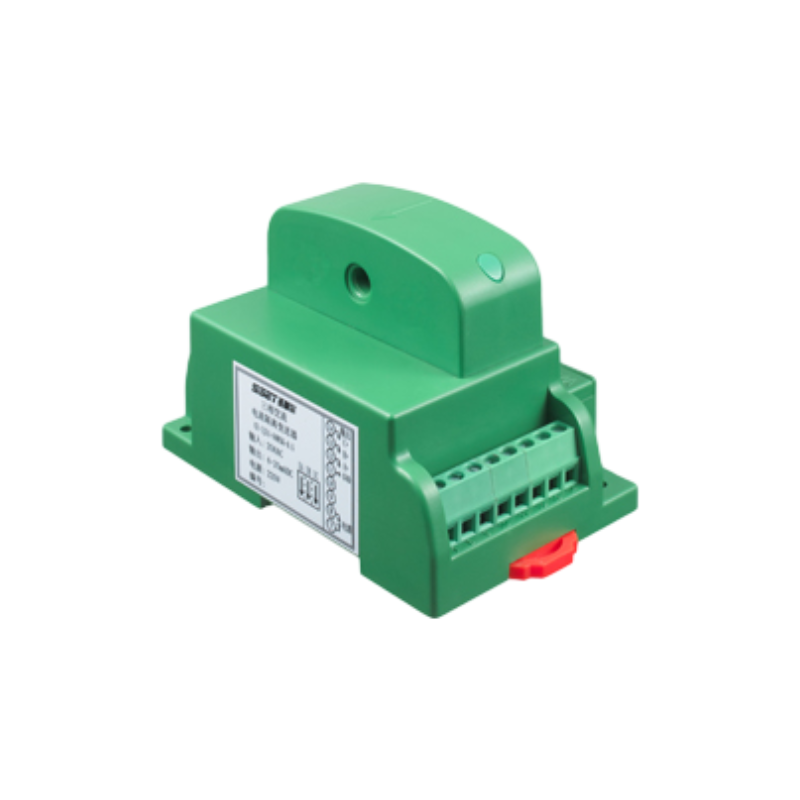

AC Three phase current digital transducer

This product is a 3-channel AC current acquisition and measurement digital isolation transducer. It can measure the 3-channel current of the AC circuit. U

Contact us
Category:

Features

  • Available with wide power supply: DC: 10-30V or 10-55V.
  • With odd parity, even parity, no parity, 2 stop bits and other communication methods are free to set.
  • Communication speed optional, the maximum communication speed to 115200 bps.
  • The intelligent transducer with the smallest size and wide current measurement range in the peer
  • Electroplating has a positive and negative cumulative, and power-down storage function.
  • With red and green light-emitting diode instructions function, the red light indicates the normal operation of the product (100mS flashing), the green light indicates the product communication.
  • High anti-interference ability, the input, output and power port to resist the surge voltage up to 2KV or more.

Specification

NO, Item Date Unite Remarks
1 Accuracy 0.2 %
Input range S3 case: 30A;

S5case: 200A;  N1case: 5A;

The maximum range for each specification
Frequency Frequency response: 20Hz-1KHz; Frequency   measurement: 20-600Hz
2 Baud rate 115.2K, 57.6K, 38.4K, 19.2K, 9600(default)   4800, 2400, 1200 bps Factory default communication format:   9600, N / 8/1, address 1; S5 type up to 19.2K;
Communication RS-485(twisted pair line) , RS-232C(treble   line, only for N style parts) RS422 optional
Parity None, Even, Odd, Space
Max. number of nodes 64 node Only for RS-485
Bus protection 400W transient voltage ESD protection and thermosnap
3 A/D SPEED 100 mS
4 Working temperature -20℃~+60℃
5 Isolation voltage Input/output:   2500V DC for 1 min

Input/power supply:2500V   for 1 min

Output/power supply:2500V   for 1 min



V



The double isolation part numbers, their   output and power supply are grounded together, there is only between the input and output   isolation voltage
6 Overload 2 x voltage span 1   sec. 10 for times with interval of 10 sec.

10 x current span   for 1 sec. 5 times with an interval of 300 sec (only for hole thru.   parts)

The input outside the linear range will   result in poor accuracy
7 MTBF >30000 hour
8 Auxiliary power supply +5V/+12V/+24V/+48V/ AC220V V 220VAC,DC only for N case parts
9 Power consumption ≤250mW(+12V),≤500mW(+24V) mW Power consumption depends on power supply   to be used
10 Temperature drift ≤300 ppm/℃  (-20℃~+60℃)
