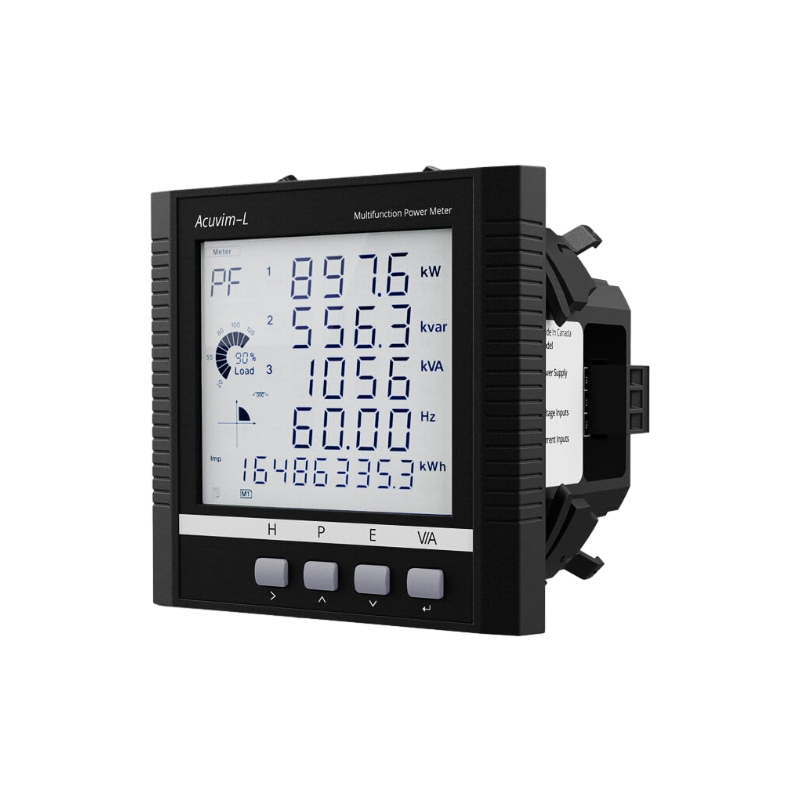

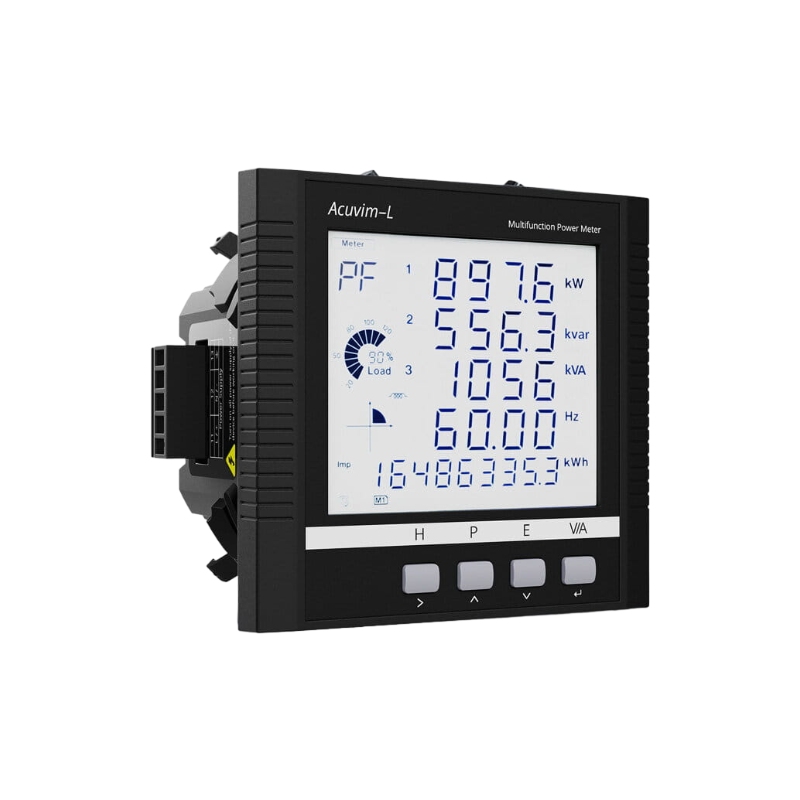

Acuvim L Multifunction Power Meter

Acuvim L Multifunction Power Meter is one of the Accuenergy multifunction power meter. This Accuenergy multifunction power meter can comprehensively measure current, power, voltage, energy, and power quality such as voltage and current imbalance, THD and individual harmonics, and other parameters in real-time. The Accuenergy Acuvim L Multifunction Power Meter, having two models CL and EL, is often used for power distribution systems or factory monitoring.

Contact us

Feature of Acuvim L Multifunction Power Meter

  • Real-time and true RMS measurements
  • High-strength UL 94V-0 plastic enclosure for this Acuvim L multifunction power meter
  • Monitor power and energy parameters across all four quadrants
  • Real-time Monitor individual harmonics voltage and current
  • Real-time and true RMS measurements
  • Supporting communication and IO module options
  • Four function keys are used to interface with the meter
  • Din rail mounting & panel mounting optional
  • 333mv 1-5A current input options
  • Data Record function
  • Large, backlit LCD screen
  • High Accuracy class 0.2

Application of Acuvim L Multifunction Power Meter

  • Measuring and reconciling energy transfer
  • Power plants, grid substations, renewable energy sources, feeder monitoring, wind turbines, and commercial and industrial spaces
  • Energy exchange is being tracked online at several interface points.
  • Integration of systems and automation
  • Automation of factories and processes
  • With the Rogowski coil, retrofit applications up to 4000A can be served.
  • Various field add-on modules that serve a variety of applications, including analog output, control inputs, BACnet, Profinet, Modbus, and IEC 61850 protocol support
  • numerous sectors, including mines, hospitals, shopping centers, computer centers, and oil and gas.
  • Switchgear: LV, MV, and HV

Specification of Acuvim L Multifunction Power Meter

Acuvim CL
Acuvim EL
Built-In Communications Modbus-RTU, BACnet MS/TP Modbus-RTU, BACnet MS/TP
Metering Voltage (V),
Current (Amp),
Power (kW)
Voltage (V),
Current (Amp),
Power (kW)
Energy & Demand
Accuracy ANSI C12.20 class 0.5
IEC62053-22 class 0.5s
ANSI C12.20 class 0.2
IEC62053-22 class 0.2s
Power Quality
Harmonics 2nd to 31st 2nd to 63rd
Expansion Modules
Panel Mount Option
DIN rail Transducer Option
