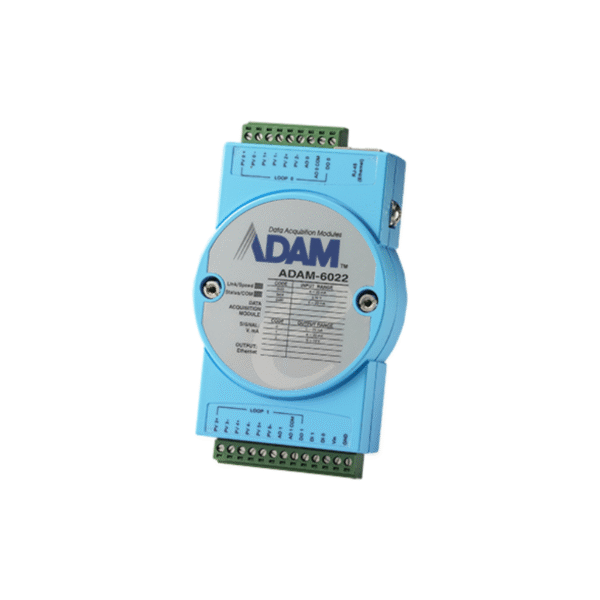

Feature
- 2 loop PID control algorithms built in one package
- 3 analog input/1 analog output/1 digital input/1digital alarm output for 1 PID loop
- Support multiple analog I/O ranges: 0 ~ 10 VDC, 0 ~ 20 mA and 4 ~ 20 mA
- Support heating/cooling (direct/reverse) action mode
- Support loop open/close (PID disable/enable) and analog output manual control modes
- Watchdog timer to recover the system
- Built-in web server
Specification
| Parameter | Value |
| Analog Input – Channels | 6 |
| Analog Input – Input Range | ±10 V, 0~20 mA, 4~20 mA |
| Analog Input – Input Type | V, mA |
| Analog Input – Resolution (Bits) | 16-bit |
| Analog Input – Sampling Rates (S/s) | 10 S/s (sum) |
| Analog Output – Channels | 2 |
| Analog Output – Output Ranges | 0~10 V, 0~20 mA, 4~20 mA |
| Analog Output – Output Type | V, mA |
| Analog Output – Resolution | 12-bit |
| Communications – Interface | Ethernet |
| Environment – Isolation Voltage | 2,000 VDC |
| Environment – Operating Temperature | -10~50 °C (14~122 °F) |
| General – Connectors | 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal |
| General – Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP |
| Isolated Digital Input – Channels | 2 |
| Isolated Digital Input – Input Voltage | Dry Contact: Logic level 0: close to GND; Logic level 1: open Wet Contact: Logic level 1: 10~30 VDC; Logic level 0: 0~3 VDC |
| Isolated Digital Output – Channels | 2 |
| Isolated Digital Output – Output Type | Sink |
| Isolated Digital Output – Output Voltage | 0~30 VDC |
| Isolated Digital Output – Sink Current | 100 mA max./channel |
| Power Requirements – Input Voltage | 10~30 VDC |
