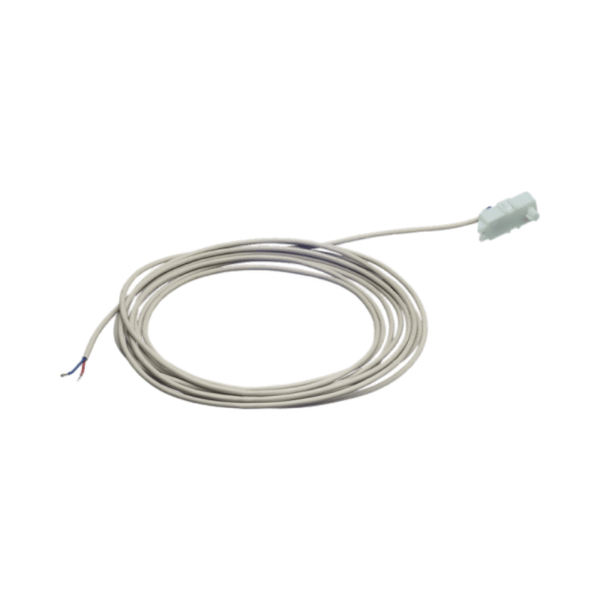

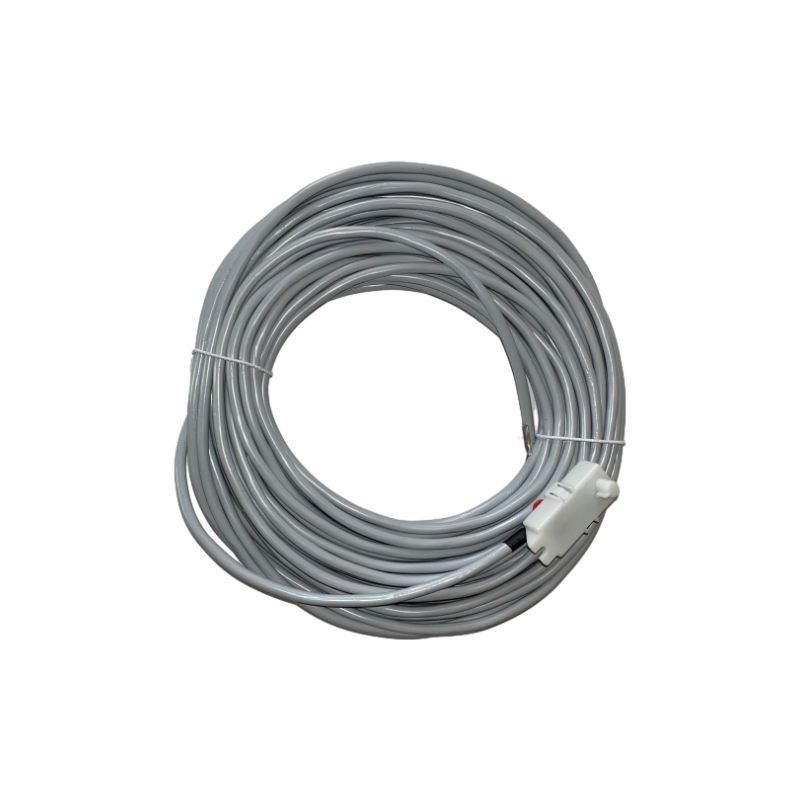

Feature:
- Fast response time: The detection time is less than 1 millisecond, which can quickly identify arc events and activate the protection mechanism in time.
- Flexible installation: The sensor can be installed through a 10 mm hole on the switch cabinet wall and fixed with a 4 mm self-tapping screw. It is suitable for open spaces such as busbar compartments. It is recommended to install a sensor every 4 meters to ensure coverage.
- Cable characteristics: The 6-meter shielded cable design enhances the ability to resist electromagnetic interference and is suitable for applications in complex electromagnetic environments
Specification
| Item | Value |
|---|---|
| Product Model | VA1DA-6S |
| Product Type | Arc Point Sensor |
| Compatible Series | Easergy P3 Protection Relays |
| Spectral Response Range | 400–1100 nm (Visible to Near Infrared) |
| Cable Type | Shielded Cable |
| Cable Length | 6 meters |
| Dimensions (W × H × D) | 55 × 25 × 14 mm |
| Net Weight | 0.3 kg |
| Operating Temperature | -25°C to +70°C |
| Pollution Degree | 2 |
| Mounting Method | Installed via 10 mm panel hole, fixed with 4 mm self-tapping screws |
| Recommended Spacing | One sensor every 4 meters to ensure proper coverage |
| Application Environment | Medium and high-voltage switchgear, compact substations, wind turbine nacelles |
| Compatible Devices | Easergy P3 Series Protection Relays |
| Country of Origin | Finland |
