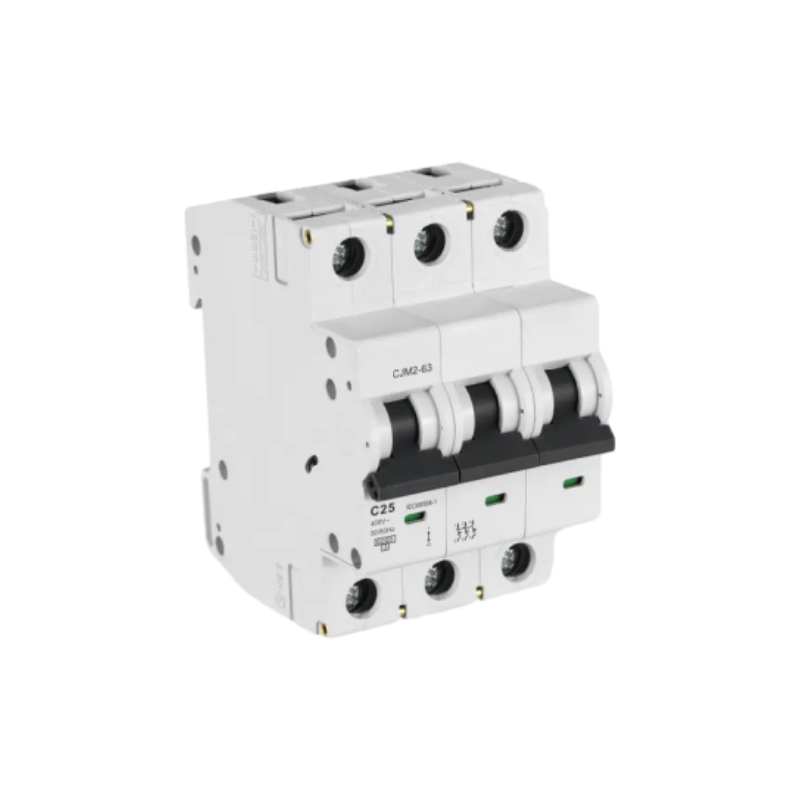

Feature
- High short-short capacity 10KA
- Designed to protect circuit carrying big current up to 63A
- Contact position indication
- Used as main switch in household and similar installation
Specification
| Standard | IEC/EN 60898-1 | ||||
| Pole No | 1P,1P+N, 2P, 3P,3P+N,4P | ||||
| Rated voltage | AC 230V/400V | ||||
| Rated Current(A) | 1A,2A,3A,4A,6A,10A,16A,20A,25A,32A,40A,50A,63A | ||||
| Tripping curve | B, C, D | ||||
| Rated short-circuit capacity(lcn) | 10000A | ||||
| Rated frequency | 50/60Hz | ||||
| Rated impulse withstand voltage Uimp | 4kV | ||||
| Connection terminal | Pillar terminal with clamp | ||||
| Mechanical life | 20,000 Cycles | ||||
| Electrical life | 4000 Cycles | ||||
| Protection degree | IP20 | ||||
| Connection capacity | Flexible conductor 35mm² | ||||
| Rigid conductor 50mm² | |||||
| Installation | On symmetrical DIN rail 35mm | ||||
| Panel mounting |
Overload Current Protection Characteristics
| Test | Tripping Type | Test Current | Initial State | Tripping timeor Non-tripping Time Provisior | |
| a | Time-delay | 1.13In | Cold | t≤1h(In≤63A) t≤2h(ln>63A) |
No Tripping |
| b | Time-delay | 1.45In | After test a | t<1h(In≤63A) t<2h(In>63A) |
Tripping |
| c | Time-delay | 2.55In | Cold | 1s<t<60s(In≤63A) 1s<t<120s(In>63A) |
Tripping |
| d | B curve | 3In | Cold | t≤0.1s | No Tripping |
| C curve | 5In | Cold | t≤0.1s | No Tripping | |
| D curve | 10In | Cold | t≤0.1s | No Tripping | |
| e | B curve | 5In | Cold | t≤0.1s | Tripping |
| C curve | 10In | Cold | t≤0.1s | Tripping | |
| D curve | 20In | Cold | t≤0.1s | Tripping | |
