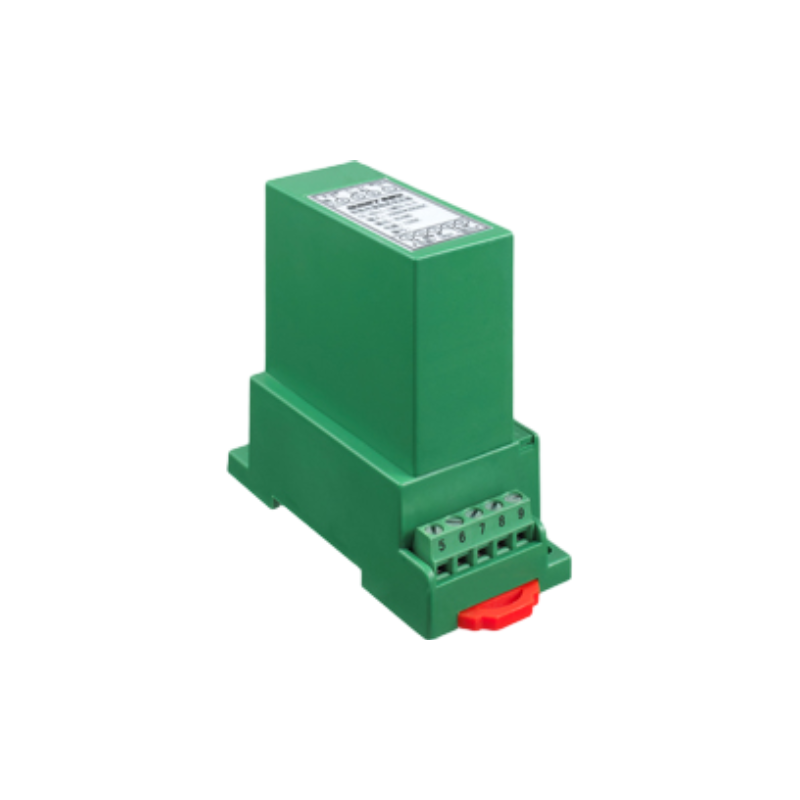

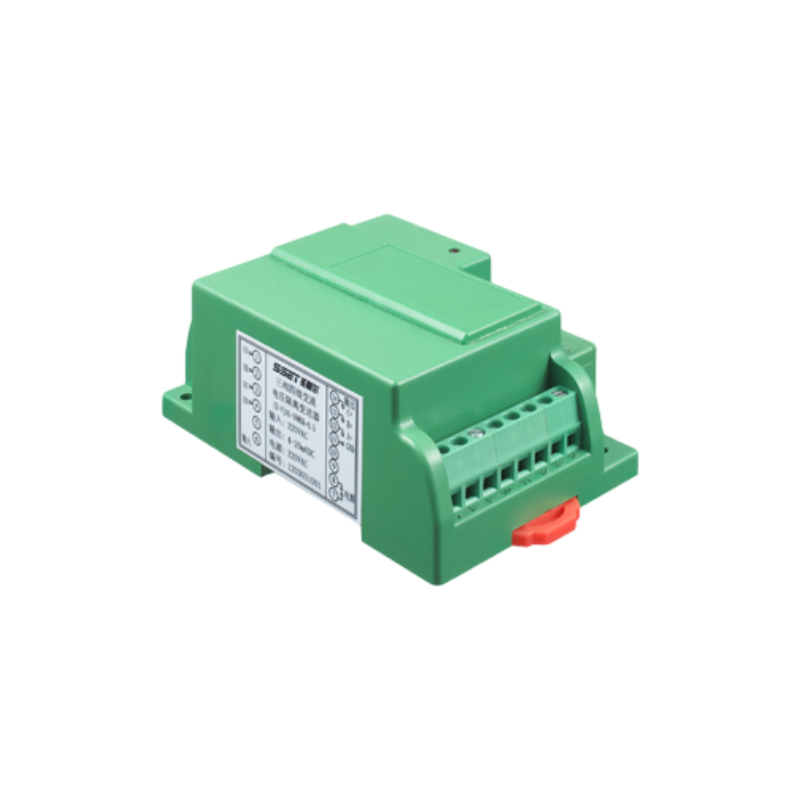

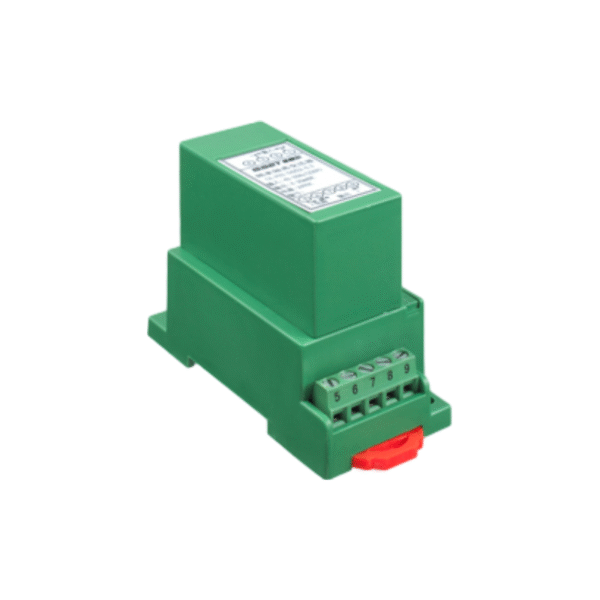

High anti-interference DC voltage transducer

This product is a digital isolation transducer for DC voltage acquisition and measurement . It can be used to measure the voltage in DC circuit. The ratio dynamic range can be up to 1000: 1 with a high-precision 24-bit dedicated AD chip. By using the resistive voltage-dividing and resistance sampling measurement principle, it has high accuracy, good stability and high communication speed, the completely isolated processing technology is with anti-interference ability.

Contact us
Category:

Feature

  • Available with wide power supply: DC: 10-30V or 10-55V or AC/DC: 85-265V.
  • With odd parity, even parity, no parity, 2 stop bits and other communication methods are free to set.
  • Communication speed optional, the maximum communication speed to 115200 bps.
  • The intelligent transducer with the smallest size and wide current measurement range in the peer.
  • Electroplating has a positive and negative cumulative function, and power-down storage function.
  • With red and green light-emitting diode instructions function, the red light indicates the normal operation of the product (100mS flashing), the green light indicates the product communication.
  • High anti-interference ability, the input, output and power port to resist the surge voltage up to 2KV or more.



Specification

NO, Item Date Unite Remarks
1 Accuracy 0.2 %
Input range MS3 case: 500V; The maximum range for each specification
2 Baud rate 115.2K, 57.6K, 38.4K, 19.2K, 9600(default)   4800, 2400, 1200 bps Factory default communication format:   9600, N / 8/1, address 1; S5 type up to 19.2K;
Communication RS-485(twisted pair line) , RS-232C(treble   line, only for N style parts) RS422 optional
Parity None, Even, Odd, Space
Max. number of nodes 64 Node Only for RS-485
Bus protection 400W transient voltage ESD protection and thermosnap
3 A/D SPEED 100 mS
4 Working temperature -20℃~+60℃
5 Isolation voltage Input/output:   2500V DC for 1 min

Input/power supply: 2500V for 1 min

Output/power supply: 2500V for 1 min



V



 The double isolation part numbers, their   output and power supply are grounded together, there is only between the input and output   isolation voltage
6 Overload 2 x voltage span 1   sec. 10 for times with interval of 10 sec.

10 x current span   for 1 sec. 5 times with an interval of 300 sec (only for hole thru.   parts)

 The input outside the linear range will   result in poor accuracy
7 MTBF >30000 Hour
8 Auxiliary power supply +5V/+12V/+24V/+48V/ AC220V V 220VAC,DC only for N case parts
9 Power consumption ≤250mW(+12V)，≤500mW(+24V) mW Power consumption depends on power supply   to be used
10 Temperature drift ≤300 ppm/℃ 　（-20℃~+60℃）
