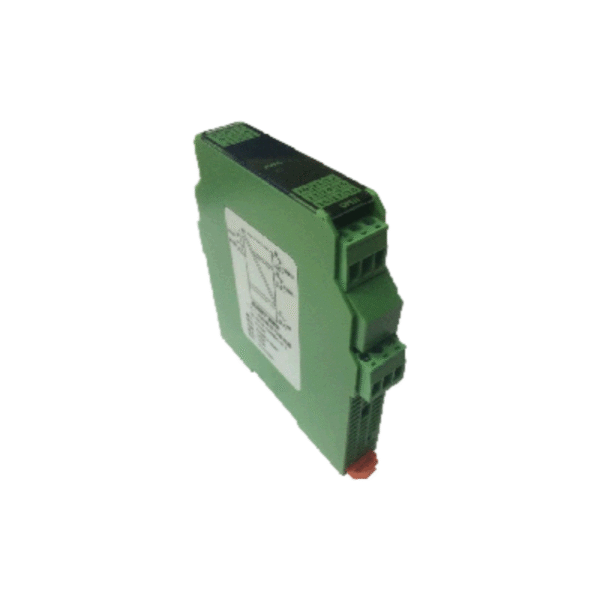

Four-way standard 3 phase voltage transducer

This series of products measuring the DC input signal, while isolated output four-way standard DC signal of 0 ~ 20mA or 0 ~ 5V or 4 ~ 20mA or 1 ~ 5V.

Contact us
Category:

Feature

  • It can switch the analog signal output to 0-20mA (0-5V) or 4-20mA (1-5V) output through the internal DIP switch. The four-way output signals are independent of each other.;
  • The internal is used digital adjustment, no potentiometer adjustment technology, the advantages of using the technical: product debugging convenience and product output has no influence from external mechanical vibration, product performance and stability.
  • The use of advanced digital-analog conversion circuit for DA conversion with stability output, low temperature drift.

Data Sheet

Parameter Value
Test Conditions Auxiliary power: +24 V, Room temperature: 25 ℃
Input Range 0 – 20mA/4 – 20mA/0 – 5A/0 – 10V/1 – 10V/0 – 500V or Custom Input Type (Voltage Max 500V, Current Max 5A)
Output 0 – 5V, 1 – 5V, 0 – 10V, 2.5±2.5V, 0 – 20mA, 4 – 20mA, 10±10mA
Power Supply +24VDC (-15%~+20%)
Accuracy 0.2 class
Load Capacity Current output ≤500Ω; Voltage output ≥1kΩ
Temperature Drift ≤100ppm/℃
Isolation Voltage 2500VDC
Response Time ≤200 mS
Rated Power Consumption <3W
Output Ripple ≤10mV
Frequency Response Range None
Surge Immunity – Power Port Two ±1KV (L-N/2Ω/ integrated wave)
Surge Immunity – Output Port Three ±2KV (L-N/40Ω/integrated wave)
Impulse Immunity – Input/Power Port ± 2KV
Impulse Immunity – Analog I/O Port ± 1KV
Input Overload Capacity 2 times nominal value for the measured (apply a second, repeat 10 times, interval 10S)
Weight 144g
Size LWH = 1159618mm
Operating Temperature 20~70℃
Operating Humidity ≤95% (no dew)
Storage Temperature -40~+70℃
