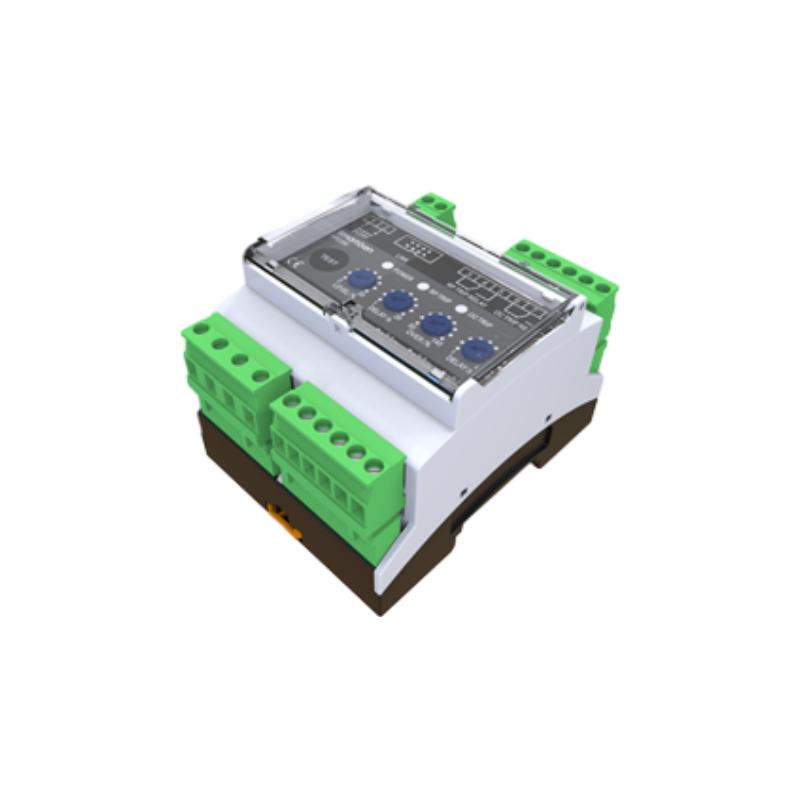

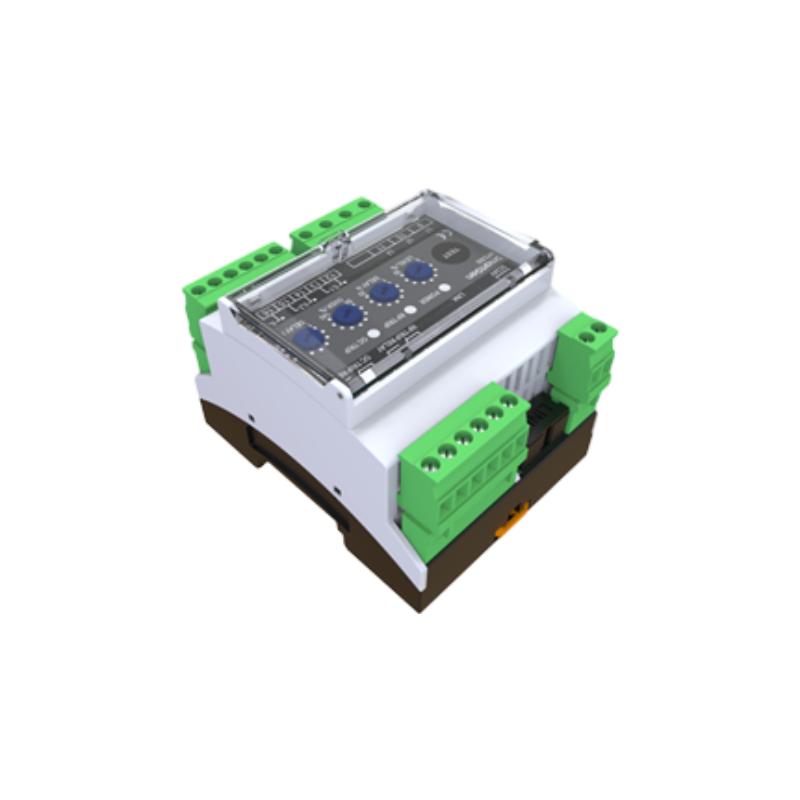

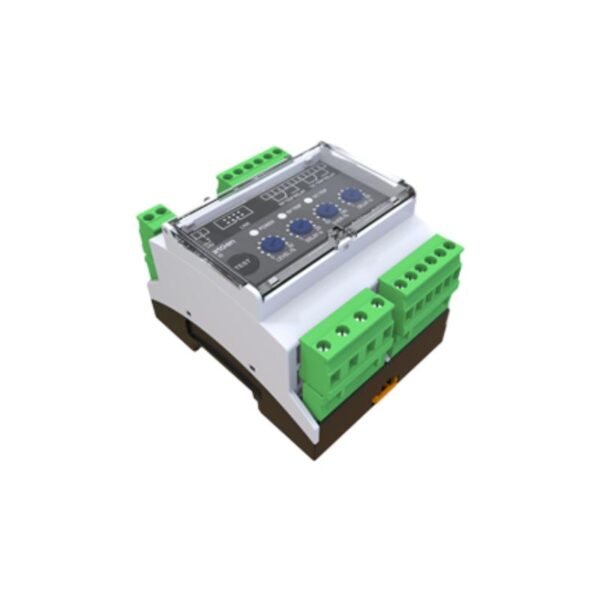

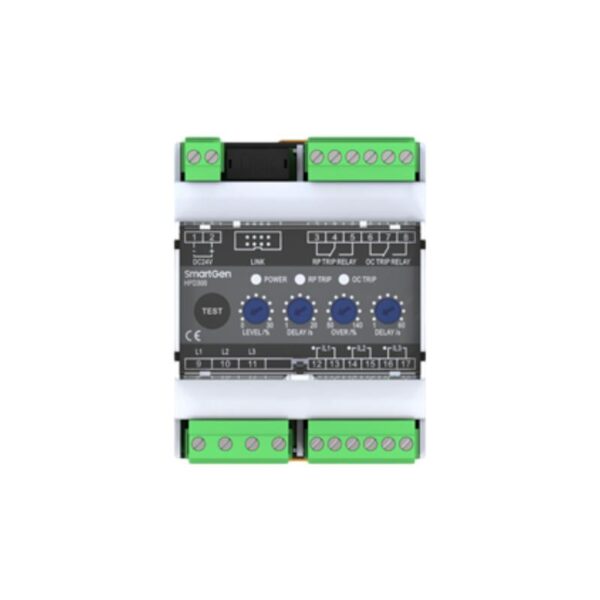

HPD300 generator reverse power protection

HPD300 reverse power protection relay is widely used in marine genset field and land genset field. The power direction, instead of flowing predominantly generator to Bus as usual, flows backward to generator from current system when generator lost excitation or other failure occurs. That is to say, generator works as electromotors. HPD300 reverse power protection relay is to avoid the above situation and provide protection when over power situation occurs

Contact us
Category:

Feature

  • Adjustable potentiometer allows for set value adjusting and delay value setting.
  • 2 relay output;
  • One test button, test reverse power, over current and indicator.
  • Widely power supply range DC(8~35)V, suitable to different starting battery voltage environment;
  • 35mm guide rail mounting;
  • Modular design, pluggable terminal, compact structure with easy installation.
  • Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with frequency 50/60/400Hz;

Specification

Feature Detail
Panel Silicone Rubber
Comm. Ports LINK
Digital Outputs (DO) 2
AC System 30V – 620V(ph – ph)
Operating Temperature (-25 ~ +70)°C
Overcurrent Protection Supported
Reverse Power Protection Supported
Potential Transformer Supported
Adjustable Potentiometer Supported
Test Button Supported
AC Frequency 50/60Hz/400Hz
Installation 35mm DIN rail
