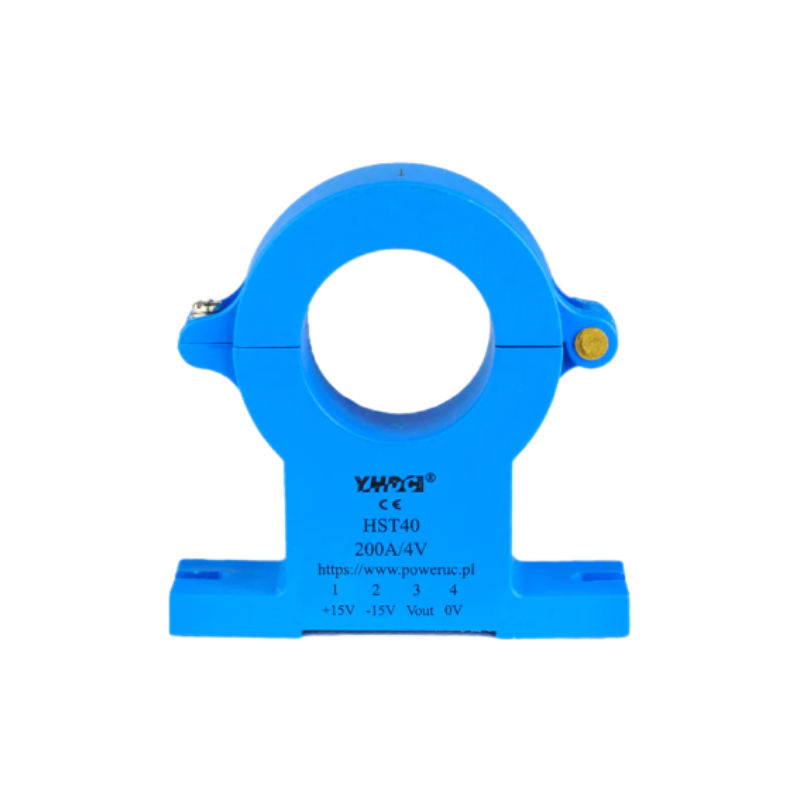

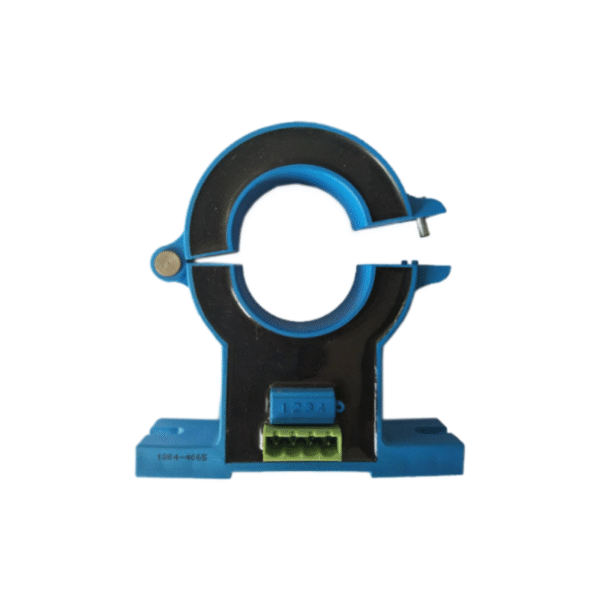

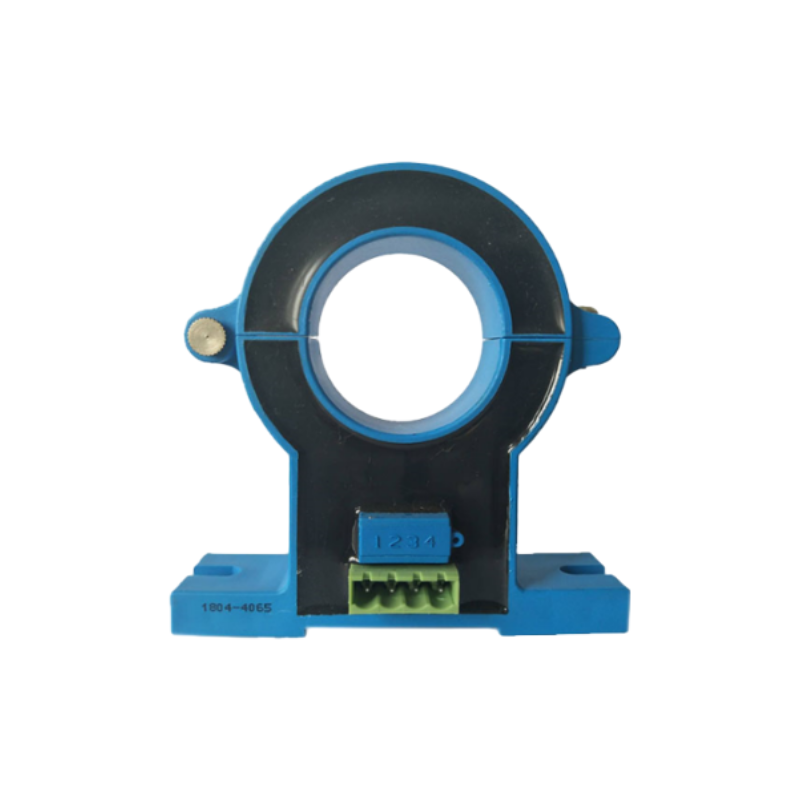

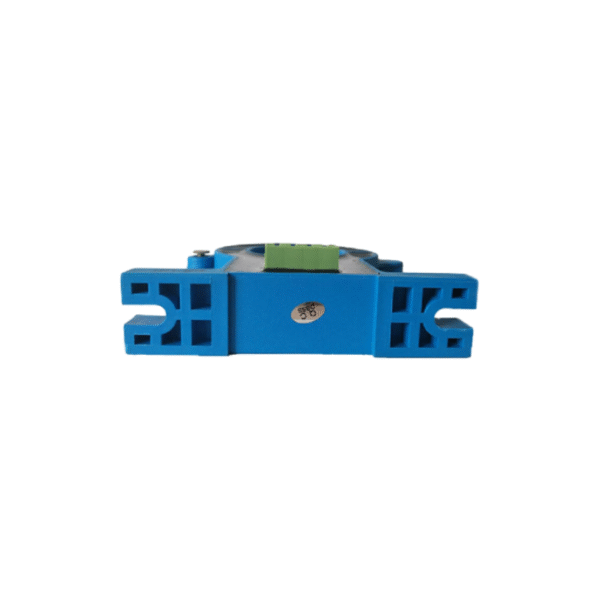

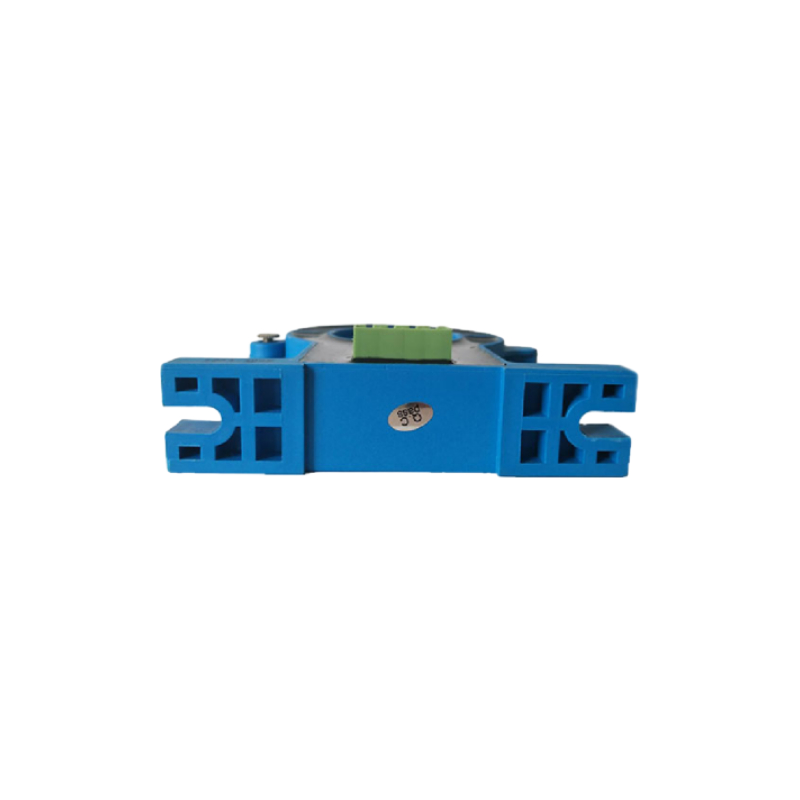

Product features
- Light weight
- Low power consumption
- Good linearity
- No insertion loss
- Fast response time
- Good anti-interference ability
Technical index:
Flame resistance：UL94-V0
Operating temperature：-10～+70℃
Storage temperature：-25～+70℃
Bandwidth：DC～25kHz
Dielectric strength：2.5KV 50Hz 1min

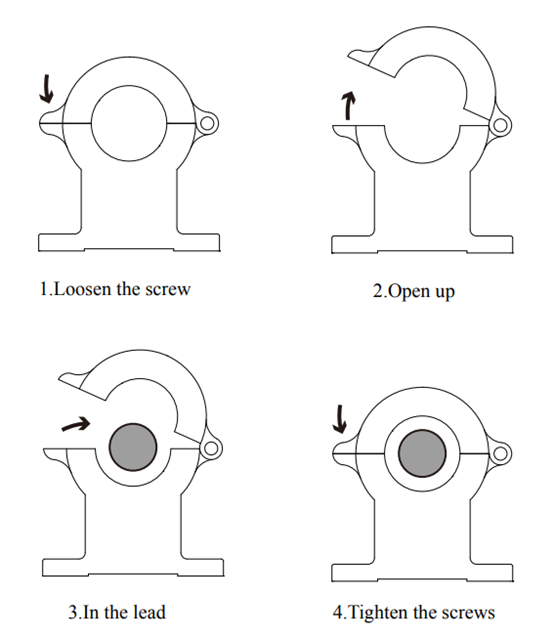

Installation diagram
Specification
| Parameter | Values | Note |
| Rated input | ±200A, ±500A, ±800A, ±1000A, ±1500A, ±2000A | Standard input |
| Input measurement range | ±240A, ±600A, ±960A, ±1200A, ±1800A, ±2400A | Default is 1.2 times of rated input |
| Rated output | ±4V | Standard output |
| Accuracy | 1% | I = IPN, I = 0 ~ ±IPN |
| Linearity | 1% | – |
| Supply voltage | ±12V / ±15V | One or the other. Supply voltage range = ±5% |
| Current consumption | ≤±16mA | Reference will be subject to the measured |
| Load impedance | ≥10KΩ | Collection port impedance while lower voltage affect accuracy |
| Zero offset voltage | ≤±15mV | TA = 25°C |
| Response time | ≤5 μs | Reference will be subject to the measured |
| Weight | 306g | Reference will be subject to the measured |
| Operation temperature | -10 ~ +70°C | – |
| Storage temperature | -25 ~ +70°C | – |
| Band width | DC ~ 25KHz | Factory test according to DC |
| Dielectric strength | 2.5KV 50Hz 1min | – |
