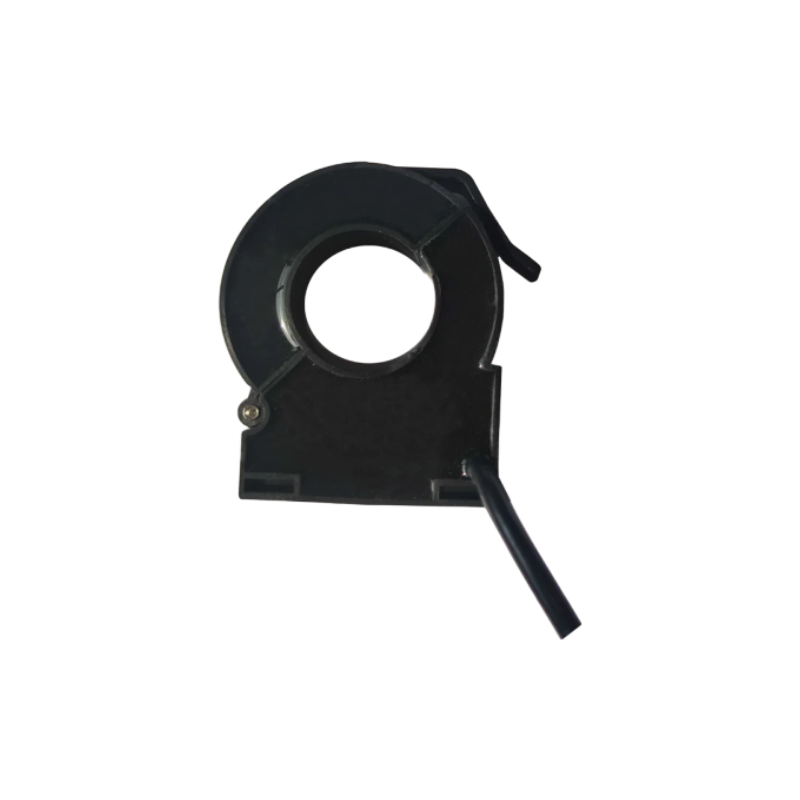

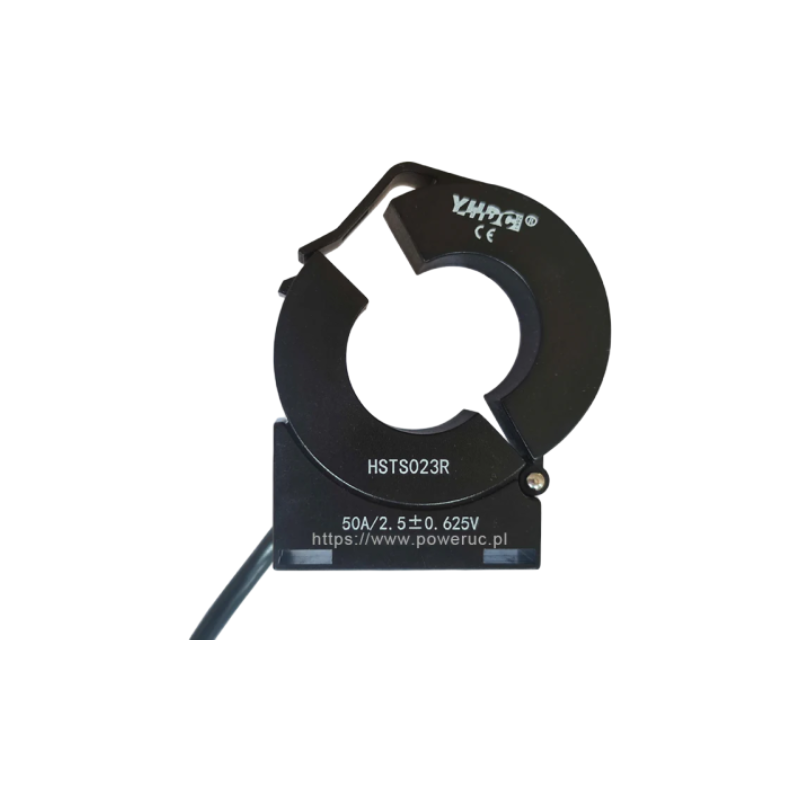

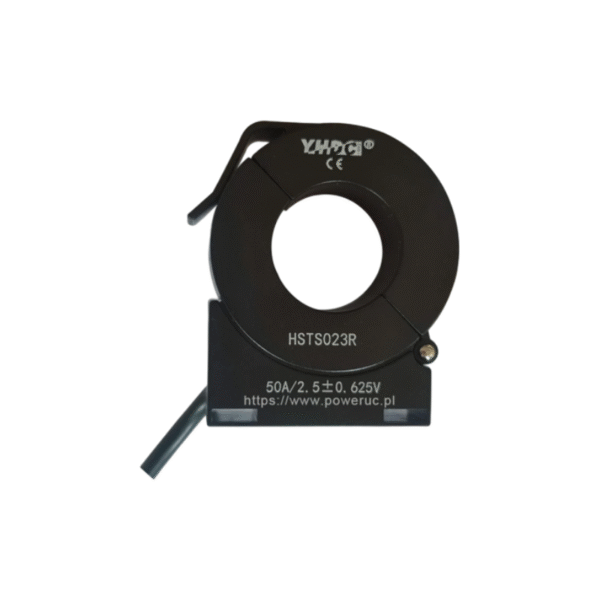

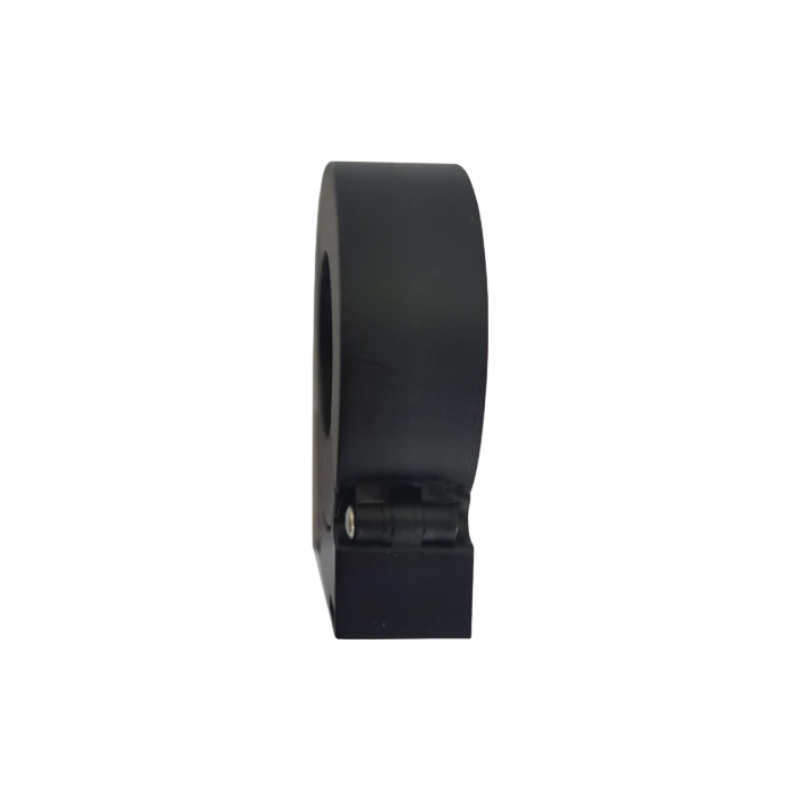

Product application
- Railway
- Metallurgical
- Welding machine
- Robot
- Motor
- Inverter power supply
- Variable frequency governor
- Uninterrupted power supply and communication power supply
Specification
| Parameter | Values | Note |
| Rated input | ±50A, ±100A, ±200A, ±300A, ±400A, ±500A, ±600A | Standard input |
| Input measurement range | ±60A, ±120A, ±240A, ±360A, ±480A, ±600A, ±720A | Default is 1.2 times of rated input |
| Rated output | 2.5V±0.625V | Standard output |
| Accuracy | 1% | I = IPN, I = 0 ~ ±IPN |
| Linearity | 1% | – |
| Supply voltage | +5V | Supply voltage range = ±5% |
| Current consumption | ≤16mA | Reference will be subject to the measured |
| Load impedance | ≥10KΩ | Collection port impedance while lower voltage affect accuracy |
| Zero offset voltage | ≤±15mV | TA = 25°C |
| Response time | ≤5 μs | Reference will be subject to the measured |
| Weight | 84g | Reference will be subject to the measured |
| Operation temperature | -10 ~ +70°C | – |
| Storage temperature | -25 ~ +70°C | – |
| Band width | DC ~ 25KHz | Factory test according to DC |
| Dielectric strength | 2.5KV 50Hz 1min | – |

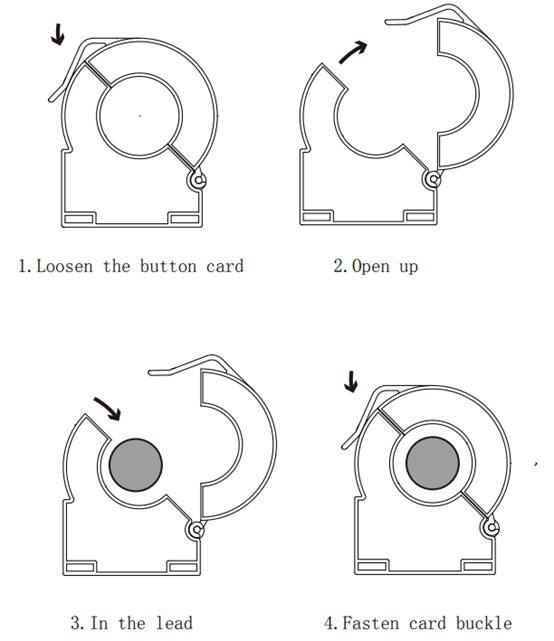

Installation diagram
