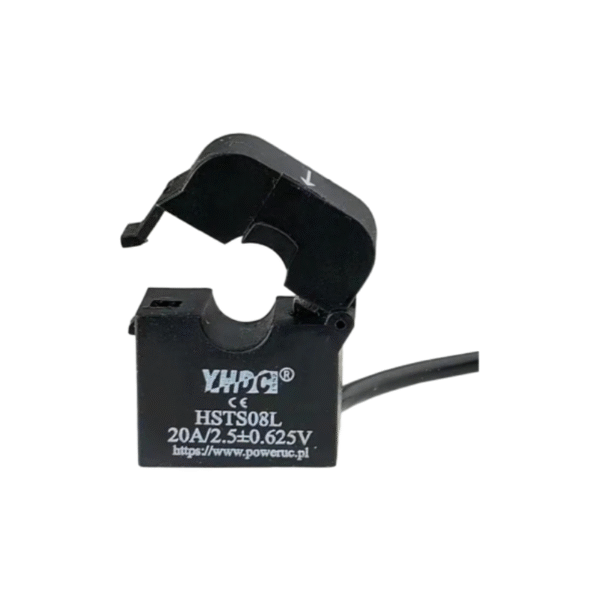

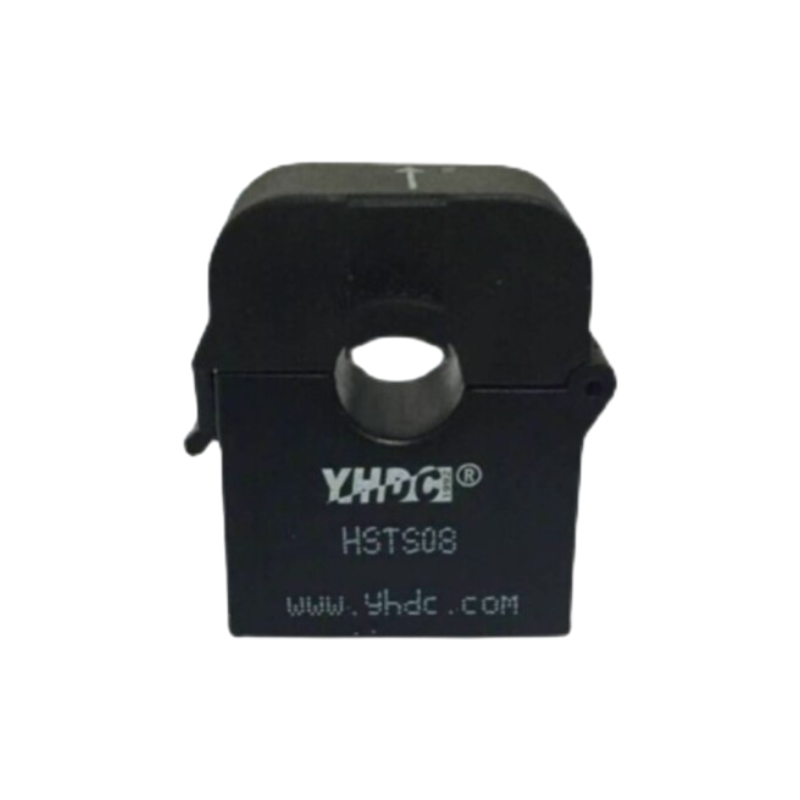

Feature
- Circular hole, suspended mounting, lead wire output;
- The faulty connection can lead to product damage, detection DC, AC, pulse current;
- The primary detection current are linearly related to output, and the output signal can be directly entered into the automatic control equipment or PLC port
Technical index:
- Flame resistance：UL94-V0
- Operating temperature：-25～+70℃
- Storage temperature：-25～+70℃
- Dielectric strength：2.5KV 50Hz 1min
Specification
| Parameter | Value | Unit |
| Rated input | ±10, ±20 | A |
| Input measured range | ±10, ±20 | A |
| Rated output | 2.5±0.625 | V |
| Accuracy | 1 | % |
| Linearity | 0.2 | % |
| Supply voltage(±5%) | +5 | V |
| Current consumption | ≤12 mA + Is | – |
| Load impedance | ≥10K | Ω |
| Zero offset TA=25°C | ≤±15 | mV |
| Response time | ≤1 | μs |
| Band width | DC | – |
| Weight | 22 | g |

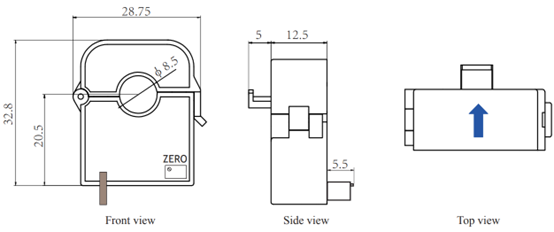

Dimensions
