Features
- Pressure clamp connectors
- Dynamic heating up
- Wide voltage range
- Energy saving
- Clip fixing, Quick installation
Technical Data

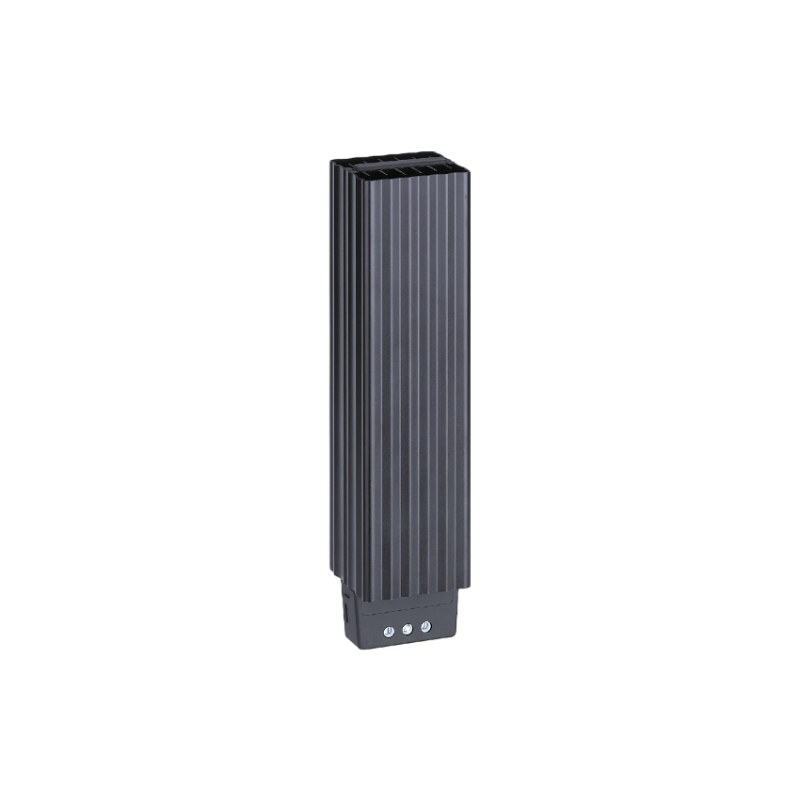

| NTL 151SB | |
| Operating voltage | 120-260V AC/DC or 12V DC or 24V DC or 48V DC¹ (min. 110 V, max. 265 V) |
| Heating element | PTC resistor – temperature limiting |
| Heater body | extruded aluminium profile, anodised |
| Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and
rigid wire 0.5- 2.5mm² |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up, connection on bottom) |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |
| Accessoires | screw fixing |
| Note | other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
| Art. No. | Heating capacity² | Length (L) | Weight (approx.) |
| 860391 | 15W | 65mm | 0.25kg |
| 860392 | 30W | 65mm | 0.25kg |
| 860393 | 45W | 65mm | 0.25kg |
| 860394 | 50W | 80mm | 0.35kg |
| 860395 | 60W | 140mm | 0.35kg |
| 860396 | 75W | 140mm | 0.45kg |
| 860397 | 100W | 140mm | 0.45kg |
| 860398 | 150W | 220mm | 0.65kg |
² at +20°C (+68°F) ambient temperature
