Features
- Pressure clamp connectors
- Dynamic heating up
- Wide voltage range
- Energy saving
- Clip fixing, Quick installation
Technical Data

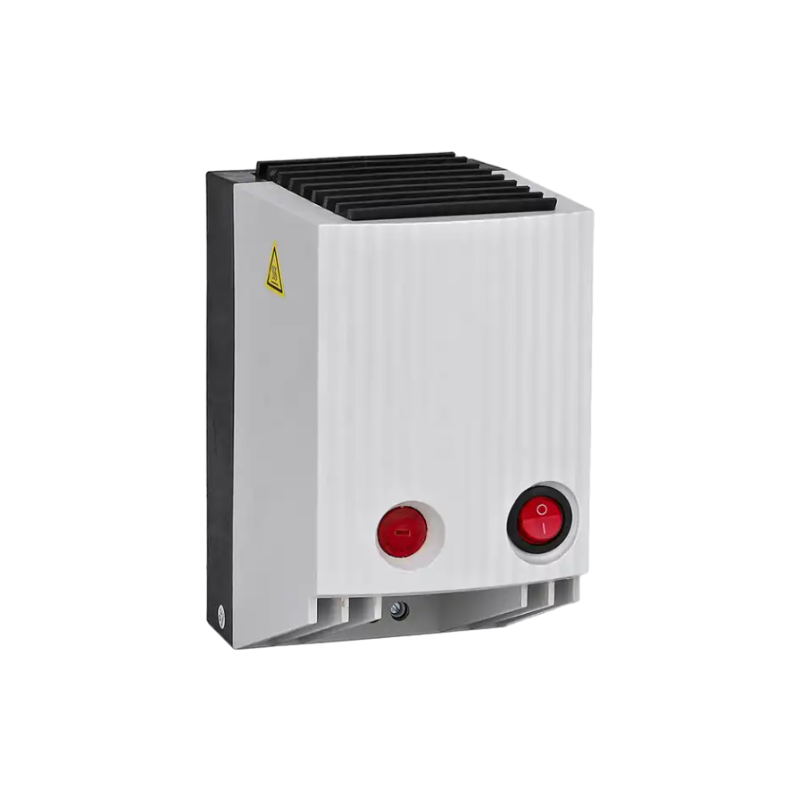

| NTL 650 | |
| Operating voltage | 230VAC or 120VAC |
| Heating element | PTC resistor – temperature limiting |
| Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
| Axial fan, ball bearing | airflow see table service life 50,000h at +25°C (+77°F) |
| Connection | 2-pole clamp 2.5mm², clamping torque 0.8Nm max |
| Casing | plastic according to UL94 V-0, light grey |
| With Thermostat | with thermostat to control temperature for heater |
| With on/off switch | can manual power on and off |

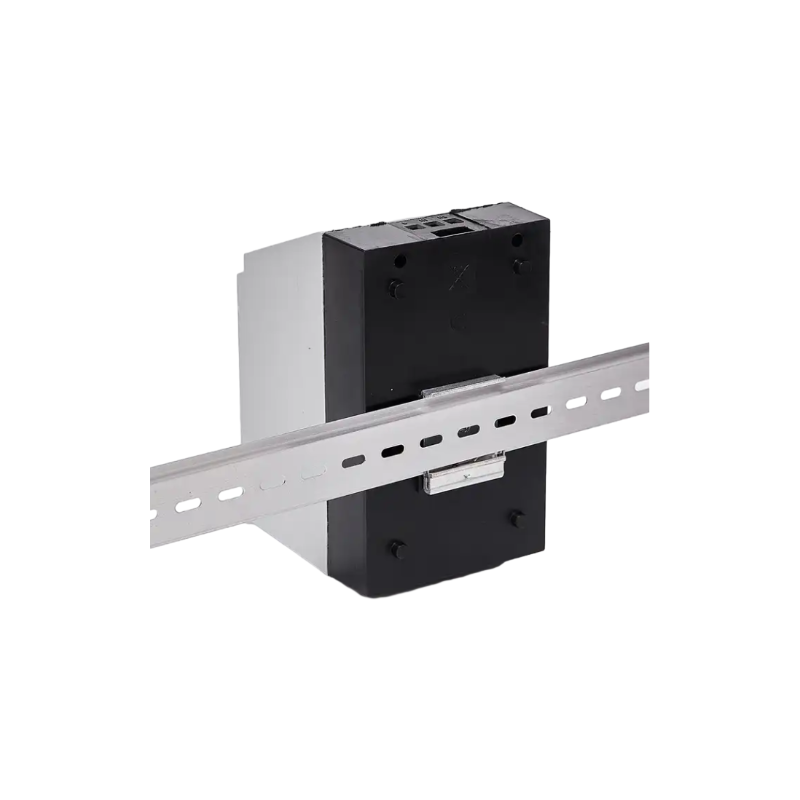

| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up) – other fitting positions possible |
| Dimensions | 100 x 128 x 165mm |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
| Art. No. | Operating voltage | Heating capacity¹ | Airflow, free flow | Setting range thermostat² | Weight (approx.) |
| 650D01/650D02 | 220-240VAC, 50/60Hz | 300W(50Hz) / 400W(60Hz) | 35m³/h | 0 to +60°C | 0.9kg |
| 650D03/650D04 | 220-240VAC, 50/60Hz | 475W(50Hz) / 550W(60Hz) | 35m³/h | 0 to +60°C | 0.9kg |
| 650D05/650D06 | 220-240VAC, 50/60Hz | 550W(50Hz) / 650W(60Hz) | 45m³/h | 0 to +60°C | 1.1kg |
| 650D07/650D08 | 100-120VAC, 50/60Hz | 300W(50Hz) / 450W(60Hz) | 35m³/h | +32 to +140°F | 0.9kg |
| 650D09/650D10 | 100-120VAC, 50/60Hz | 400W(50Hz) / 550W(60Hz) | 35m³/h | +32 to +140°F | 0.9kg |
| 650D11/650D12 | 100-120VAC, 50/60Hz | 510W(50Hz) / 650W(60Hz) | 45m³/h | +32 to +140°F | 1.1kg |
¹ at +20°C (+68°F) ambient temperature;
² Switch temperature difference 7K (±4K tolerance)
