Features
• Pressure clamp connectors
• Dynamic heating up
• Wide voltage range
• Energy saving
• Clip fixing, Quick installation
Technical Data

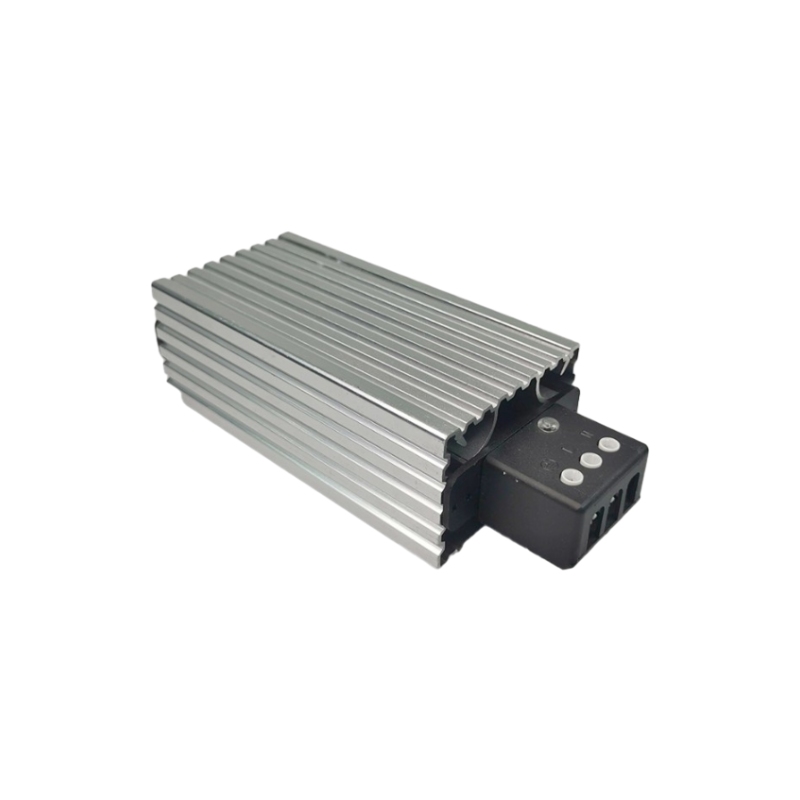

| NTL 150 | |
| Operating voltage | 120-260V AC/DC or 12V DC or 24V DC or 48V DC¹ (min. 110V, max. 265V) |
| Heating element | PTC resistor-temperature limiting |
| Heater body | extuded aluminium profile,anodised |
| Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and
rigid wire 0.5- 2.5mm² |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up, connection on bottom) |
| Operating/Storage temperature | -45 to +70℃(-49 to +158℉) |
| Operating/Storage humidity | max.90%RH(non-condensing) |
| Protection type/Protection class | IP20/I(earthed) |
| Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
| Note | other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
| Art. No. | Heating capacity² | Length(L) | Weight(approx) |
| 860055 | 15W | 65mm | 0.3kg |
| 860056 | 30W | 65mm | 0.3kg |
| 860057 | 45W | 65mm | 0.3kg |
| 860058 | 50W | 80mm | 0.4kg |
| 860059 | 60W | 140mm | 0.5kg |
| 860060 | 75W | 140mm | 0.5kg |
| 860061 | 100W | 140mm | 0.5kg |
| 860062 | 150W | 220mm | 0.7kg |
