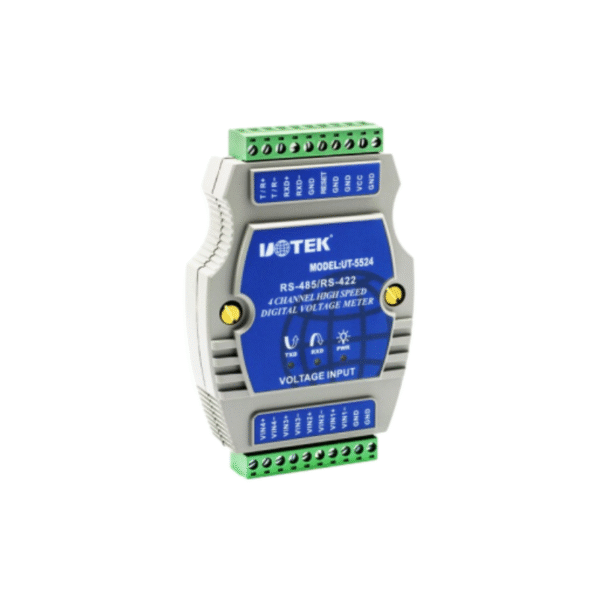

UT-5524A 4CH remote io module

UT-5524A 4-channel digital voltmeter is a multi-channel voltmeter with 4-channel independent voltage inputs. It adopts a variety of communication methods and can be easily connected to a computer to form a remote voltage acquisition system in various fields such as laboratories and product quality inspections. It can also form an industrial production process monitoring system.

Contact us
Category:

Product features:

● Working voltage: 9-40V (DC)

● Working current: 110mA@9Vmax

● Working humidity: 5~95%

● Working temperature: -40~+85℃

● Storage temperature::-40~+85℃

● Sampling frequency: 16.6HZ

● Resolution: 24 bits

● Acquisition accuracy: 0.5%

● Input channel: 4-channel differential input

● Input impedance: 10M

● Range: Voltage 0-200V

● Communication mode: RS-485/422

● Communication protocol: MODBUS-RTU

● Lightning surge: Power supply: Differential mode 1KV

● RS-485/422: 600W protection



Specification

Parameter Value
Model UT-5524A
Signal/Interface RS-232/485/422, Terminal Block
Input Terminal Block
Output Terminal Block
Interface Protection Level (RS-485/422) 600W Surge
Communication Rate 1200bps – 19200bps
Operating Environment – Temperature -40℃ – 85℃
Operating Environment – Humidity 5% – 95%
Power Supply Active, 9 – 40VDC
