Feature
●Support full-duplex or half-duplex mode with auto-negotiation capability
●Support 10/100/1000Base-T(X) auto-detection, full/half-duplex MDI/MD-X self-adaptation
●Support -40-75℃ operating temperature and good EMC electromagnetic compatibility
●Support industrial-grade IP40 protection level
●Automatic alarm function through relay output
●Redundant dual power input, input overload and reverse connection protection
●Meet telecom-grade operation standards
Specification
| Parameter | Value |
| Protocol Standard | EEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3af/at |
| Interface – Optical Fiber | 10Gbps SFP+ (10 Gigabit SFP port) |
| Interface – RJ45 | 10/100/1000Base-T ports, MDI/MDI-X adaptive, supports POE output |
| Interface – POE Pins | V+, V+, V-, V- correspond to pins 1, 2, 3, 6 (default) |
| LED Indicators | Power indicator, network indicator, alarm indicator, POE indicator, 10G SFP+ interface indicator |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Transmission Distance – Fiber Jumper (Single Mode) | 1310nm: 20/40/60Km; 1550nm: 80/100/120Km |
| Transmission Distance – Fiber Jumper (Multimode) | 1310nm: 2Km |
| Switching Performance – Gigabit Forwarding Rate | 1488095pps |
| Switching Performance – 10G Forwarding Rate | 14881000pps |
| Transmission Mode | Store and forward |
| MAC Address Space | 16K |
| Buffer Space | 2Mb |
| Backplane Bandwidth | 56G |
| Maximum Frame Length | 10KB |

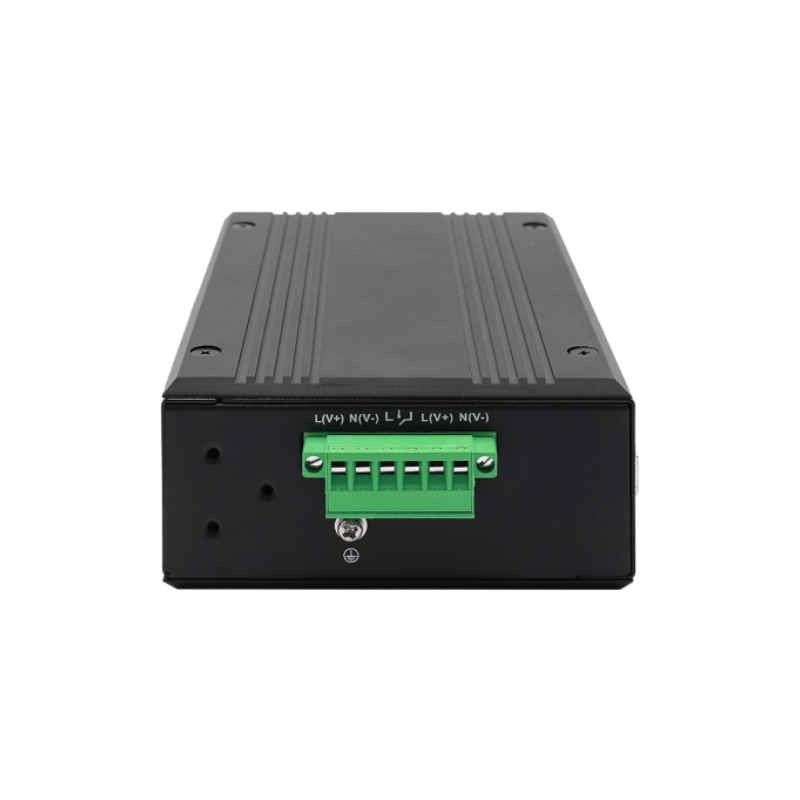

| Power Requirements – Input Voltage | 48VDC (46-57V), redundant input, reverse connection protection supported |
| Power Consumption | Single POE network interface can reach 30W, total power consumption does not exceed 150W |
| Mechanical Characteristics – Enclosure | IP40 protection level |

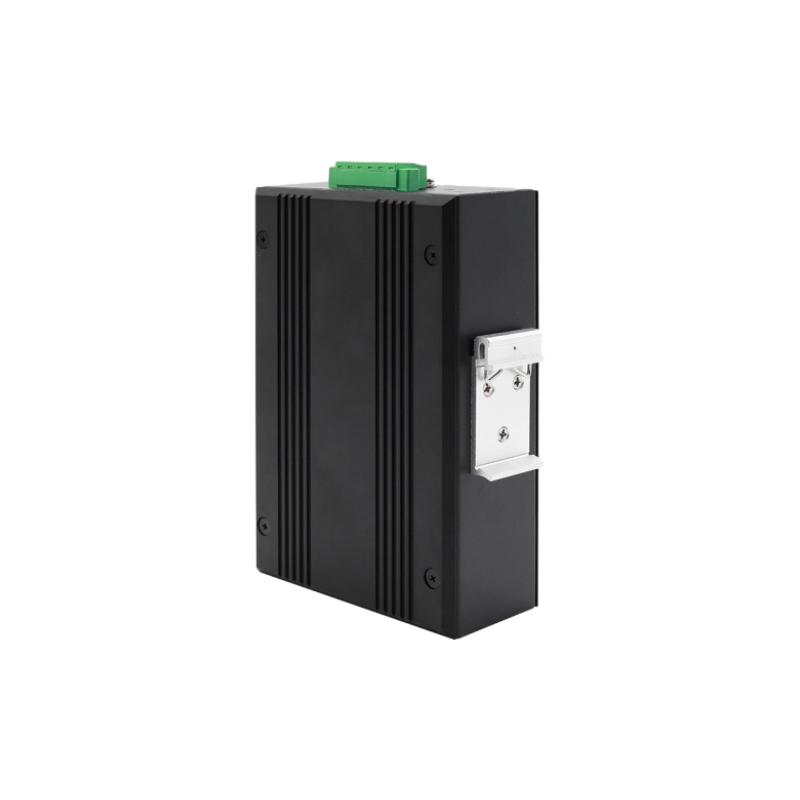

| Mechanical Characteristics – Installation Method | Rail-mounted/Wall-mounted |
| Mechanical Dimensions | Dimensions (WxHxD): 150 mmx47.6mmx100mm |
| Packaging Dimensions | 250mm x205mm x55mm |
| Weight | 900g |
| Working Environment – Operating Temperature | -40℃~75℃ |
| Working Environment – Storage Temperature | -40℃~85℃ |
| Working Environment – Relative Humidity | 0~95% (No condensation) |
| Industry Standard – EMI | FCC Part 15, CISPR (EN55022) class A |
| Industry Standard – EMS | IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), EC(EN)61000-4-6(CS), IEC(EN)61000-4-8, EC 60068-2-27(Shock), IEC 60068-2-32(Freefall) |
