Features
●Supports multiple combinations of Ethernet ports and optical ports (optional SFP slot/ST/FC/SC interface)
●Supports IGMP Snooping to filter multicast packets
●Supports IEEE 802.1Q VLAN for easy network planning
●Supports QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase network stability
●Supports STP/RSTP and MSTP network redundancy and SNMPv1/v2c/v3 to ensure network security management
●Supports link aggregation to optimize network bandwidth
●Supports access control list (ACL) to enhance flexibility and network management security
●Supports port mirroring function for online debugging
●Supports port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression to ensure network stability
●Supports Layer 3 switching function (static routing/RIP/OSPF/VRRP) for cross-segment data transmission
●Supports power supply, port abnormal status relay output alarm function
●Supports wide temperature operation, the operating temperature range is: -40~75℃
Specification
| Parameter | Value |
| Protocol Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.1x, IEEE802.3ad |
| Protocol | ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, NTP, Syslog |
| Layer 3 Switching Technology | Static routing, RIP V1/V2, OSPF, VRRP for router redundancy |
| Flow Control | IEEE802.3x flow control, backpressure flow control |
| Interface – Optical Fiber | 1000Base-X ports (SC/ST/FC/SFP slots) |
| Interface – RJ45 | 10/100/1000Base-T ports, MDI/MDI-X adaptive |

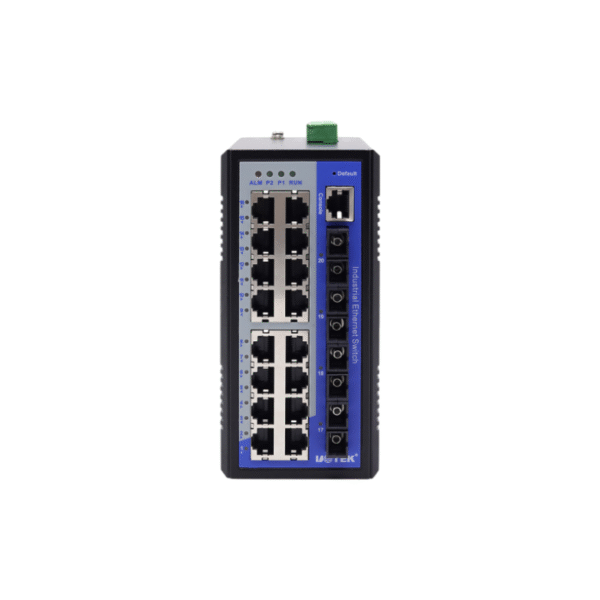

| LED Indicators | P1, P2 power indicator, ALM power failure light, RUN operation indicator, network indicator |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Transmission Distance – Fiber Module (Single Mode) | 1310nm: 20/40/60Km; 1550nm: 80/100/120Km |
| Transmission Distance – Fiber Module (Multimode) | 1310nm: 2Km |
| Switching Performance – Forwarding Rate | 1488095pps |
| Transmission Mode | Store and forward |
| MAC Address Space | 16K |
| Buffer Space | 12Mb |
| Backplane Bandwidth | 40G |
| Host Unicast Routing Table | 512 (IPv4), 256 (IPv6) |
| Network Segment Unicast Routing Table | 64 (IPv4/IPv6) |
| Power Requirements – Input Voltage | 12/24/48VDC (10.8~52.8VDC), 110/220VAC (88~264VAC)/50-60Hz, 110/220VDC (88~264VDC), dual power redundancy input supported |
| Power Consumption | Maximum input power: 625mA@24Vmax |
| Mechanical Characteristics – Enclosure | IP40 protection level |
| Mechanical Characteristics – Weight | No more than 1600g |

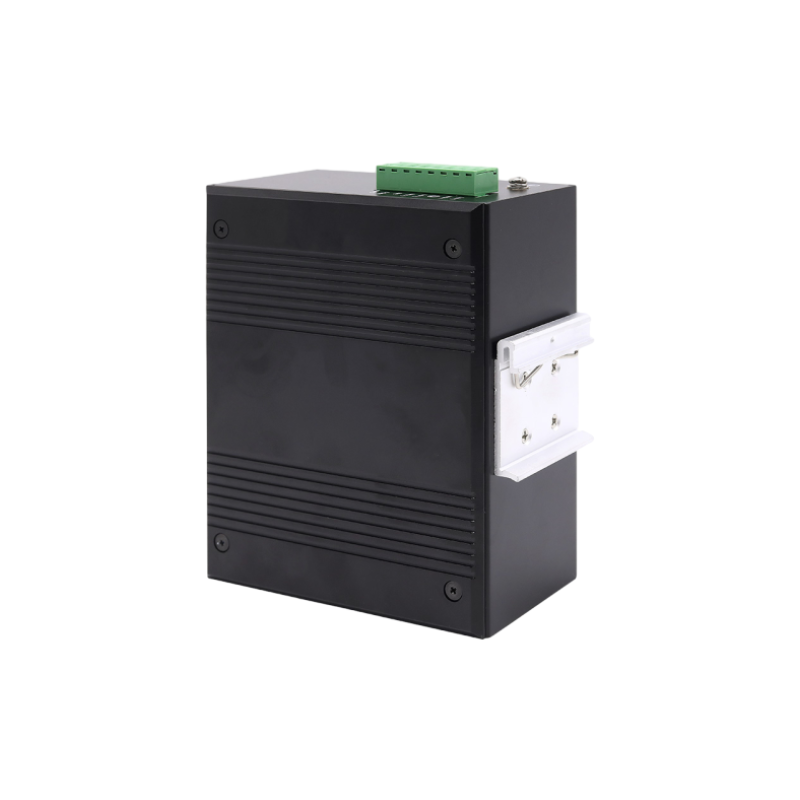

| Mechanical Characteristics – Installation Method | Rail-mounted |
| Mechanical Dimensions (W×H×D) | 70mm×150mm×120mm |
| Working Environment – Operating Temperature | -40℃ ~75℃ |
| Working Environment – Storage Temperature | -40℃ ~85℃ |
| Working Environment – Relative Humidity | 0~95% (No condensation) |
| Industry Standard – EMI | FCC Part 15, CISPR (EN55022) class A |
| Industry Standard – EMS | IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8, IEC 60068-2-27(Shock), IEC 60068-2-32(Freefall) |
