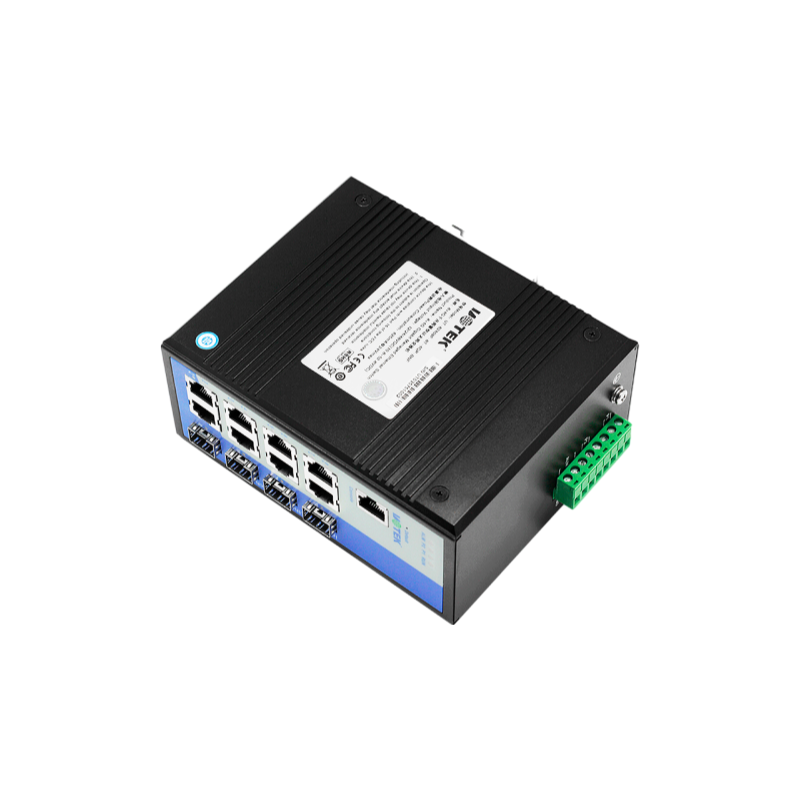

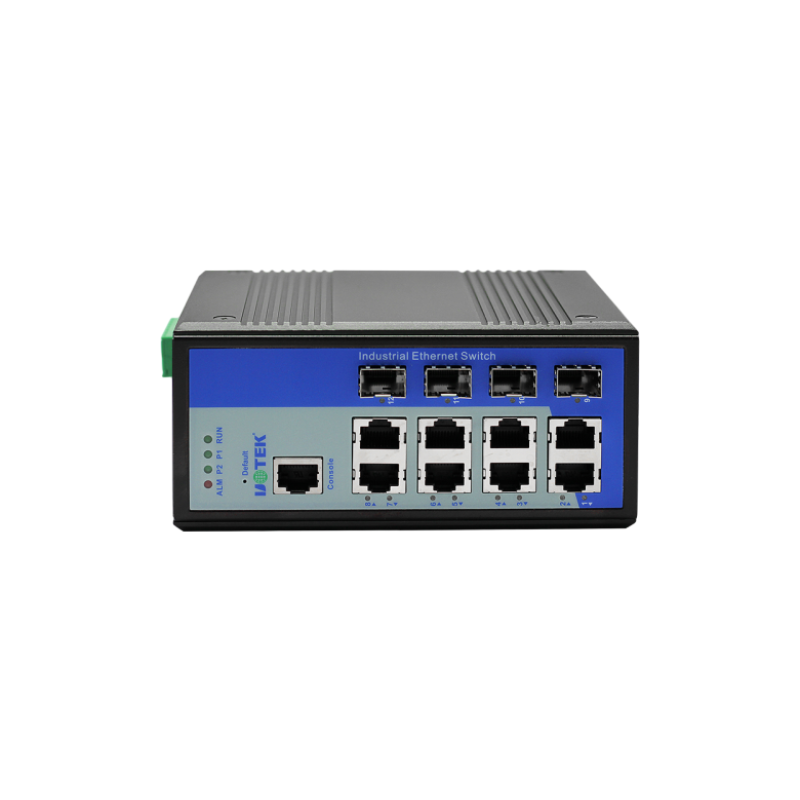

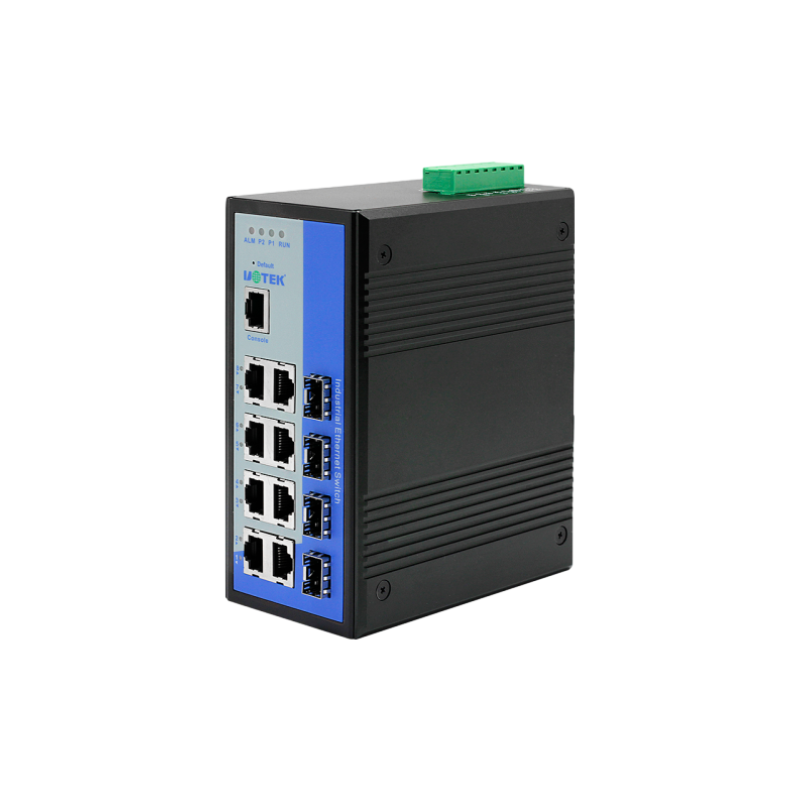

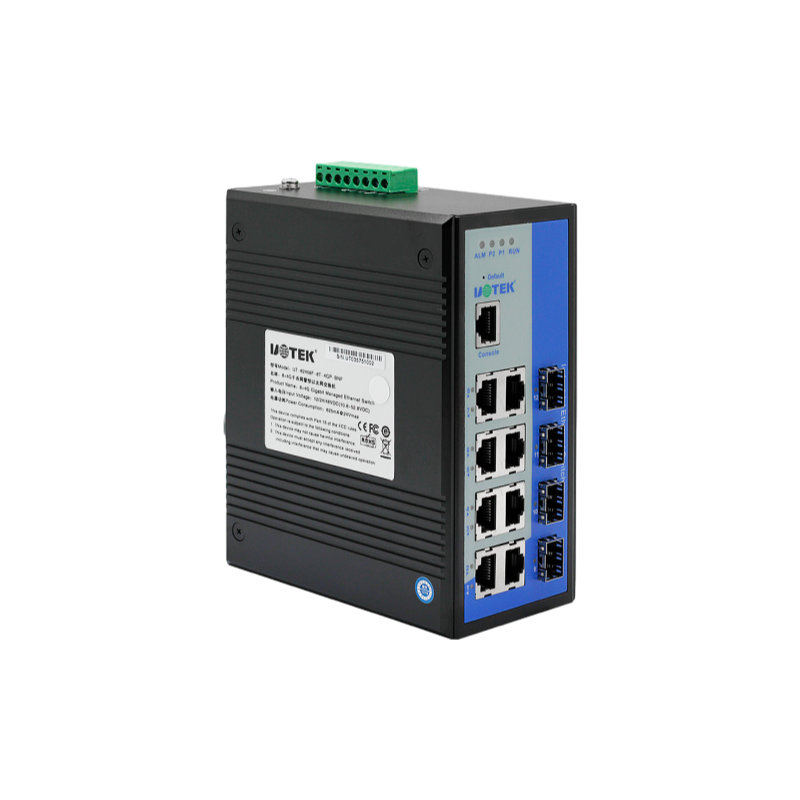

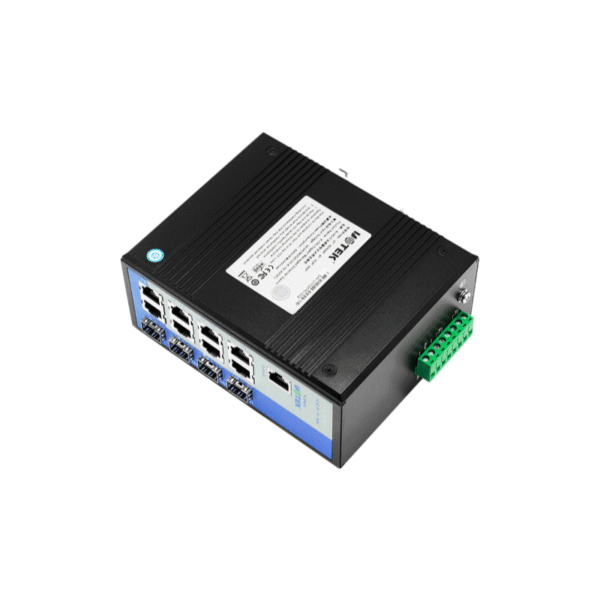

Features
●Supports multiple combinations of Ethernet ports and optical ports (optional SFP slot/ST/FC/SC interface types)
●Supports IGMP Snooping and GMRP to filter multicast packets
●Supports Port-based VLAN ports, IEEE 802.1Q VLAN and GVRP protocols for simple network planning
●Supports QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase network stability
●Supports stp/Rstp, SNMPv1/v2v3 to ensure network security
●Uses RMON to enhance the prediction capability of network monitoring machines
●Supports UT-ring ring network, including single ring and intersecting ring
●Supports port mirroring function for easy online debugging
●Supports port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression
●Supports abnormal status relay output alarm function such as power supply, port UT-ring, etc.
●Supports wide temperature operation, the operating temperature range is: -40~85℃
Specification
| Parameter | Value |
| Protocol Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1x |
| Protocol | ICMP, TCP, HTTP, Telnet, UT-Ring, STP/RSTP, SNMP, LLDP, IGMP-Snooping, GMRP |
| Flow Control | IEEE802.3x flow control, backpressure flow control |
| Interface – Optical Fiber | 100Base-FX ports (SC/FC/ST), 1000Base-X ports (SC/FC/ST /SFP slots) |
| Interface – RJ45 | 10/100Base-T(X) ports, MDI/MDI-X adaptive |
| LED Indicators | Power indicator, network indicator, alarm indicator, operation indicator |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Transmission Distance – Fiber Jumper | Single mode: 1310nm 20/40/60Km; 1550nm 80/100/120Km; Multimode: 1310nm 2Km |
| Switching Performance – Forwarding Rate | 100M network interface: 148810pps; 1000M network interface: 1488095pps |
| Transmission Mode | Store and forward |
| MAC Address Space | 8K |
| Buffer Space | 3Mb |
| Backplane Bandwidth | 9.6G |
| Maximum Frame Length | 2KB |
| Power Requirements – Input Voltage | Optional 12/24/48VDC (10.8~52.8VDC) and 110/220VAC (88~264VAC)/50-60Hz or 110/220VDC (88~264VDC), dual power redundancy input supported |
| Power Consumption | Maximum input power of the device 625mA@24Vmax |
| Mechanical Characteristics – Enclosure | IP40 protection level |
| Mechanical Characteristics – Weight | No more than 1700g |
| Mechanical Characteristics – Installation Method | Rail-mounted |
| Mechanical Characteristics – Dimensions | 150mm x 120mm x 70mm |
| Working Environment – Operating Temperature | -40℃~85℃ |
| Working Environment – Storage Temperature | -40℃~85℃ |
| Working Environment – Relative Humidity | 0~95% (No condensation) |
| Industry Standard – EMI | FCC Part 15, CISPR (EN55022) class A |
| Industry Standard – EMS | IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8, IEC 60068-2-27(Shock), IEC 60068-2-32(Freefall) |
