Features

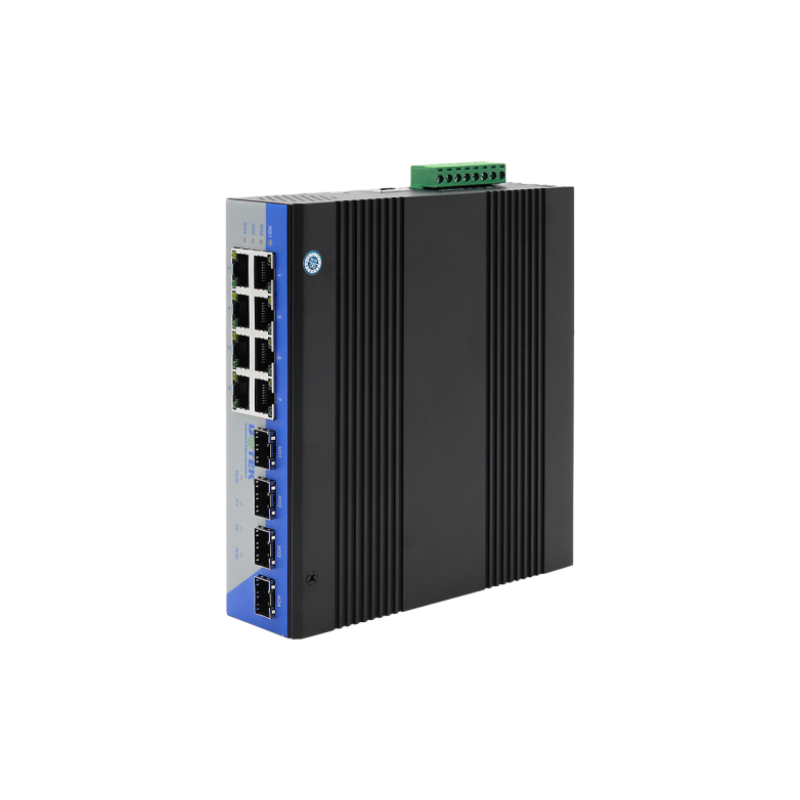

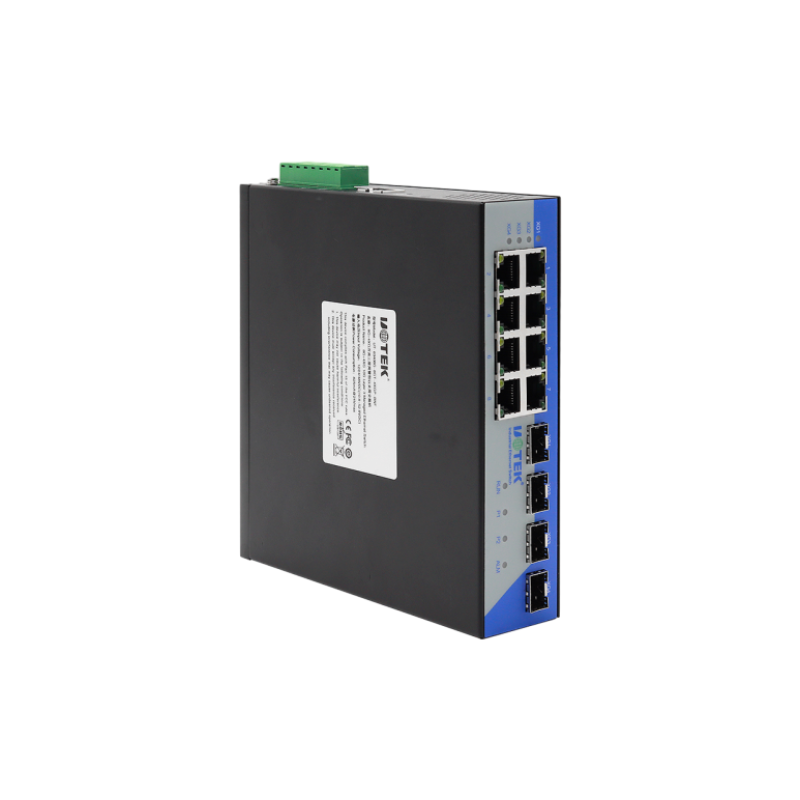

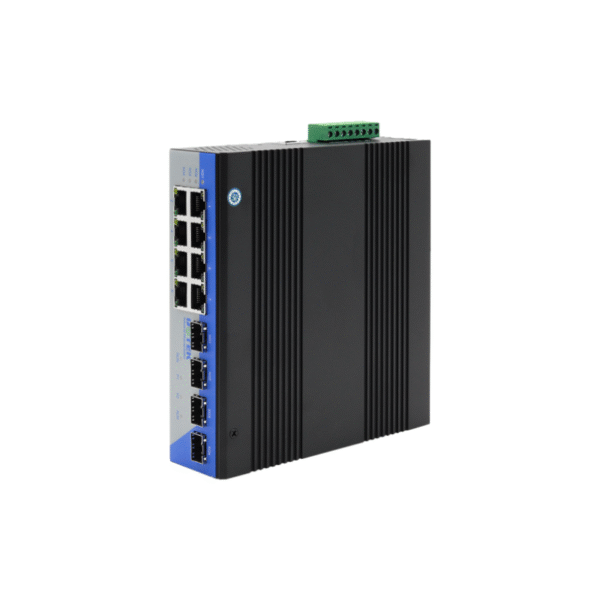

●Supports 8 Gigabit Ethernet ports + 4 10Gbps SFP+ ports
●10Gbps SFP+ ports support 10G/1G adaptive
●Supports IGMP Snooping/MLD Snooping filtering of multicast packets
●Supports IEEE 802.1Q VLAN for easy network planning
●Supports QoS 8 queue mappings increase network stability
●Support STP/RSTP and MSTP network redundancy
●Support SNMPv1/v2v3 to ensure network security management
●Support link aggregation (static aggregation/LACP) to optimize network bandwidth
●Support access control list (ACL) to enhance flexibility and network management security
●Support port mirroring function for online debugging
●Support port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression to ensure network stability
●Support Layer 3 switching function (static routing/RIP/OSPF/VRRP)
●Support power supply and port abnormal status relay output alarm function
●Support wide temperature operation, the operating temperature range is: -40℃~85℃
Specification
| Parameter | Value |
| Protocol Standard | IEEE802.3, IEEE802.3U, IEEE802.3x, IEEE802.32, IEEE802.3ab, IEEE802.10, IEEE802.1P, IEEE802.1D, IEEE802.1W, IEEE802.1S, IEEE802.3ad, IEEE802.1x, IEEE802.3ae |
| Protocol | ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1, N2c, N3, DHCP Server, NTP, SSH, IPV6, LACP, VLAN, ERPS, QINO |
| Layer 3 Switching Technology | Static routing, RIP v1/v2, OSPF, VRRP for router redundancy |
| Flow Control | IEEE802.3x flow control, backpressure flow control |
| Interface – Optical Fiber | 1G/10Gbps SFP+ (10 Gigabit SFP ports) |
| Interface – RJ45 | 10/100/1000Base-T ports, MDI/MDI-X adaptive |

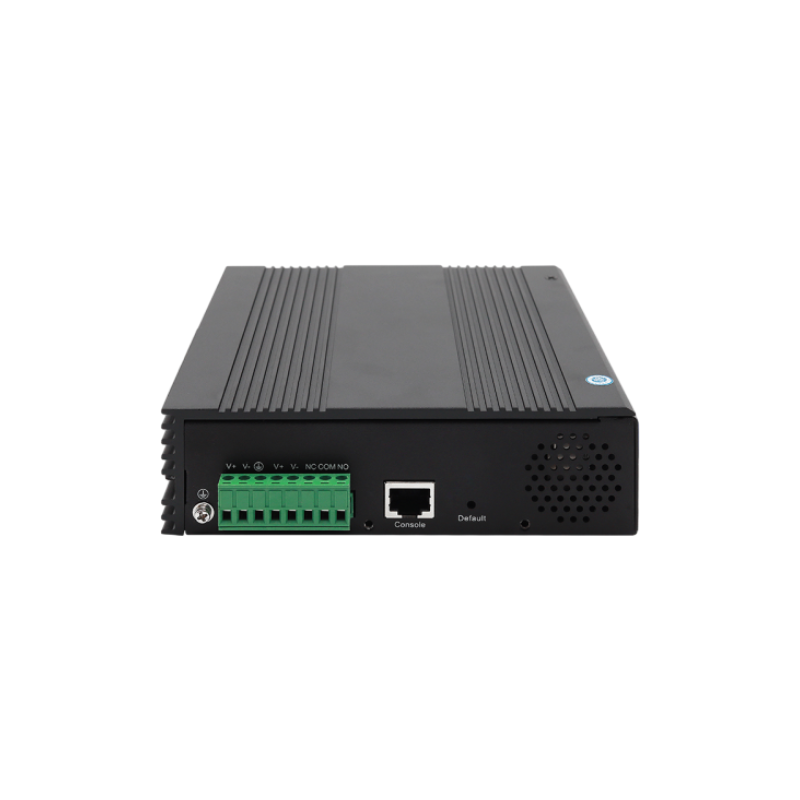

| Interface – Console Port | Serial debugging (RJ45 interface) |

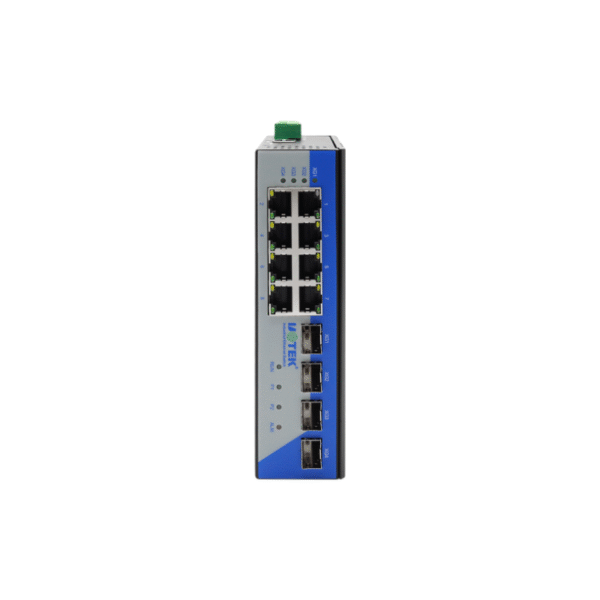

| LED Indicators | Operation indicator, power indicator, alarm indicator, 10GSFP+ indicator, ACT indicator, Link indicator |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Transmission Distance – Fiber Module (Single Mode) | 1310nm: 20/40/60Km; 1550nm: 80/100/120Km |
| Transmission Distance – Fiber Module (Multimode) | 1310nm: 2Km |
| Switching Performance – 100M Forwarding Rate | 148810ppS |
| Switching Performance – 1000M Forwarding Rate | 1488095ppS |
| Switching Performance – 10G Forwarding Rate | 14881000ppS |
| Transmission Mode | Store and forward |
| MAC Address Space | 16K |
| Buffer Space | 12Mb |
| Backplane Bandwidth | 208G |
| Maximum Frame Length | 9216B |
| Host Unicast Routing Table | 1024 (IPv4), 512 (IPv6) |
| Network Segment Unicast Routing Table | 512 (IPv4/IPv6) |
| Power Requirements – Input Voltage | 12/24/48VDC (10.8-52.8VDC), dual power redundancy input supported |
| Power Consumption | Maximum input power: 750mA@24Vmax (Detailed power consumption is shown on the product label) |
| Mechanical Characteristics – Weight | 1kg |

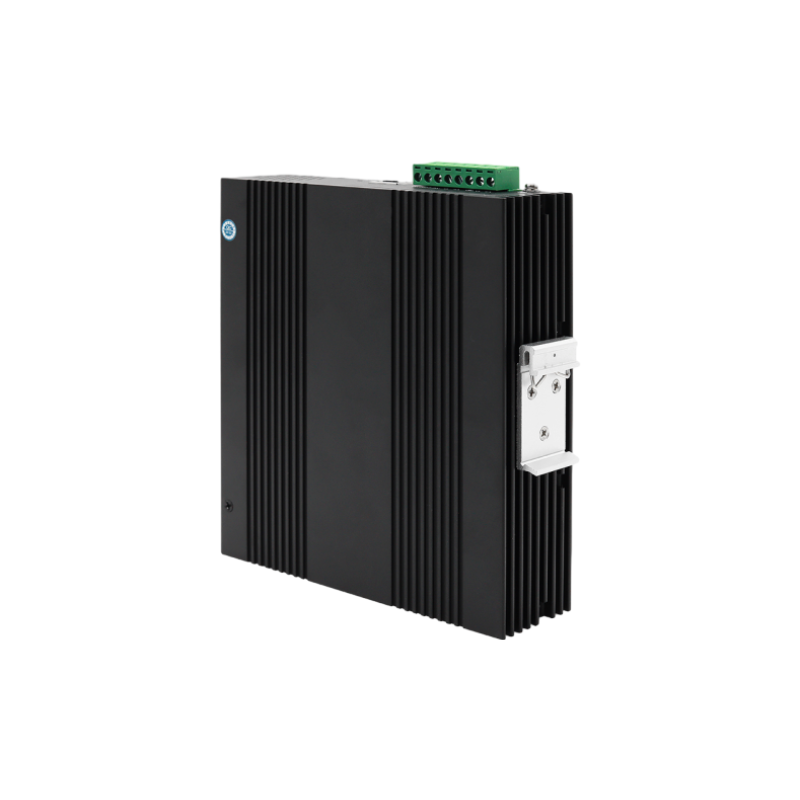

| Mechanical Characteristics – Installation Method | Desktop/Rail-mounted |
| Mechanical Dimensions (WxHxD) | 165mmx43mmx150mm |
| Packaging Dimensions | 250mmx205mmx108mm |
| Working Environment – Operating Temperature | -40℃~85℃ |
| Working Environment – Storage Temperature | -40℃-85℃ |
| Working Environment – Relative Humidity | 0-95% (No condensation) |
| Industry Standard – EMI | FCC Part 15, CISPR (EN55022) class A |
| Industry Standard – EMS | IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8, IEC60068-2-27(Shock), IEC 60068-2-32(Freefall) |
