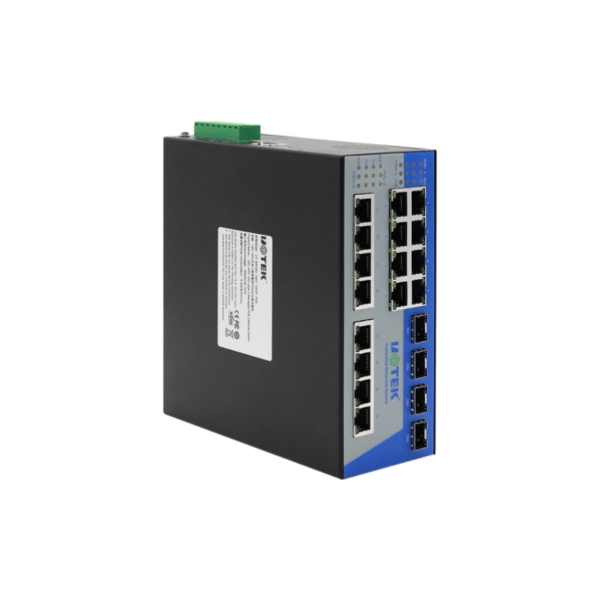

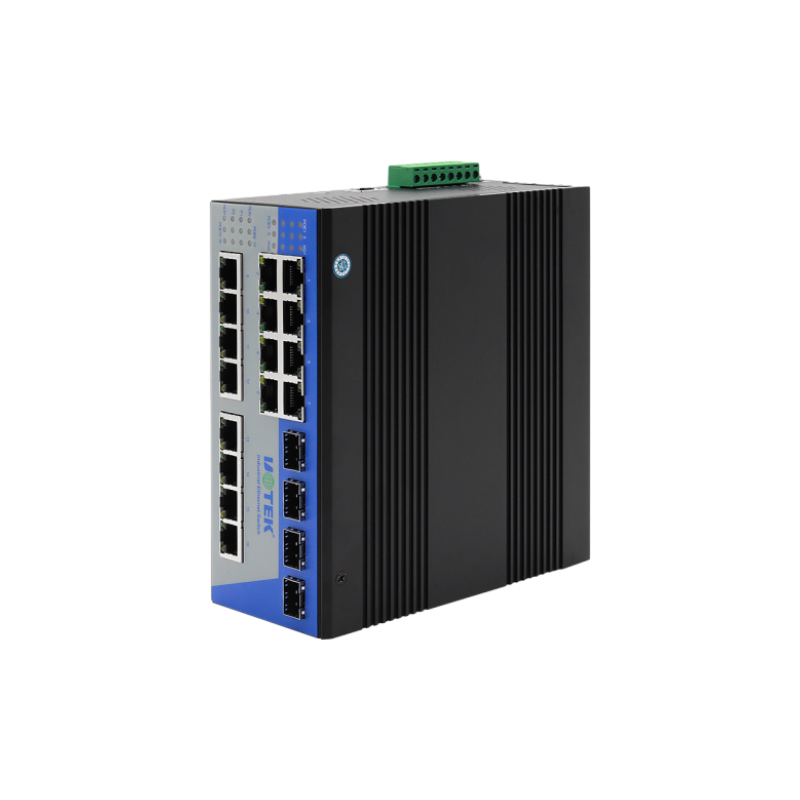

Features:
●Supports 16-channel POE Gigabit Ethernet ports + 4-channel 10Gbps SFP+ interfaces
●10Gbps SFP+ interfaces support 10G/1G adaptive
●Supports IGMP Snooping/MLD Snooping to filter multicast packets
●Supports IEEE 802.1Q VLAN for easy network planning
●Supports 8 queue mappings for QoS to increase network stability
●Supports STP/RSTP and MSTP network redundancy
●Supports SNMPv1/v2v3 to ensure network security management
●Supports link aggregation (static aggregation/LACP) to optimize network bandwidth
●Supports access control lists (ACLs) to enhance flexibility and network management security
●Supports port mirroring for easy online debugging
Specification
| Parameter | Value |
| Protocol Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1w, IEEE802.1s, IEEE802.3ad, IEEE802.1x, IEEE802.3ae, IEEE802.3af/at |
| Protocol | ARP, ICMP, TCP, HTTP/HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, NTP, SSH, IPV6, LACP, VLAN, ERPS, QINQ |
| Layer 3 Switching Technology | Static routing, RIP V1/V2, OSPF, VRRP supporting router redundancy |
| Flow Control | IEEE802.3x flow control, backpressure flow control |
| Interface – Optical Fiber | 1G/10Gbps SFP+ (10 Gigabit SFP ports) |
| Interface – RJ45 | 10/100/1000Base-T ports, MDI/MDI-X adaptive |
| Interface – Console Port | Serial debugging (RJ45 interface) |
| Interface – POE Pins | V+, V+, V-, V- correspond to pins 1, 2, 3, 6 (default) |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Transmission Distance – Fiber Module (Single Mode) | 1310nm: 20/40/60Km; 1550nm: 80/100/120Km |
| Transmission Distance – Fiber Module (Multimode) | 1310nm: 2Km |
| Switching Performance – 100M Forwarding Rate | 148810pps |
| Switching Performance – 1000M Forwarding Rate | 1488095pps |
| Switching Performance – 10G Forwarding Rate | 14881000pps |
| Transmission Mode | Store and forward |
| MAC Address Space | 16K |
| Buffer Space | 12Mb |
| Backplane Bandwidth | 208G |
| Maximum Frame Length | 9216B |
| Host Unicast Routing Table | 1024 (IPv4), 512 (IPv6) |
| Network Segment Unicast Routing Table | 512 (IPv4/IPv6) |
| Power Requirements – Input Voltage | 48VDC (46-57V), redundant input |
