Product features
●Support 8-way POE management function
●Support 8-way 10/100Base-T(X) Ethernet interface
●Support IGMP Snooping filtering multicast packets
●Support IEEE 802.1Q VLAN for easy network planning
●Support QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase network stability
●Support UT-Ring and STP/RSTP/MSTP network redundancy to prevent network storms
●Support VLAN, which can simplify network planning through settings
●Support port isolation, which can achieve port isolation between the same VLAN
●Support SNMPv1/v2/v3 to ensure network security management at different levels
●Support link aggregation to optimize network bandwidth
●Support access control list (ACL) to enhance flexibility and network management security
●Support port mirroring function to analyze and monitor data for online debugging
●Support port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression to ensure network stability
●Support RMON for active and efficient network monitoring
●Support LLDP for automatic topology discovery
●Support Link Flap link jitter detection and UDLD two-way communication link detection
●Support loop detection to effectively eliminate the impact caused by port loops
●Support wide temperature operation, the operating temperature range is: -40~75℃
Specification
| Parameter | Value |
| Hardware Specification – Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.1x, IEEE802.3ad, IEEE802.1ad, IEEE802.3af/at |
| Protocol | ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, VLAN, LLDP, UT-Ring, ACL, IGMP-Snooping, SNMPv1/v2c/v3, DHCP Server, NTP, Syslog, Link Flap, UDLD, RMON, LACP, DHCP |
| Flow Control | IEEE802.3x flow control, backpressure flow control |
| Interface – RJ45 | 10/100Base-T(X) ports, 8 ports support POE output |
| Interface – POE Pins | V+, V+, V-, V- correspond to pins 1, 2, 3, 6 (default) |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Switching Performance – Forwarding Rate | 148810pps |
| Transmission Mode | Store and forward |
| MAC Address Space | 2K |
| Buffer Space | 1Mbit |
| Backplane Bandwidth | 2G |
| Maximum Frame Length | 1632B |
| Power Requirements – Power Port | 6PIN terminal block |
| Power Requirements – Input Voltage | 48VDC (46-57V), redundant input, reverse connection protection supported |
| Power Consumption | Single POE network interface can reach 30W, total power consumption does not exceed 150W |
| Mechanical Characteristics – Enclosure | IP40 protection for installation |

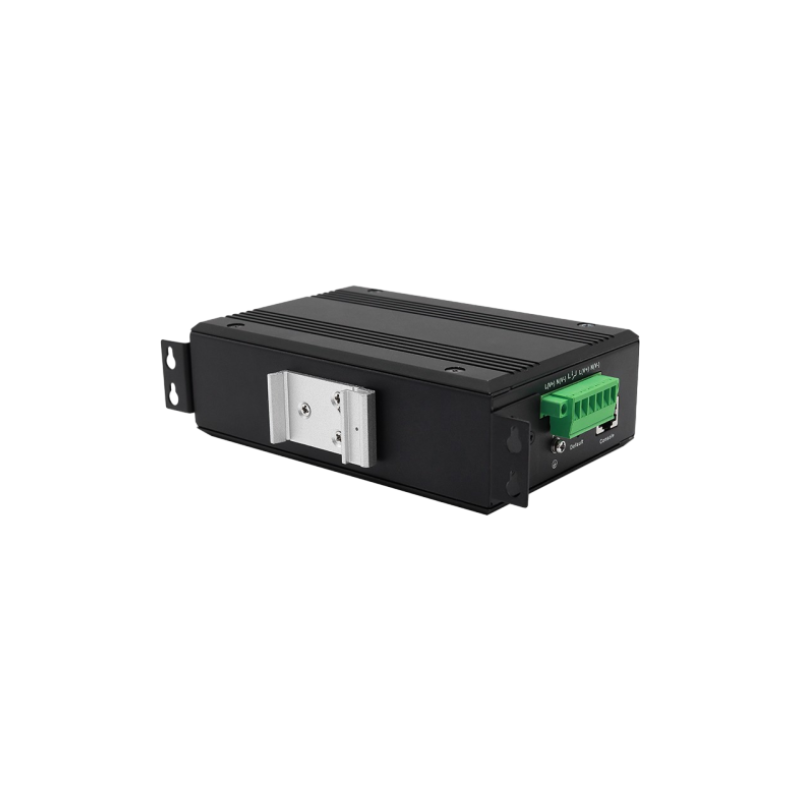

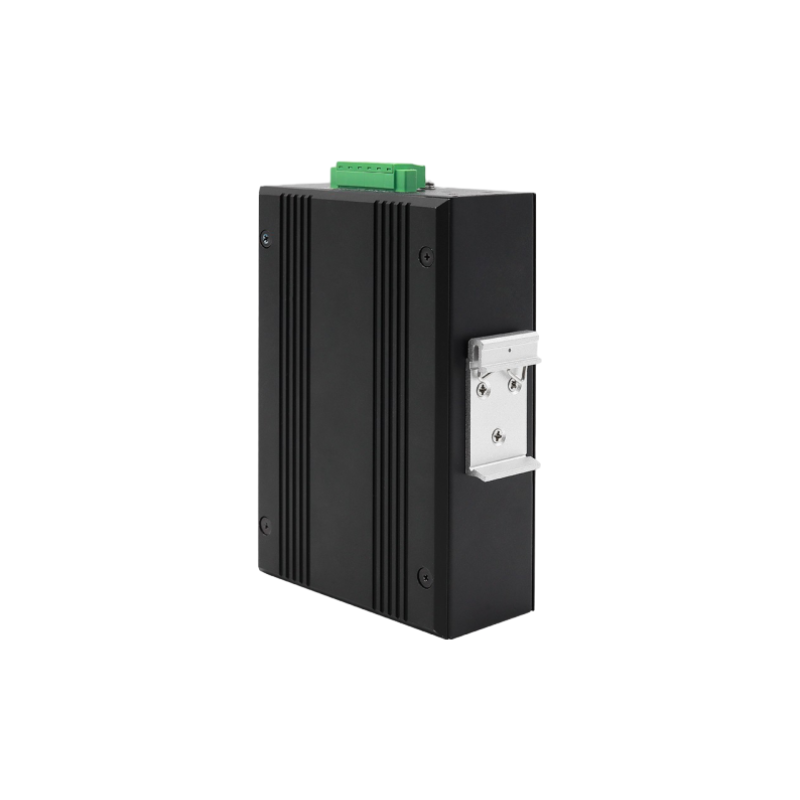

| Mechanical Characteristics – Installation Method | Rail-mounted or wall-mounted |
| Mechanical Dimensions (W×H×D) | 47.6mm×150mm×100mm |
| Industry Standard – EMI | FCC Part 15, CISPR (EN55022) class A |
| Industry Standard – EMS | IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8, IEC 60068-2-27(Shock), IEC 60068-2-32(Freefall) |
