Features
● Supports various combinations of Ethernet ports and optical ports (supports ST/FC/SC/SFP interface types)
● Supports IGMP Snooping to filter multicast packets
● Supports Web-selectable 100Base-FX, 1000Base-X mode type configuration
● Supports IEEE 802.1Q VLAN for easy network planning
● Supports QoS to achieve real-time traffic classification and priority
● Supports STP/RSTP/MSTP and ERPS network redundancy functions to prevent network storms
● Supports UT-Ring private ring network function
● Supports SNMPv1/v2/v3 for network management of different levels
● Supports trap and RMON for flexible network monitoring
● Supports IEEE802.1x authentication function
● Supports link aggregation to optimize network bandwidth
● Supports port isolation and ACL to enhance the flexibility and security of network management
● Supports port mirroring for online debugging
● Supports DHCP Server for allocating IP addresses of different policies
● Support port speed limit broadcast storm suppression multicast storm suppression unknown unicast storm suppression
● Support LLDP, Link flap, UDLD, DDM and loop detection related link detection functions
● Support wide temperature operation, the operating temperature range is: -40~75℃
Specification
| Parameter | Value |
| Protocol Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x |
| Protocol | ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, ERPS, UDLD, NTP, RMON, Syslog |
| Flow Control | IEEE802.3x flow control, backpressure flow control |
| Interface – Optical Fiber | 100Base-FX/1000Base-X ports (SC/FC/ST/SFP slots) |
| Interface – RJ45 | 10/100/1000Base-T ports, MDI/MDI-X adaptive |
| LED Indicators | Power indicator, optical port indicator, RJ45 indicator, operation indicator |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Transmission Distance – Fiber Jumper (Single Mode) | 1310nm: 20/40/60Km; 1550nm: 80/100/120Km |
| Transmission Distance – Fiber Jumper (Multimode) | 1310nm: 2Km |
| Switching Performance – Forwarding Rate | 1488095pps |
| Transmission Mode | Store and forward |
| MAC Address Space | 8K |
| Buffer Space | 4.1Mb |
| Backplane Bandwidth | 22G |
| Maximum Frame Length | 10KB |
| Power Requirements – Input Voltage | 12/24/48VDC (10.8~52.8VDC), reverse connection protection supported |
| Power Consumption | Maximum input power consumption: 280mA@24Vmax |
| Mechanical Characteristics – Enclosure | IP40 protection level |

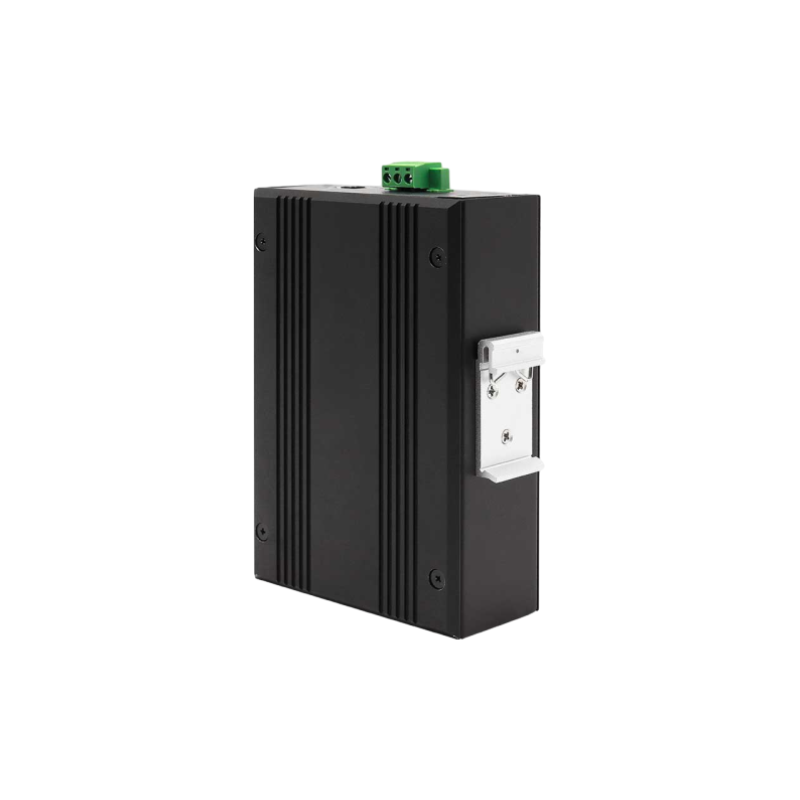

| Mechanical Characteristics – Installation Method | Rail-mounted/Wall-mounted |
| Dimensions (W x H x D) | 150mmx47.6mmx100mm |
| Weight | 795g |
| Working Environment – Operating Temperature | -40℃ ~75℃ |
| Working Environment – Storage Temperature | -40℃ ~85℃ |
| Working Environment – Relative Humidity | 0~95% (No condensation) |
| Industry Standard – EMI | FCC Part 15 Subpart B classA, EN55022 class A |
| Industry Standard – EMS | IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8, IEC 60068-2-27(Shock), IEC 60068-2-32(Freefall), IEC 60068-2-6(Vibration) |
