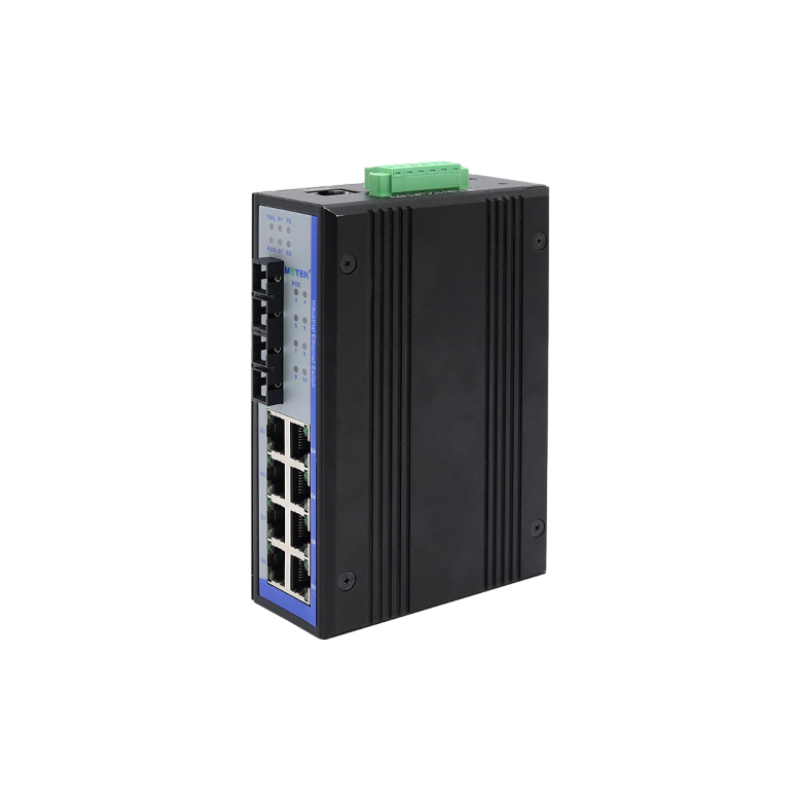

Features
● Support 8-way POE management function
● Support multiple combinations of Fast Ethernet ports and optical ports (support ST/FC/SC/SFP interface types)
● Support IGMP Snooping to filter multicast packets
● Support IEEE 802.1 Q VLAN for easy network planning
● Support QoS (IEEE 802.1 p/1 Q) and TOS/DiffServ to increase network stability
● Support STP/RSTP and MSTP network redundancy and SNMPv1/v2/v3 to ensure network security management
● Support UT-Ring ring network function
● Support IEEE802.1x
● Support link aggregation to optimize network bandwidth
● Support access control list (ACL) to enhance flexibility and network management security
● Support port mirroring function for online debugging
● Support port speed limit, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression to ensure network stability
● Supports power supply, port, and UT-Ring abnormal status relay output alarm function
● Supports wide temperature operation, the operating temperature range is: -40-75℃
Specification

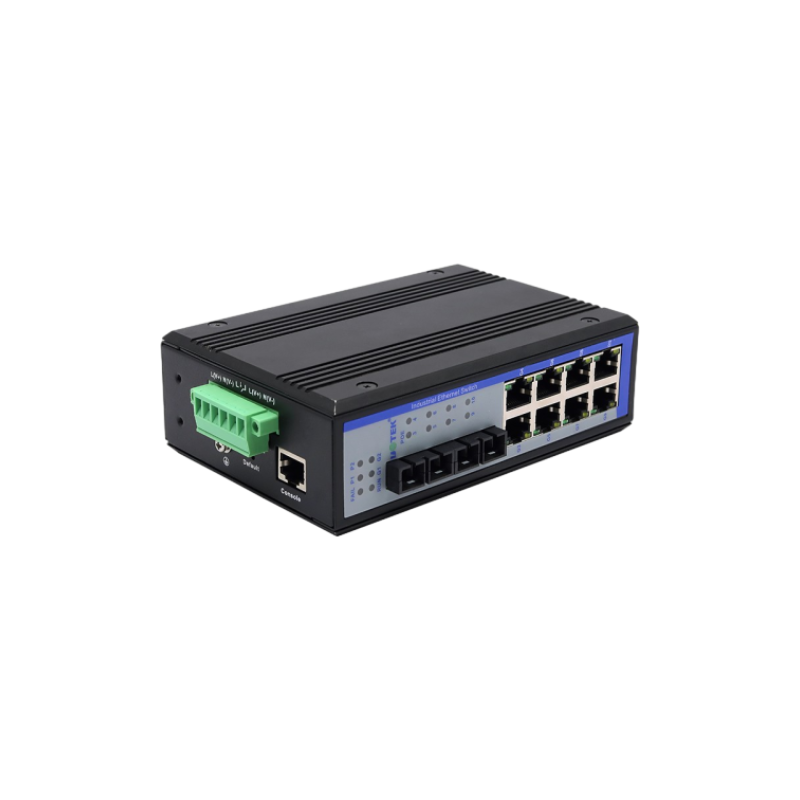

| Parameters | Value |
| Protocol Standards | IEEE 802.3af/at, IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x |
| Protocols | ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, NTP, RMON, Syslog |
| Flow Control | IEEE802.3x flow control, backpressure flow control |
| Interface – Optical Fiber | 1000Base-X ports (SC/FC/ST/SFP slots) |
| Interface – RJ45 | 10/100/1000Base-T ports, support POE output |
| Interface – POE Pins | V+, V+, V-, V- correspond to pins 1, 2, 3, 6 (default) |

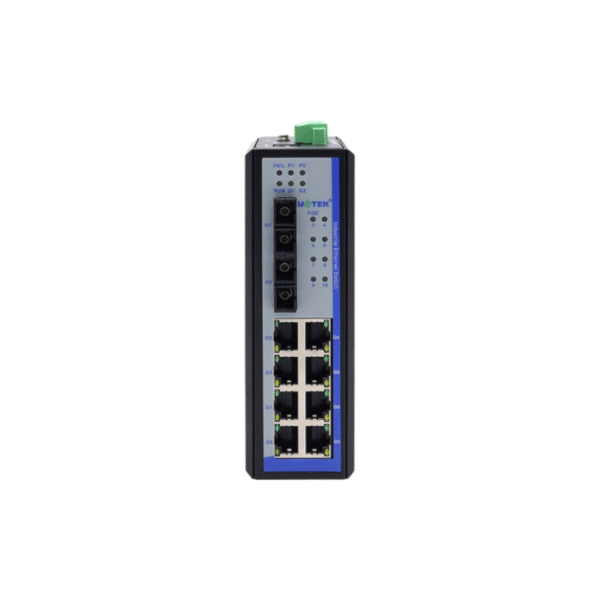

| LED Indicators | Power indicator, optical port indicator, RJ45 indicator, alarm indicator, operation indicator, POE indicator |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Transmission Distance – Fiber Jumper (Single Mode) | 1310nm: 20/40/60Km; 1550nm: 80/100/120Km |
| Transmission Distance – Fiber Jumper (Multimode) | 1310nm: 2Km |
| Switching Performance – Forwarding Rate | 1488095pps |
| Transmission Mode | Store and forward |
| MAC Address Space | 16K |
| Buffer Space | 2Mb |
| Backplane Bandwidth | 22G |
| Maximum Frame Length | 10KB |
| Power Requirements – Power Port | 6PIN terminal block |
| Power Requirements – Input Voltage | 48VDC (46-57V), redundant input, reverse connection protection supported |
| Interface Terminal | 1 removable 6-pin terminal block |
| Power Consumption | Single POE network interface can reach 30W, total power consumption does not exceed 150W |
| Mechanical Characteristics – Enclosure | IP40 protection level |
| Mechanical Characteristics – Weight | 837g |

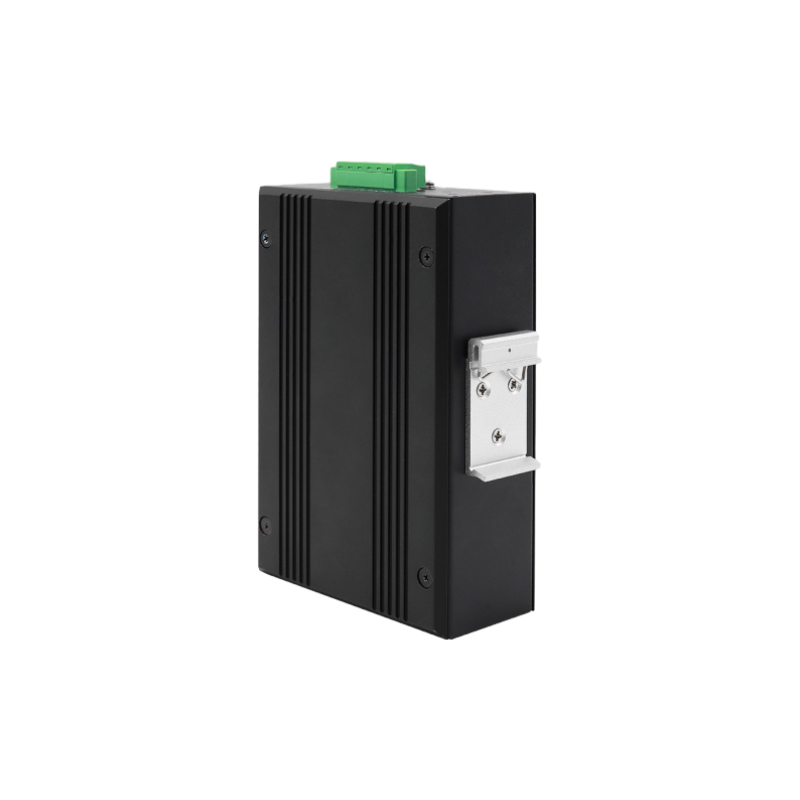

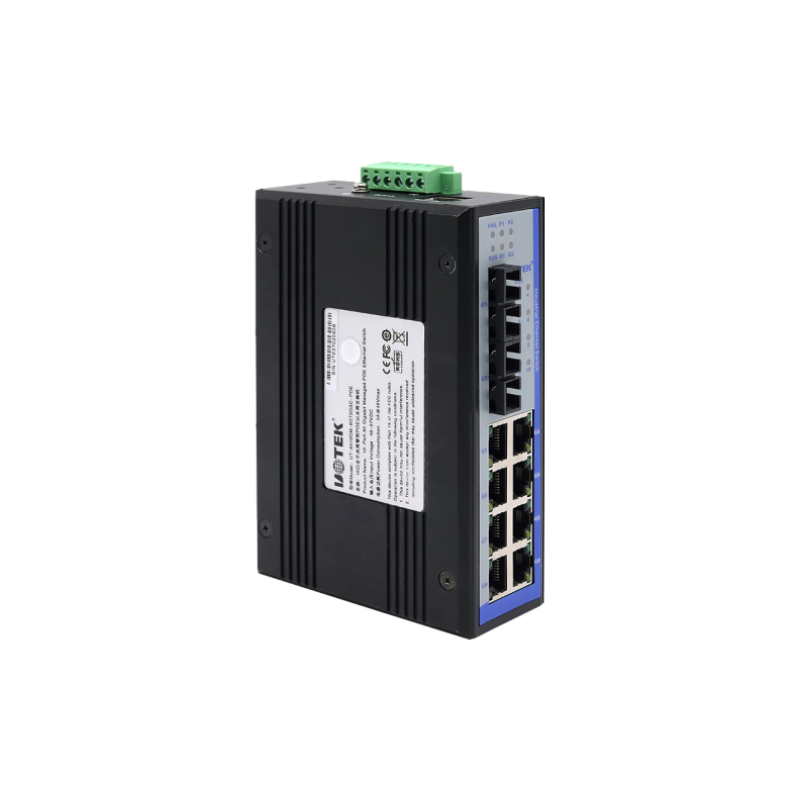

| Mechanical Characteristics – Installation Method | Rail-mounted or wall-mounted |
| Mechanical Dimensions (WxHxD) | 47.6mmx150mmx100mm |
| Working Environment – Operating Temperature | -40℃ ~75℃ |
| Working Environment – Storage Temperature | -40℃ ~85℃ |
| Working Environment – Relative Humidity | 0~95% (No condensation) |
| Industry Standard – EMI | FCC Part 15, CISPR (EN55022) class A |
| Industry Standard – EMS | IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8, IEC 60068-2-27(Shock), IEC 60068-2-32(Freefall) |
