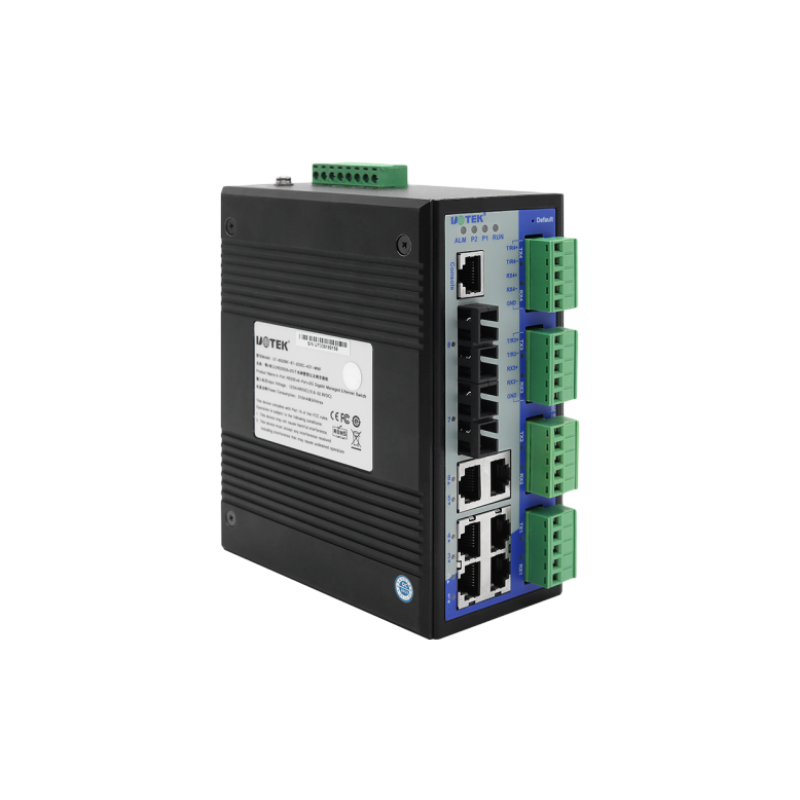

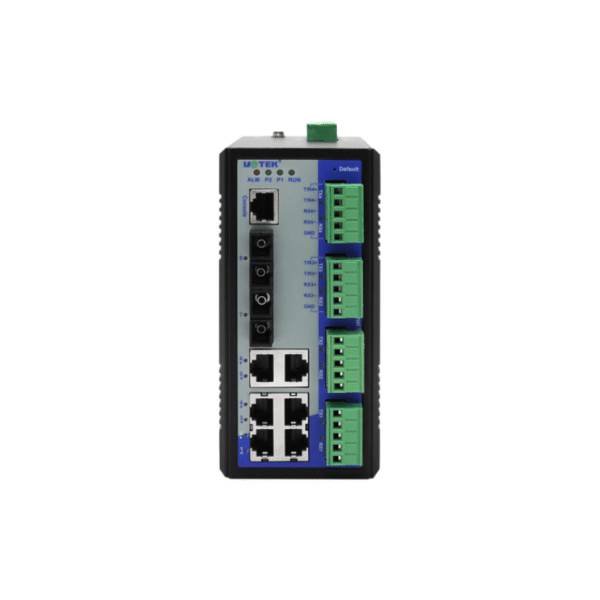

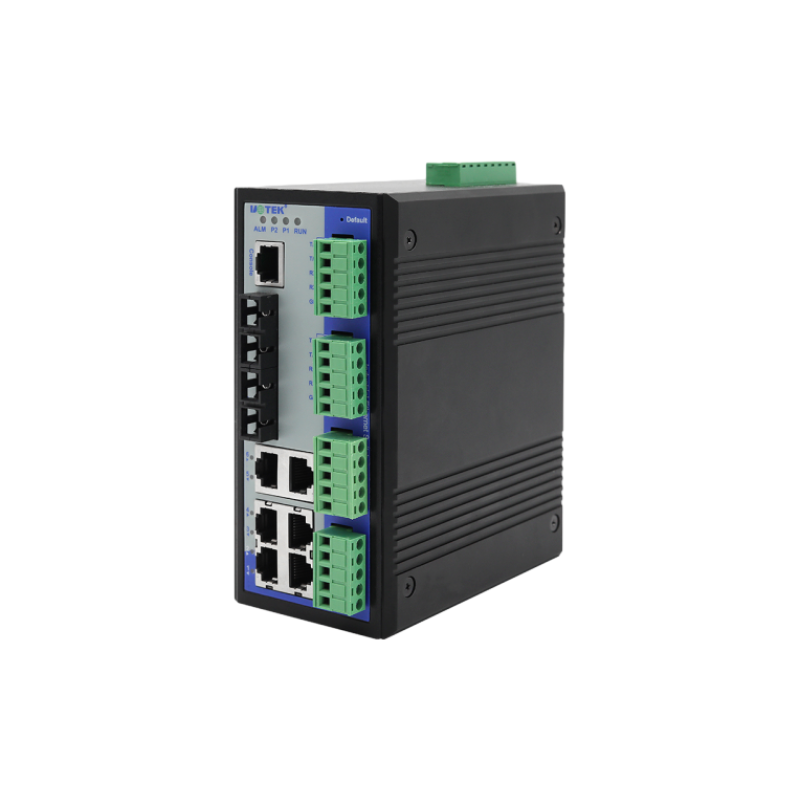

Features
●Data control: support 802.3x full-duplex flow control, support network storm suppression
●Redundant network: support STPIRSTPIMSTP, support UT-Ring ring network function, to ensure network stability
●Multicast management: support IGMP Snooping v1/23
●VLAN: support IEEE 802.10 VLAN, effectively isolate broadcast domains
●Link aggregation: support static/dynamic link aggregation, provide perfect bandwidth utilization
●QOS: support COS, DSCP, 4 queues, support WRR, SP scheduling mode
●Security management: support ACL access control list, support 802.1x, support user hierarchical management
●Management function: support CL1, WEB, SNMP management mode
●Monitoring and maintenance: support port mirroring, interface status monitoring, log management
●Alarm function: support power, port, UT-Ring abnormal status relay output alarm function
Specification
| Parameter | Value |
| Protocol Standard | IEEE 802.3u, IFEE 802.32, IEEE 802.3, IEEE 802.1D, IEEE 802.1W, IEEE802.1s, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1x |
| Interface – Optical Fiber | 100Base-FX ports (SC/FC/ST), 1000Base-X ports (SC/FC/ST) |
| Interface – RJ45 | 10/100Base-T(X) ports, MDI/MDIX adaptive |
| Serial Port | RS232/485/422 interface |
| Baud Rate | 300-921600bps |
| Parity Bit | None, Odd, Even, Mark, Space |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Transmission Distance – Category 5e Twisted Pair | 100m |
| Transmission Distance – Fiber Module (Single Mode) | 1310nm: 20/40/60Km; 1550nm: 80/100/120Km |
| Transmission Distance – Fiber Module (Multimode) | 1310nm: 2Km |
| Switching Performance – Forwarding Rate | 100M network interface: 1488 10pps; 1000M network interface: 1488095pps |
| Transmission Mode | Store and forward |
| MAC Address Space | 8K |
| Buffer Space | 1Mb |
| Backplane Bandwidth | 7.6G |
| Maximum Frame Length | 1632B |
| Power Requirements – Input Voltage | 12/24/48VDC (10.8~52.8VDC), dual power redundancy input supported |
| Power Consumption | Maximum input power consumption 375mA@24Vmax (Detailed power consumption is shown on the product label) |
| Mechanical Characteristics – Enclosure | IP40 protection level |

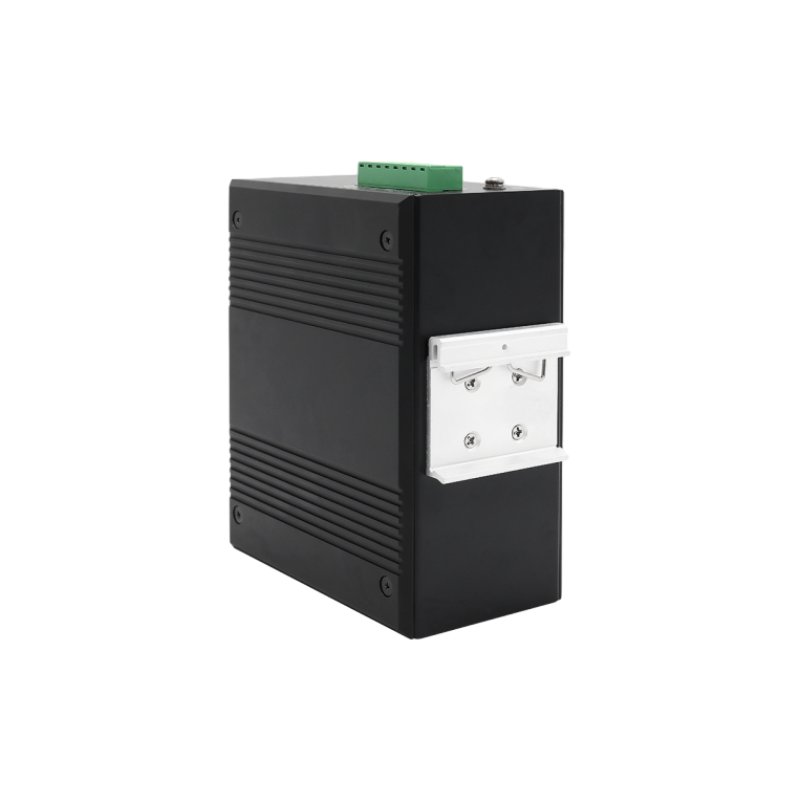

| Mechanical Characteristics – Installation Method | Rail-mounted |
| Mechanical Characteristics – Dimensions (W×H×D) | 70mm×150mm×120mm |
| Working Environment – Operating Temperature | -40℃~85℃ |
| Working Environment – Storage Temperature | -40℃~85℃ |
| Working Environment – Relative Humidity | 0~95% (No condensation) |
| Industry Standard – EMI | FCC Part 15, CISPR(EN55022) class A |
| Industry Standard – EMS | IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8, IEC60068-2-27(Shock), IEC60068-2-32(Freefall) |
