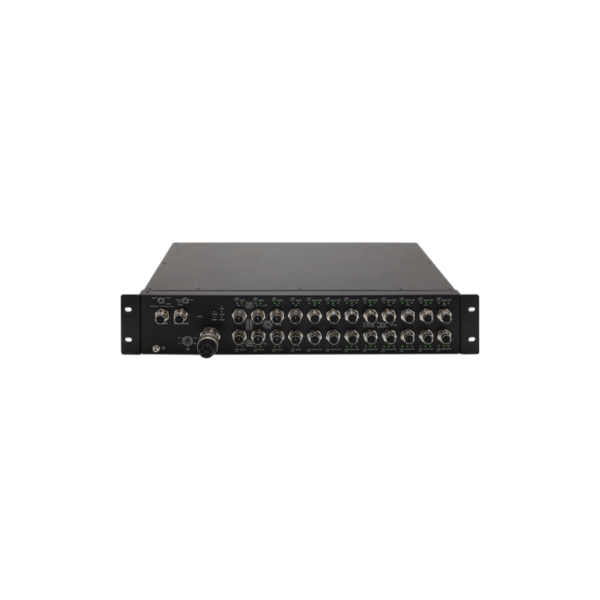

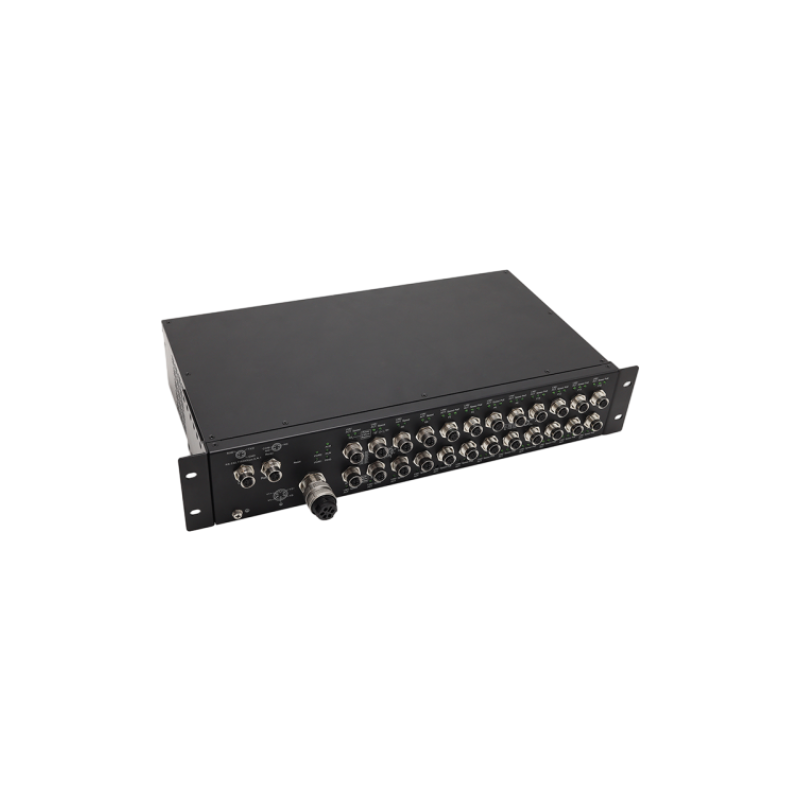

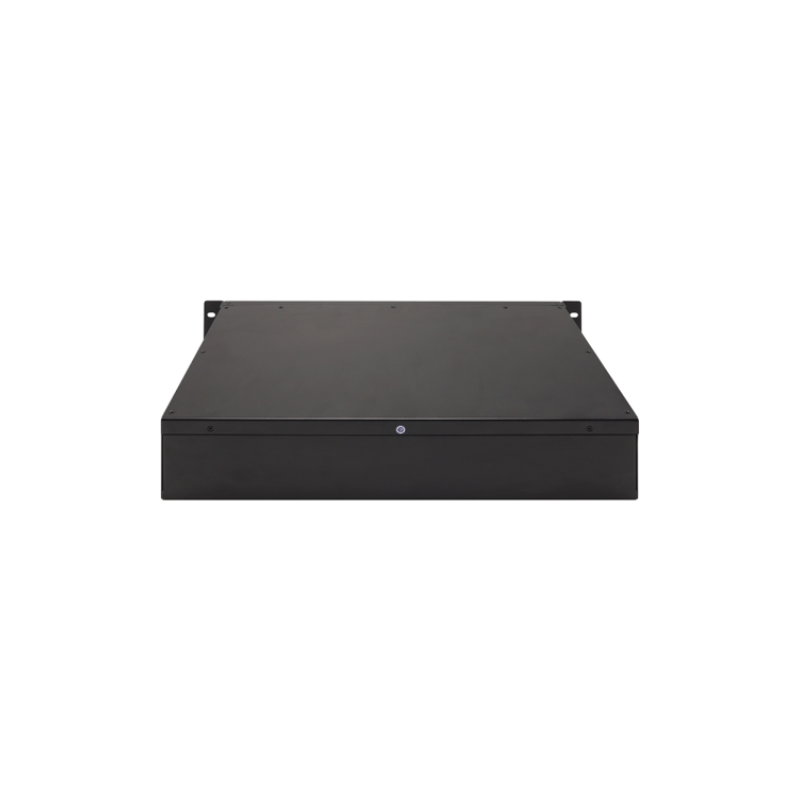

UT-RT6224U rack mount managed switch

UT-RT6224U series Gigabit Layer 2 managed switches support 8 M12 Gigabit electrical ports and 16 M12 100M POE electrical ports. They are suitable for use in PIS systems where the backbone network is Gigabit aggregation (or configurable Gigabit ring network) Ethernet transmission.

Contact us
Category:

Features

  • Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1P, IEEE 802.1Q, IEEE802.1d, IEEE802.1W
  • With 16 10/100Mbps M12 electrical ports, supporting POE power supply
  • With 8 10/100/1000Mbps M12 electrical ports, 4 of which support BYPASS function
  • G1 and G3 are a group of Bypass, G2 and G4 are a group of Bypass function to prevent communication interruption caused by power supply failure
  • Port mirroring can analyze and monitor data for online debugging
  • Qos allows real-time traffic classification and priority
  • LLDP can realize automatic topology discovery for easy visual management
  • File management facilitates rapid configuration and online upgrade of devices

Specification

Parameter Value
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.10, IEEE 802.1D, IEEE 802.1S, IEEE 802.1W, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.3 af, IEEE 802.3 at
Management Functions SNMP v1/v2c/V3, centralized device management, port mirroring, RMON, QoS, LLDP, DHCP Server, file management, port statistics, log management, static ARP, POE, management (supported in POE version), NTP
Security Technologies User permission grading, NAT, ACL, 802.1 authentication, port alarm, storm suppression, SSH configuration, Telnet configuration, loop detection, link oscillation protection
Switching Functions VLAN, port aggregation, bandwidth management, flow control, port isolation
Unicast/Multicast Technologies Static multicast, IGMP-Snooping
Redundancy Technologies UT-Ring, STP/RSTP/MSTP, loop detection
Fault Detection Ping, Tracerroute
Interface – Gigabit M12 10/100/1000Base-T(x), 8-Pin M12(Female), flow control supported, full/half-duplex mode, MDI/MDI-X auto-detection, two groups of Bypass functions supported
Interface – Hundred-megabit POE M12 10/100Base-T(x), 4-Pin M12(Female), flow control supported, full/half-duplex mode, MDI/MDI-X auto-detection, single port supports up to 30W POE power output, POE power pins: 1, 3 positive, 2, 4 negative
Console Port CLI command line management port (RS-232), 4-Pin M12(Female)
Relay Interface NO (Normally Open), NC (Normally Closed), 4-Pin M12(Female)
Indicator Lights – Power Indicator PWR1/PWR2 (Green)
Indicator Lights – Alarm Indicator ALM (Green)
Indicator Lights – POE Indicator POE (Green)
Indicator Lights – Interface Communication Indicator LNK/ACT (Green)
Indicator Lights – Interface Rate Indicator Speed (Green)
Switching Attributes – Hundred-megabit Forwarding Speed 148810pps
Switching Attributes – Gigabit Forwarding Speed 1488100pps
MAC Address 16K
Transmission Mode Store and forward
System Backplane Bandwidth 56G
Cache 12M
Power Requirements – Input Voltage 24VDC (16.8-32VDC) or 110VDC (66-160VDC), dual power redundancy, reverse connection protection supported, short circuit and overcurrent protection
Maximum Power <20W (excluding POE power), <100W (including POE power)
Working Temperature – Range -40~75℃ (up to 85℃ for 10 minutes)
Storage Temperature – Range -40~85℃
Relative Humidity 5%~95% (No condensation)
Mechanical Structure – Dimensions Length 431mm x Depth 280mm x Height 88mm
Mechanical Structure – Metal Enclosure Installation: Standard 19”, 2U rack-mounted (mounting ears removable)
Mechanical Structure – Color Black
Mechanical Structure – Weight <5kg
Mechanical Structure – Grounding M5 (Grounding fasteners included with the device)
Industry Standard EN50155
EMS IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), EC(EN)61000-4-5(Surge), IEC(EN)61000-4-6(CS), IEC(EN)61000-4-8(PFMF), EC 60068-2-27(Shock), EC 60068-2-32(Freefall)
Impact IEC61373
Free Fall IEC60068-2-32
Vibration IEC61373
