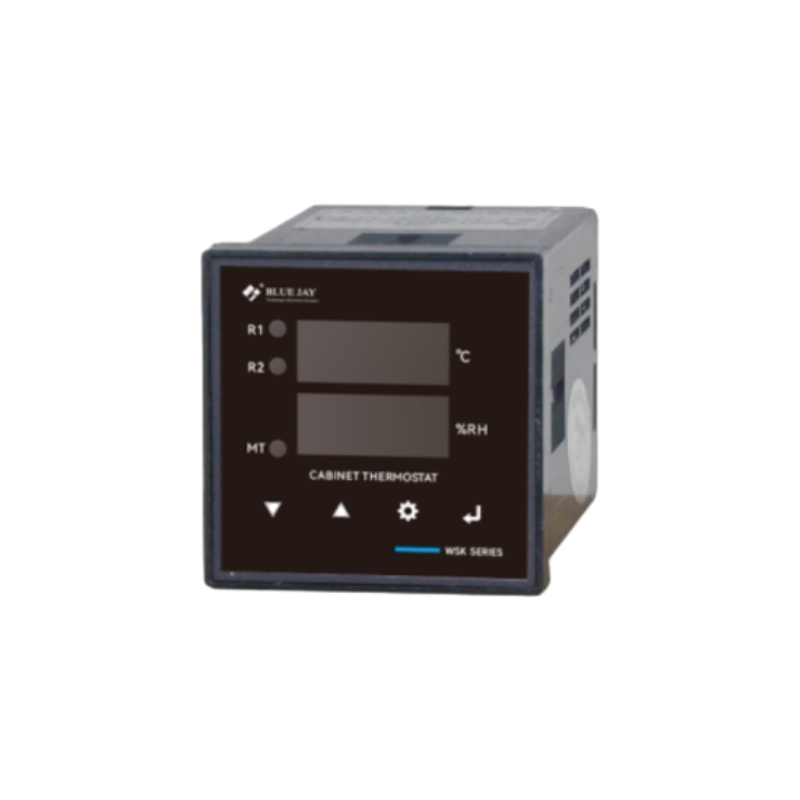

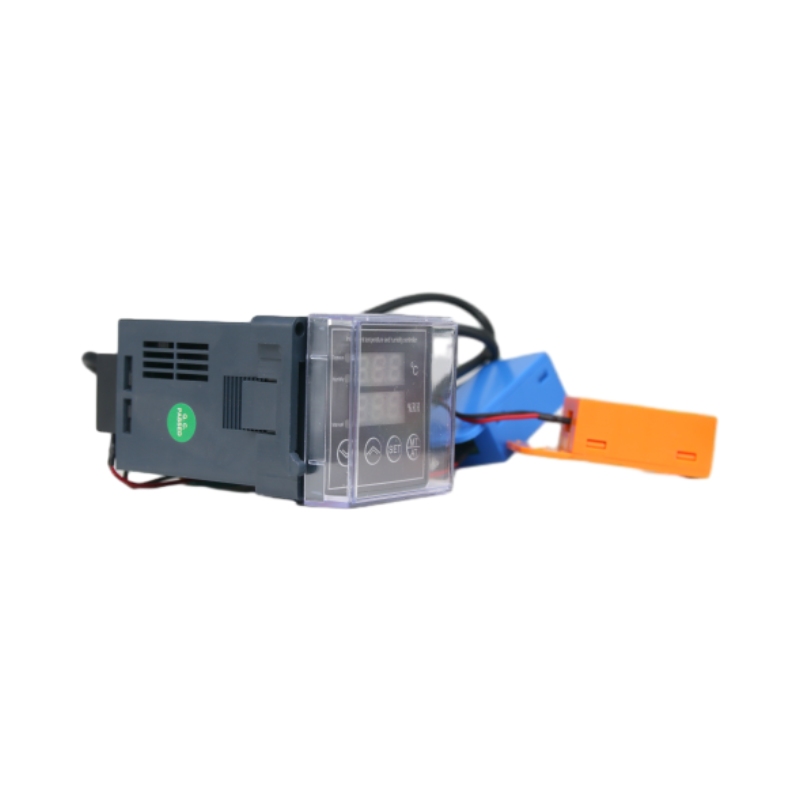

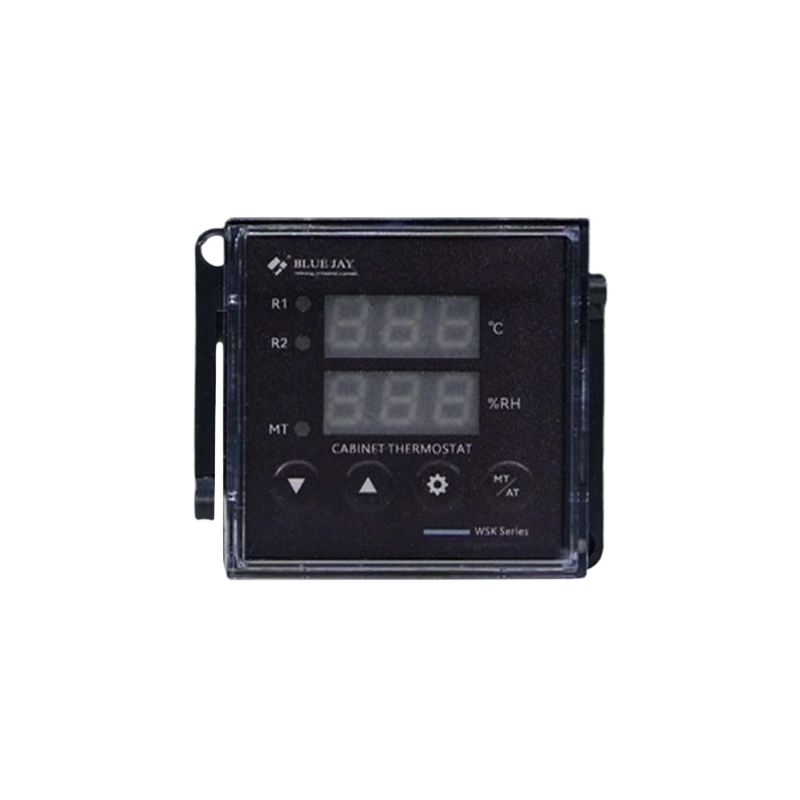

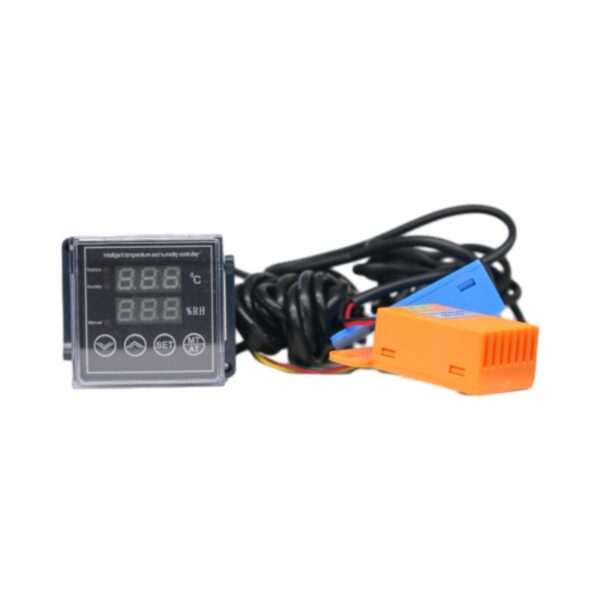

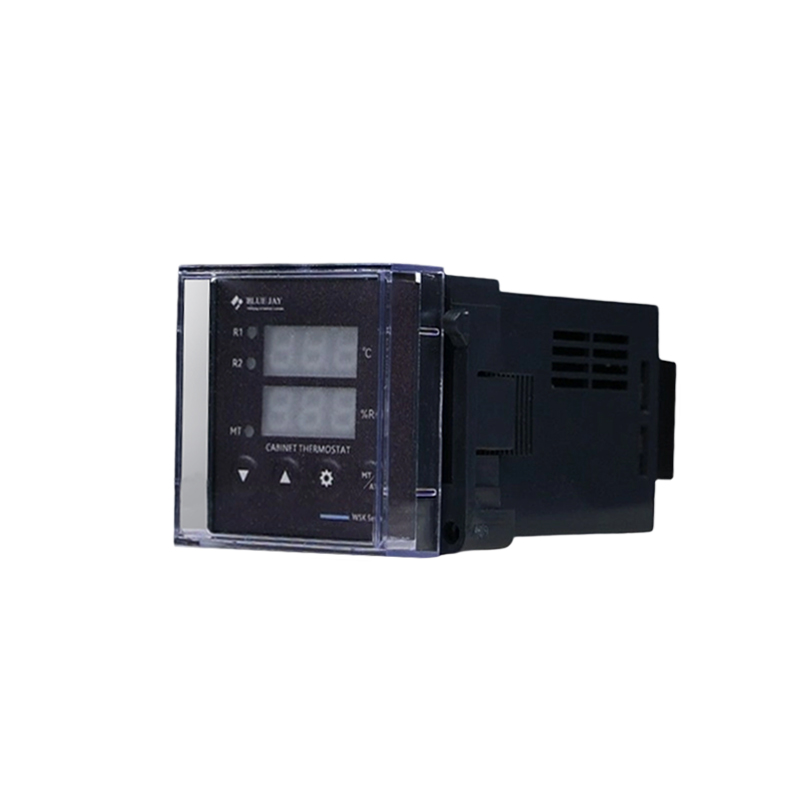

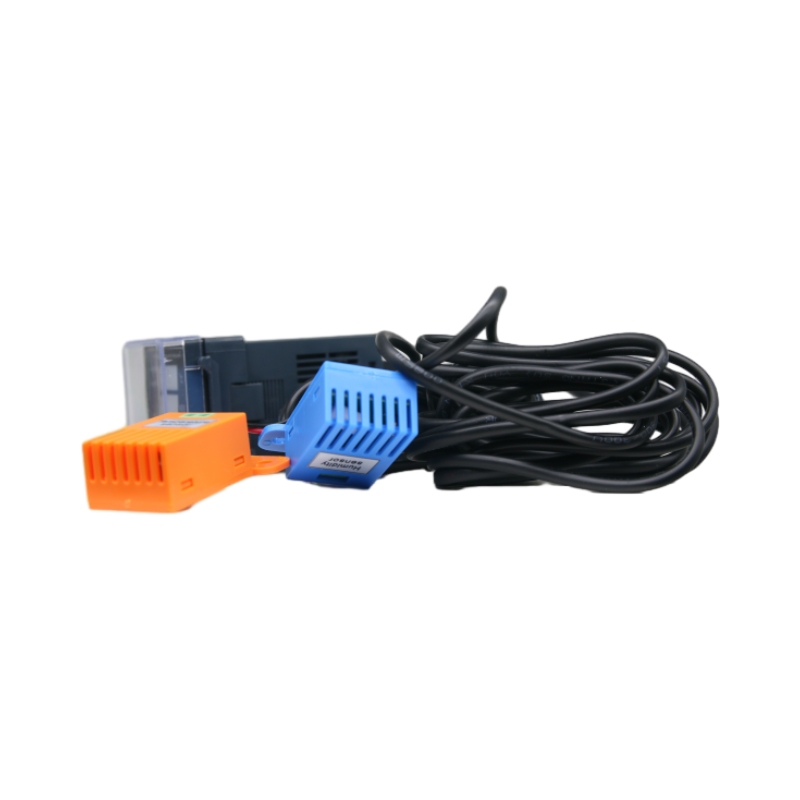

WSK-W2S2K2 enclosure thermostat hygrostats

WSK Series Temperature and Humidity Controller is a measurement device used on temperature and humidity control. and the humidity control module is integrated in the system, greatly improving the suitability of the equipment, obtaining the temperature and humidity change from the sensor and sending the measured data to the electronic processor. The output device will then control the temperature variation within a specific range.

With high technological content, using load control relay output, has fast output response, accurate PID parameter auto-tuning, support, Modbus communication protocol and is built-in with various output types, allowing different systems to reach a stable control status very quickly, can be used in the worst environment for long-term use, applied to the various occasion which need temperature and humidity control.

Contact us
Category:

FEATURES

  • DIN(48X48mm) Temperature Controller;
  • Support multi sensor input (K, S, Wre, T, E, J, B, N, CU50, PT100);
  • Wide control range -50~99°C;
  • Indication and control accuracy 0.5°C, high measurement;
  • Accuracy ±0.2%FS;
  • Use large capacity relay;
  • Output and alarm format can be set by user;
  • Built-in digital filter reduces interfere;
  • Self-calibration technology, keep stabilization;
  • 39″ height LED, prevent dazzle, highly visible display;
  • Switching power supply and low consumption.

APPLICATION

  • High and low voltage switchgears;
  • Industrial temperature regulation;
  • Automotive cooling systems;
  • Air conditioners, HVAC systems;
  • Medical equipment temperature regulation.

SPCIFICATION

Basic Parameters
Power supply 85V-256VAC/DC, 50Hz or Customize (refer to the label)
Power consumption ≤ 1.8W
Dimension 48W x 48H x 80D mm.
Control Output
Relay output 2-Route 250VAC, 5A 1PH, resistive load or passive node
RS-485 communication MODBUS ASCII / RTU communication protocol
Input
Temperature -40~99°C
Temp sensor accuracy +/-0.2 °C
Humidity 1~98%RH
Hum sensor accuracy +/-3.0%RH
Cable length 2 m.(3m option)
Sampling rate 400 msec /per scan
Display
Display method 2-line x 3 character 7-segment LED display
Keypads Menu, Enter, Increase, Decrease
Environment
Protection (TH) Anti-containing acid, alkali, salt gas
Relative humidity <93%, Non-condensing
Storage environment -10~55°C ; 20 ~ 93%RH ; Noncondensing
