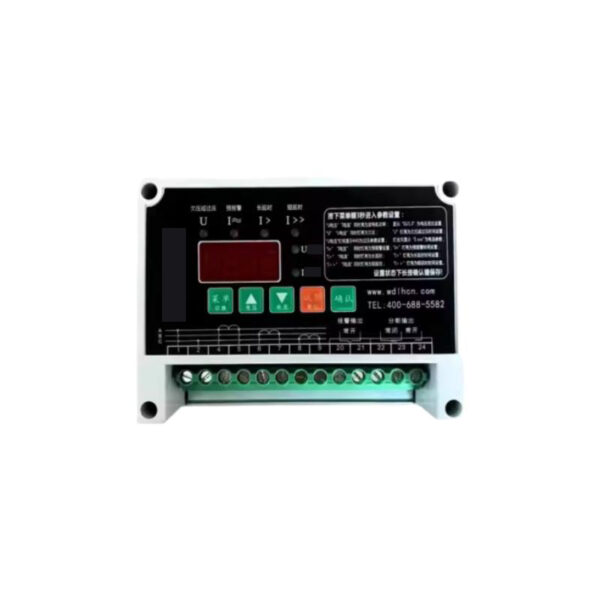

BJ-NGJ-I generator protection module

NGJ-I/S revser relay (With unloading function) is function extensive relay, it has not only reverse power protective function, but also overload pre-alarming & unload secondary loading function, so it is more common, easy adjustment, light weight, small volume, quality is more stable.

Contact us
Category:

Technical Functions:

1). When power system voltage change in ±10% rated voltage, frequency changes in ±5%, it is work normal;

2). Reverse relay power: Voltage: 100V (400V as option), 50/60Hz, A: two phase , power consumption: ＜2VA; Rated current input: 5A, A.C two phase, power consumption: ＜2VA;

3). When reverse power of parallel operation reach 3-15%(continuous adjustment) rated power, time delay 3-10s (continous adjustment), reverse power application start to work;

4). When generator reach to 90-100%(adjustbale), alarm signal instant output (negative power normal open contact), after time delay 10-30s(adjustable), unload signal output;

5). Contact output capacity: Alarming output contact, b: Reverse power output contact, unloading output contact; AC380V/3A, DC28V/10A (resistance load);

6). This equipment has the function of reverse power and un-load self-inspection;

7). Environment temperature: 0-55℃, relative humidy: 95%,  slashing, vibrating, oil mist, smoke mist occur during vessel operating;



Technical Data

1. Reverse relay power: Voltage: 100V(400V option), 50/60Hz, A, 2-phase, Power consumption: ＜ 2VA;
2. Contact output capacity: Alarm output contact,
b. Reverse power output contact,unloading output contact,
AC380v/3A, DC28V/10A;
AC250V JFO 12A,DC24V/1A；
3.Environment:: Temperature:0-55℃; Relative humidity: 95%

Dimension 151*106-80mm
Measurement(V) AC100-600V
Measurement(Hz) 50-60Hz
Mounting DIN Rail or 5mm Thread





Standards:

Item Technical Data Standards
Technical Standard GB/T7676-1998 IEC60092-50
Environmental Standard GB8355-1987 IEC92-504-74
Safety Standard GB4793-20 IEC61010
Working Temperature -40-65℃
Temperature Infulence -13-33℃, 100% comply with accuracy class
Indicating Angle 240°-270º (Synchroscope meter: 360º)
Color of Shell Black/white,board frame, terminal plate: black
Color of Dial Plate Black/white(other colors are available)
Mounting Vertical Installation
Dimension 110*110mm, 80*80mm
96*96mm, 72*72mm, 48*48mm
Overshoot Less than 20% when scale reaches to 2/3
Insulation Withstand Circuit& shell: AC2600V/1 min(Water area)
Vibration Resistance 24.5m/s2
Impact Resistance 147m/s2
Material Shell/terminal board: ABS; Cover: Transparent Glass
