Features
- Compact
- Flat design
- High air through-flow
- Temperature safety cut-out
- Clip fixing
Technical Data

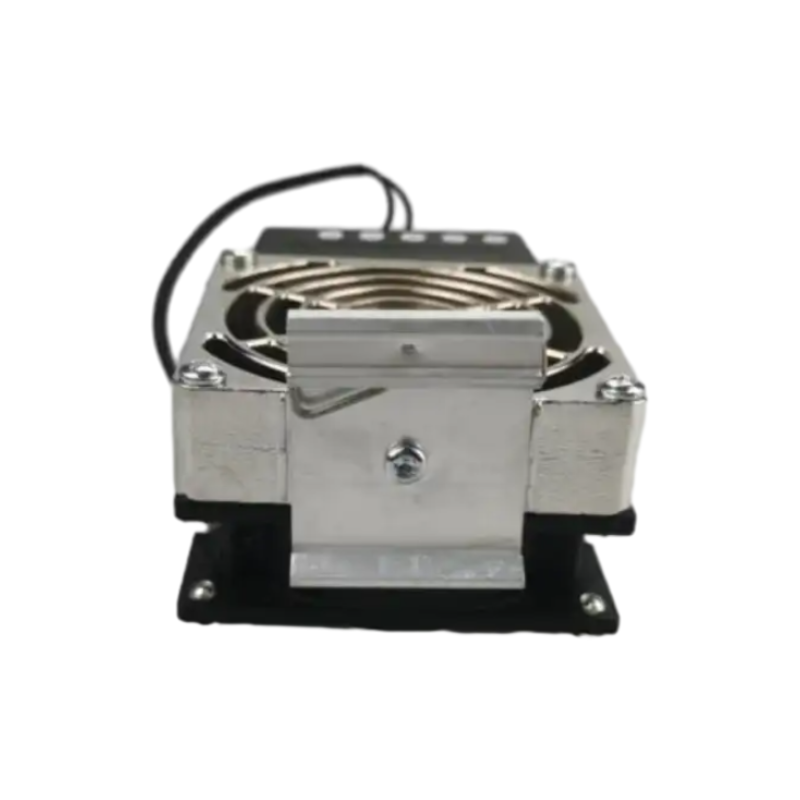

| NTL 406 | |
| Operating voltage | 230VAC or 120VAC |
| Heating element | high performance cartridge |
| Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
| Heater body | die-cast aluminium (glass bead blasted) |
| Connection | 3-pole screw connector 2.5mm², clamping torque 0.8Nm max. |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up) |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Axial fan, ball bearing | airflow see table, service life 50,000h at +25°C (+77°F) |
| Connection (axial fan) | 2-pole screw connector 2.5mm² (L2/N2) |
| Protection type/Protection class | IP20 / I (earthed) |
| Art. No. (230VAC) | Art. No. (120VAC) | Heating capacity | Dimensions | Weight (approx.) |
| 860356 | 860366 | 100W | 80 x 112 x 22mm | 0.6kg |
| 860357 | 860367 | 150W | 80 x 112 x 22mm | 0.6kg |
| 860358 | 860368 | 200W | 119 x 151 x 22mm | 0.9kg |
| 860359 | 860369 | 300W | 119 x 151 x 22mm | 0.9kg |
| 860360 | 860370 | 400W | 119 x 151 x 22mm | 0.9kg |
