Applications of 48A EV Charger
- Service station operators
- Public corridor charging along the highways
- Busy urban areas
- Commercial fleet operators
- EV Infrastructure operators and EVSE providers
Specification of 48A EV Charger
| Datasheet | Parameters | |||
| Name | YL – MB 261 | YL – MB 262 | YL – MB 263 | |
|
Appearance Structure |
Mode l | RFID to Charge | ||
| Enclosure | Charging gun PC 9330 / Control Box sheet metal | |||
| Size | Charging Gun 240*98*70mm/Wall Box 300*220*80mm【H*W*D】 | |||
| Installation Method | Wall – Mounted / Column | |||
| Install Components | Column (Option *) | |||
| Power direction | Input (Down ) & Output ( Down) | |||
| Net Weight | About 3.7 KG | About 4.5 KG | ||
| Cable Size | 3*6 mm² + 0. 75 mm² | 8 AWG x 2C + 10 AWG + 18 AWG | ||
| Cable Length | 5 M or Negotiation | |||
| Input Voltage | AC 240V | |||
|
Electrical Index |
Input Frequency | 50 Hz / 60 Hz | ||
| Max Power | 7.6 KW | 9.6 KW | 11.5 KW | |
| Output Voltage | AC 240V | |||
| Output Current | 32 A | 40 A | 48 A | |
| Standby power | 3W | |||
|
Environment Index |
Applicable scene | Indoor or Outdoor | ||
| Work Humidity | 5 % ~ 9 5 % (non – condensing) | |||
| Working temperature | – 30 ℃ ~ + 50 ℃ | |||
| Work Altitude | <2000M | |||
| Protection Class | Charging gun IP 67 / Control Box IP 54 | |||
| Cooling Method | Natural Cooling | |||
| Standard | SAEJ 1772 | |||
| Flammability rating | UL 94 V0 | |||
| Certificate | UL, FCC | |||

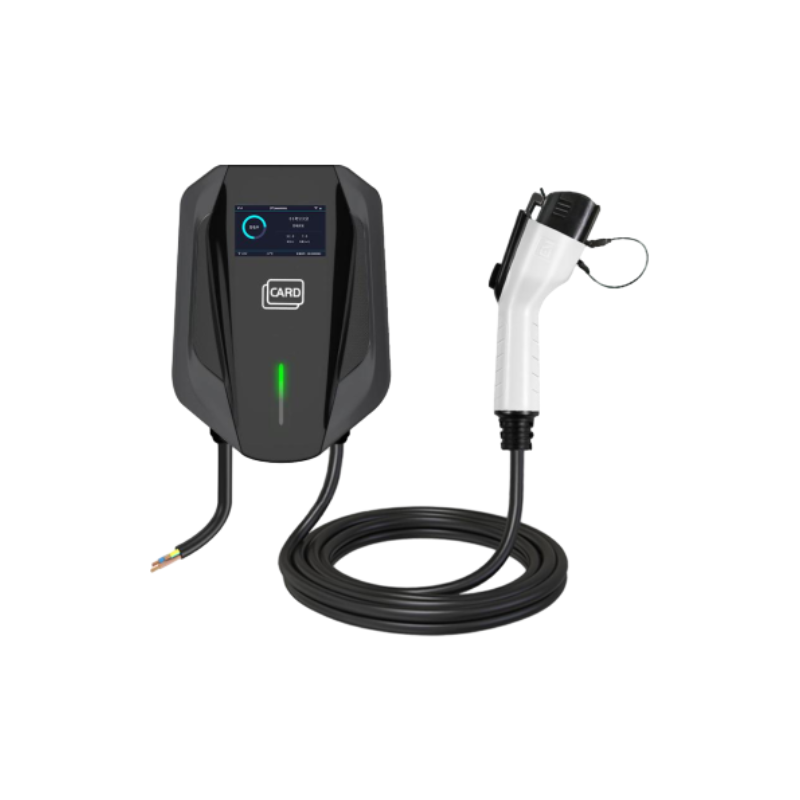

| Functional Design | I n t e r f a c e | 5.6 inch Display Screen | ||
| Communication | / | |||
| Packaging Specification | Boxgauge / weight | L*W*H: 410*410*125 m m (About 4.5KG) | L*W*H: 410 * 410 * 12 5 mm(about 5.3KG) | |
| Safety Design | Overcurrent Protection, Residual currrent protection, ground protection, surge protection, over/under voltage, Frequency, Temperature Protection | |||
