In modern railway transportation systems, electrical infrastructure serves as the vital link between rolling stock and fixed installations. From traction systems, auxiliary power supply, signaling and control networks to surge protection and grounding measures, electrical safety is essential to ensuring the stability and reliability of the entire railway system.
Sell-Best, as a professional Chinese distribution platform for electrical and automation components, offers a comprehensive range of electrical safety products—such as Insulation Monitoring Devices (IMD), Residual Current Monitors (RCM), circuit breakers, surge protection devices, and protection relays—to help build robust railway electrical safety solutions. The following sections detail each key device and its role in railway applications, illustrating the value Sell-best can provide.

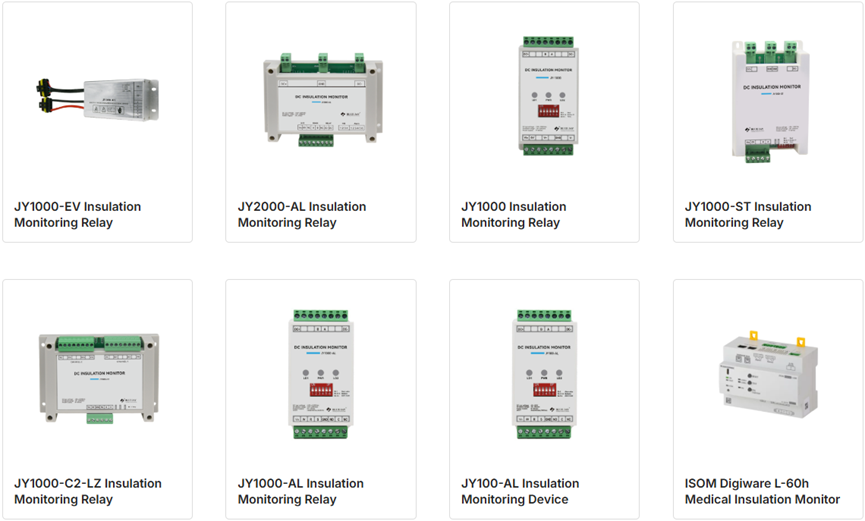

Insulation Monitoring Devices (IMD)
Designed to continuously monitor insulation resistance in IT or high-voltage DC systems, enabling early detection of insulation degradation or ground faults to prevent electrical hazards.
IMD insulation monitoring
Core Functions and Features
- Real-time insulation resistance monitoring: For ungrounded (IT) power systems or high-voltage DC systems, IMDs continuously measure insulation resistance between each conductor and earth. When the resistance drops below a defined threshold, the device issues an alarm or triggers a protective response.
- Early fault detection: IMDs can detect insulation degradation at an early stage, preventing the development of serious ground faults, arcing, or breakdown incidents.
- Fault location / branch identification (advanced models): Certain IMDs can identify faulty circuits, indicate fault type and direction, assisting maintenance personnel in quick troubleshooting.
- Voltage-free / low-voltage monitoring: Some models support insulation checks even when the system is de-energized, ensuring safe startup conditions.
Typical Railway Applications
- Traction battery / DC power supply systems: Monitoring insulation resistance between DC+ / DC− and vehicle chassis (earth) to prevent traction control shutdowns or short circuits.
- Traction converters / drive units: Monitoring insulation on both AC and DC sides, particularly the inverter intermediate circuit, rectifier, and traction motor circuits where electrical stress is high.
- Auxiliary / central power IT systems: Monitoring insulation impedance in three-phase ungrounded systems, enabling early warning of degradation trends.
- Infrastructure signaling and power systems: Providing insulation protection for signaling, trackside equipment, turnout heating systems, and rectifier substations, helping prevent fault propagation or signal interference.

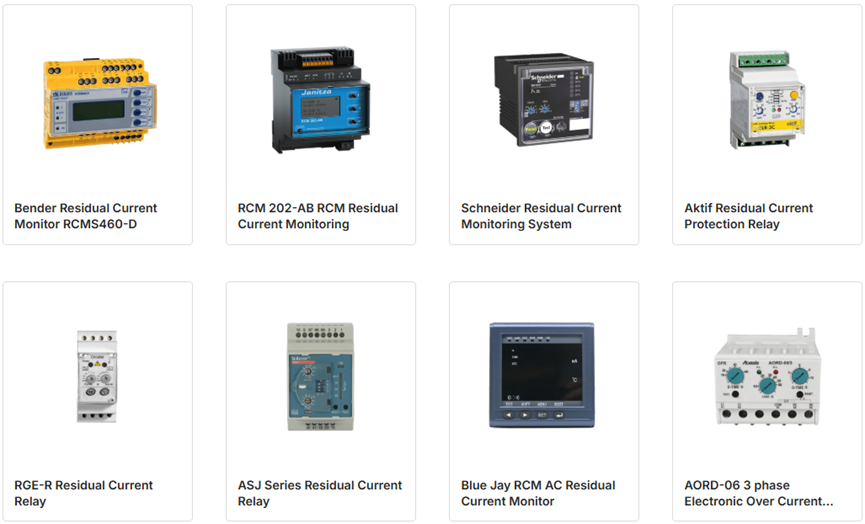

Residual Current Monitors (RCM)
Designed to detect leakage or ground currents in electrical circuits; when the residual current exceeds the set threshold, it triggers alarms or protective actions to ensure equipment and personnel safety.
Function and Working Principle
Residual Current Monitor (RCM) is designed to detect unbalanced currents (such as leakage or fault currents) within an electrical circuit. By measuring the vector sum of the three-phase and neutral conductors, the RCM determines if residual current exceeds the set threshold. If so, the system interprets this as an insulation fault, leakage, or ground fault, triggering alarms or protective actions.
RCMs are especially critical in low-voltage networks, auxiliary power circuits, and other areas where personnel protection and operational safety are required.
Railway Application Scenarios
- Onboard auxiliary power and passenger service circuits: Monitoring leakage in lighting, HVAC, and socket circuits to prevent current flow through the chassis or earth.
- Infrastructure power distribution: Detecting leakage in signaling networks, control cabinets, and trackside electrical circuits.
- Ground fault warning for IT systems: Even in ungrounded IT networks, RCMs provide an additional layer of leakage monitoring, enhancing overall electrical safety.

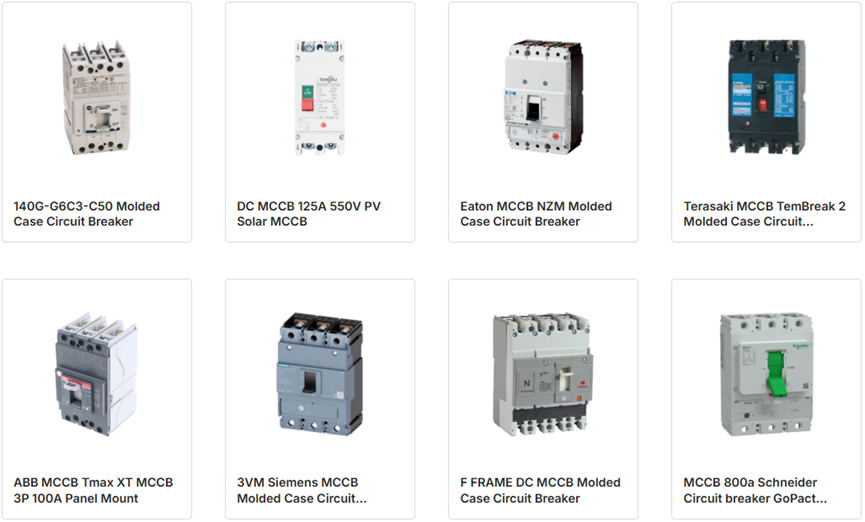

Circuit Breakers
MCCB & MCB
Circuit breakers are fundamental protection and control devices in power systems. Their primary function is to quickly disconnect the power supply in the event of overload, short circuit, fault, or unbalanced conditions, thereby preventing equipment damage, fire, or more severe consequences. Circuit breakers typically provide overload protection, short-circuit protection, undervoltage/phase loss protection, overvoltage protection, and in some cases, integrated residual current protection.
They can be classified by voltage and functionality into:
- Low-voltage circuit breakers (e.g., MCCB, MCB)
- Medium-/high-voltage circuit breakers (used in certain railway power supply networks)
- Special function breakers (e.g., smart breakers with electronic control and communication interfaces)
Railway Application Scenarios
- Traction converter cabinet / drive system power isolation: Quickly isolate faulty circuits during failure or maintenance.
- Auxiliary power / passenger supply: Segment and protect load circuits to prevent fault propagation.
- Signal and control cabinet distribution: Safeguard signal devices, relays, and controllers from short-circuit surges.
- Trackside power and substation switchgear: Provide disconnection and protection functions in medium- and high-voltage systems.
Surge Protection Devices (SPD)
Surge protection devices are used to protect electrical equipment from transient overvoltage events such as lightning strikes, switching surges, and harmonic disturbances. Their operating principle is to provide a low-impedance path when the voltage exceeds a preset threshold, safely diverting excess energy to ground or a bypass, thereby limiting the voltage stress on equipment.
SPDs are typically classified into different levels (Type 1, Type 2, Type 3) to provide protection at various voltage levels and positions in the system (main line, branch circuits, or terminal equipment).
Railway Application Scenarios
- Traction power systems and trackside equipment: Protect lighting, communication, signaling, and substation equipment against lightning and surge impacts.
- Signal/control cabinets and communication systems: Prevent voltage pulses from intruding into signaling and control circuits.
- Auxiliary power, monitoring devices, sensors, and communication interfaces: Protect low-voltage devices and interfaces from surge damage.

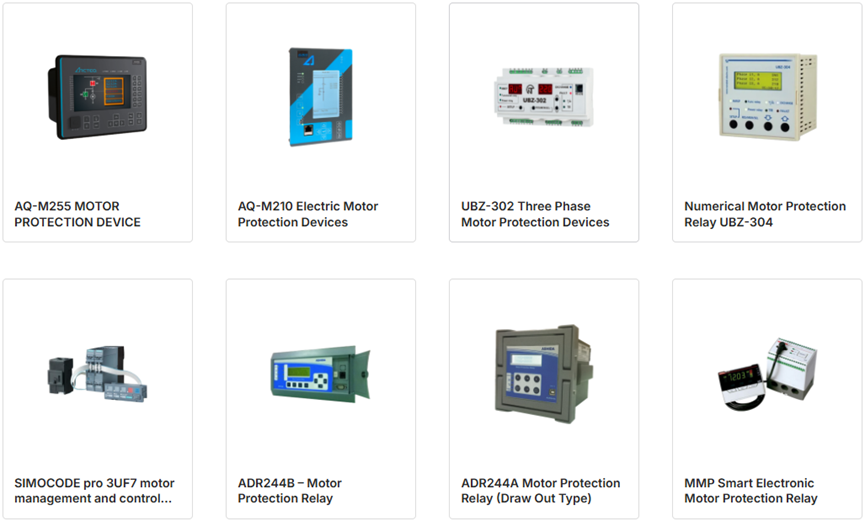

Protection Relays
Protection relays are intelligent devices used for fault detection, measurement, and control in power systems. They receive signals such as current, voltage, and phase, quickly identify abnormal conditions (such as overcurrent, overvoltage, differential fault, reverse power, and ground faults), and isolate the fault by issuing trip commands or control signals.
Modern protection relays typically feature communication interfaces, programmable logic, fault recording, remote monitoring, and event logging.
Key Applications in Railway Systems
- Traction/Power Supply Network Protection: Protects main power lines, feeders, and transformers from overcurrent, differential faults, undervoltage, and ground faults.
- Train Catenary Power Supply: Monitors for catenary faults, phase loss, short circuits, and backflow anomalies.
- Signal/Control System/Communication Lines: Provides protection or switching for power supply or communication link anomalies.
- Inverter/Rectifier Equipment Protection: Monitors for device anomalies, local overcurrent, and transient surges.
Comprehensive Protection Solution Architecture
The following is a proposed railway electrical safety protection system architecture, demonstrating how Sell-best products work together to build a railway-grade safety system:
- IMDs provide early-stage monitoring and early warning of insulation conditions.
- RCMs monitor line leakage faults.
- Circuit breakers, as physical disconnect devices, quickly isolate the circuit upon detecting a fault signal.
- SPDs protect against surges and ensure equipment is not overloaded.
- Protection relays, as an intelligent decision layer, integrate current/voltage/status information to issue disconnect commands or alarm signals.
| Protection Layer / Equipment Type | Corresponding Application Scenario | Protection Target / Function |
| Layer 1: Insulation Monitoring | Traction batteries, converter cabinets, auxiliary power supplies, signal systems | Real-time monitoring of insulation resistance and early warning of insulation degradation |
| Layer 2: Residual Current Monitoring | Passenger compartment circuits, auxiliary power lines, control cabinets | Detection of leakage current / ground faults |
| Layer 3: Circuit Breaker Breaking Protection | Various circuit branches, main power supply links | Overload, short circuit, fault interruption and isolation |
| Layer 4: Surge Protection | Main power supply, branch lines, sensitive equipment | Lightning protection and surge impact protection |
| Layer 5: Protective Relay Intelligent Protection | Substation/power supply network, catenary, power supply links | Fault detection, isolation decision-making, intelligent tripping |
Using this Sell-best product portfolio, a comprehensive system can be built, encompassing vehicles and infrastructure, DC and AC, and main grid and branch circuit equipment.
Conclusion
In railway systems, electrical safety is not the function of a single device; rather, it is a comprehensive system encompassing insulation monitoring, leakage monitoring, sectional disconnection protection, surge protection, and intelligent fault detection. The Sell-Best platform product line covers the key components of this system and offers significant advantages in product models, quality control, inventory, logistics, and technical support.
