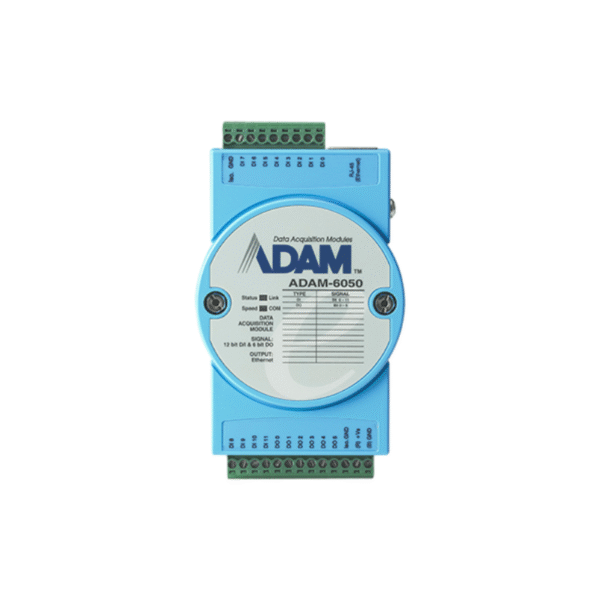

Feature
- 12ch digital input(counter)/6ch digital output(pulse output)
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
- GCL to perform basic logic control rules
- Peer-to-Peer function to map I/O status
- Cloud access: Data update to Azure
- Built-in web server
- Watchdog timer to recover the system
Specification
Parameter | Value |
Communications | Interface: Ethernet |
Environment | Isolation Voltage: 2,000 VDC Operating Temperature: -40~70 °C (-40~158 °F) |
General | Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command |
Isolated Digital Input | Channels: 12 Input Voltage: Dry Contact: Logic level 0: close to GND; Logic level 1: open Wet Contact: Logic level 1: 10~30 VDC; Logic level 0: 0~3 VDC |
Isolated Digital Output | Channels: 6 Output Type: Sink Output Voltage: 0~30 VDC Sink Current: 100 mA max./channel |
Power Requirements | Input Voltage: 10~30 VDC |
Counter/Encoder Input | Channels: 12 Max. Input Frequency: (No value provided) |
