Features
- Provide time domain waveform, PRPD, PRPS and other discharge spectra to realize the analysis of different discharge types;

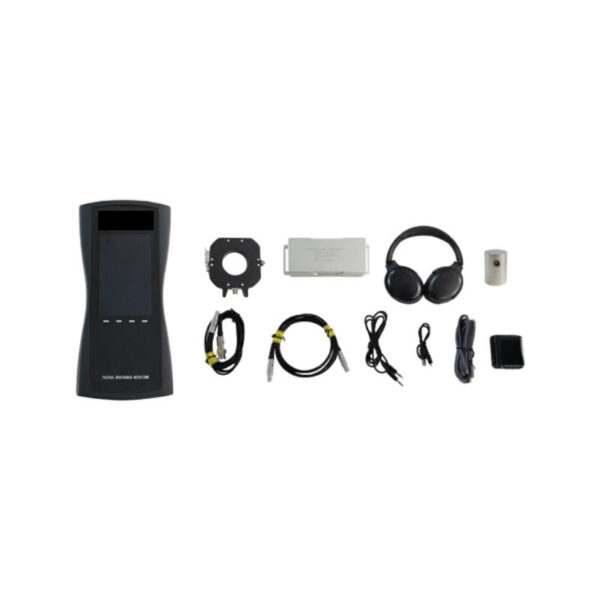

- Configure different sensors to realize partial discharge detection of almost all electrical equipment;
- Humanized man-machine interface facilitates data management of different equipment, including tracing of historical data change trends, horizontal and vertical data analysis, and realizes 360° comprehensive diagnosis of the equipment under test;

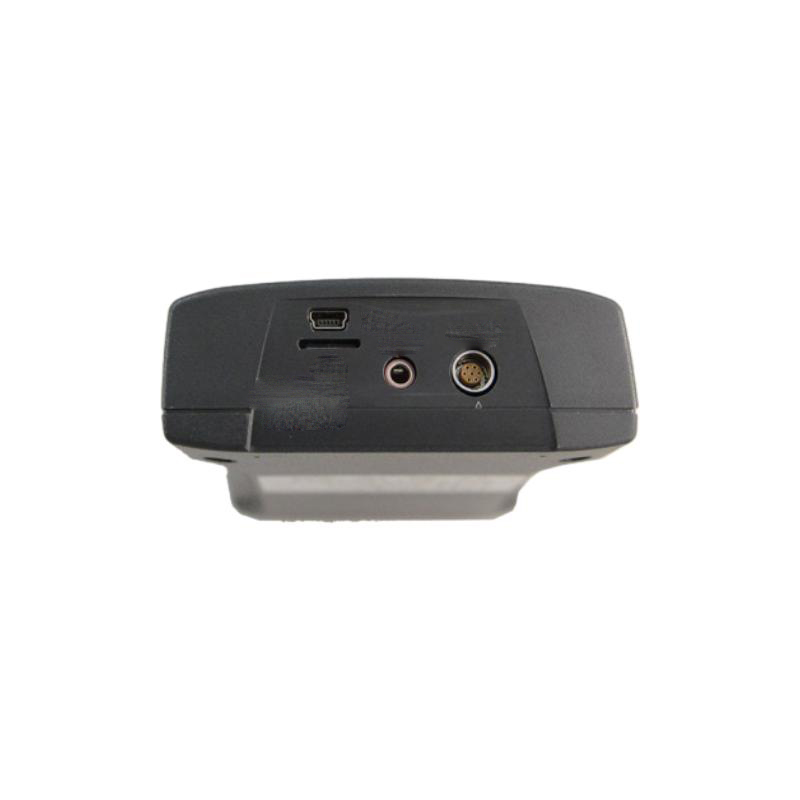

- Built-in ultrasonic sensor and transient earth voltage (hereinafter referred to as TEV) sensor, which can be connected to special sensors such as transformers, GIS, overhead lines, cables, etc.;
- Adopt non-invasive detection method, no power outage is required during the test, and no additional high-voltage source is required, which is more convenient to use than traditional pulse partial discharge detectors;
- The test bandwidth range is 30kHz ~ 2.0GHz, which is applicable to the detection principles of various frequency bands;
Specification
| TEV Measurement | UHF Measurement | ||
| Measurement Range | 0 – 60 dBmV | Detection Frequency Band | 300 – 2000MHz |
| Resolution | 1dB | Measurement Range | 0 – 60 dBmV |
| Accuracy | ±1dB | Accuracy | <1dBmV |
| Maximum Pulses per Cycle | 1400 | Sensor Frequency Band | 300 – 2000MHz |
| Measurement Frequency Band | 3 ~ 100MHz | ||
| AA Measurement | AE Measurement | ||
| Measurement Range | -6dBμV ~ 68dBμV | Measurement Range | -6dBμV to 68dBμV |
| Resolution | 1dB | Resolution | 1dB |
| Accuracy | ±1dB | Accuracy | ±1dB |
| Sensor Center Frequency | 40 kHz | Frequency Range | 20 ~ 200 kHz |
| HFCT Measurement | |||
| Sensor Transfer Impedance | 5mV/mA | ||
| Detection Frequency | 1 ~ 30MHz | ||
| Sensitivity | ≤50pC | ||
| Hardware | |||
| Housing | ABS |
