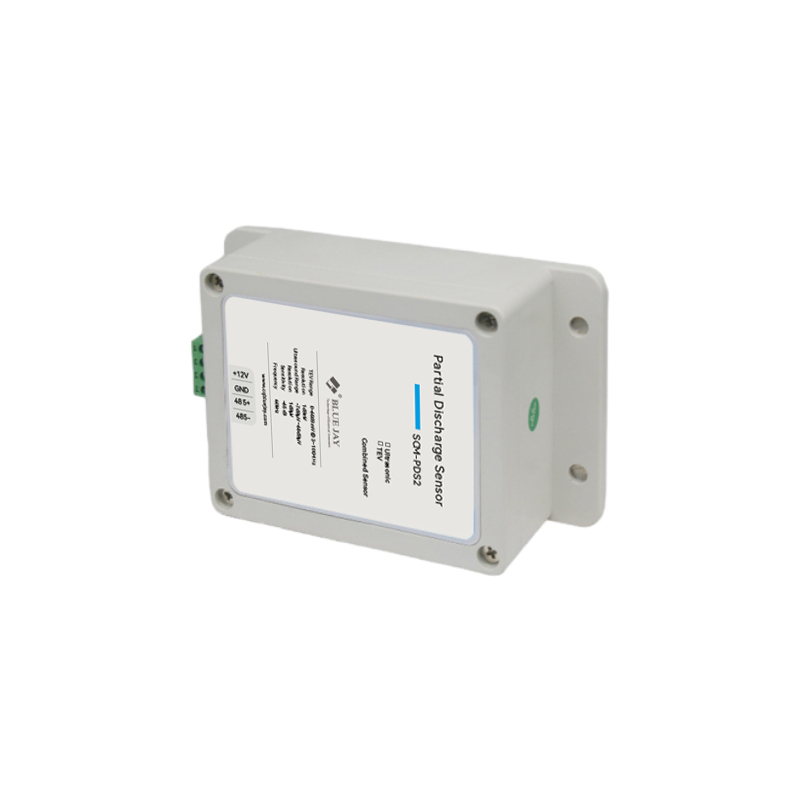

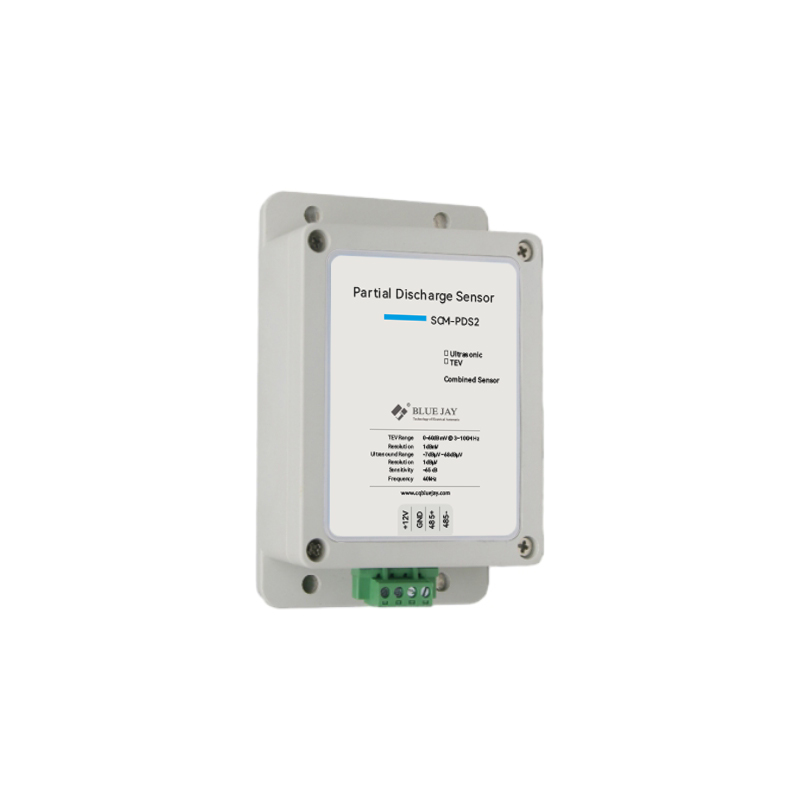

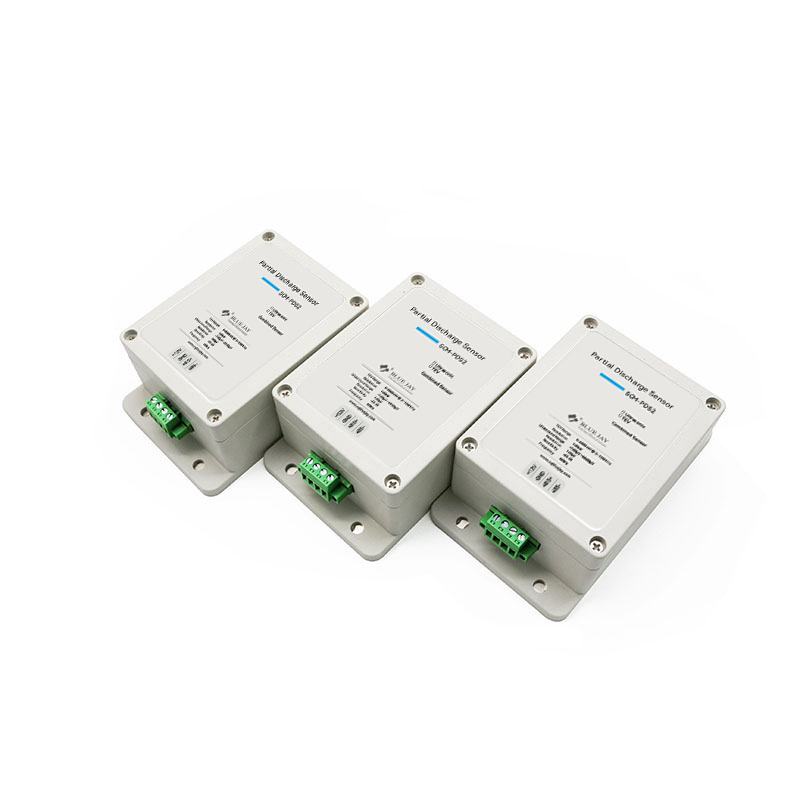

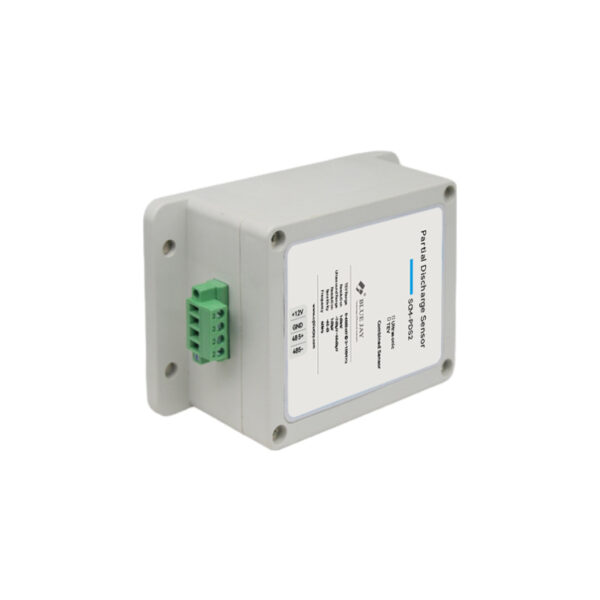

SCM-PDS1-TEV tev sensor partial discharge

TEV partial discharge sensor’s working principle is based on a direct capacitive coupling with a switchgears earthed metal case. The two ends of TEV sensor can be coupled magnetically to virtually any opening on a metal Surface. It picks up the electric signal given by PD activity onto the two metallic surfaces. Its high sensitivity, easy installation and rigid design make the TEV the best sensor for direct installation on medium and high voltage related equipment.

Contact us
Category:

FEATURES

  • Rugged, compact design;
  • Non-intrusive detection method;
  • Transient overvoltage protected;

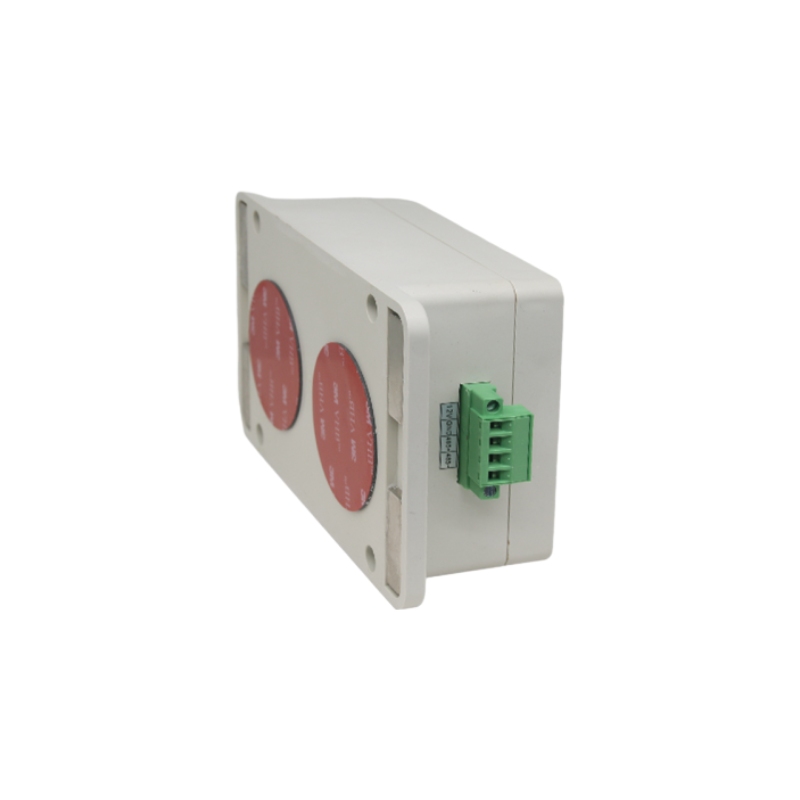

  • Strong magnets to attach sensor;
  • RS485, Modbus-RTU, SCADA systems
  • Customizable according to customer needs;
  • Suitable for online or offline PD measurements.



APPLICATIONS

  • Factory and on-site testing;
  • Power transformers;
  • Medium and high voltage connections;
  • Power coils, motors;
  • Industrial motor equipment;
  • High voltage components: sleeves, insulators, containers, coil terminations, bus wires.

SPECIFICATION

Parameter Value
Power supply 12VDC
Detect range 0~60 dBmV
Pass band 3~100MHz
Resolution / Accuracy 1dBmV / ±1dBmV
Signal transmission distance Up to 80m (260 feet)
Static power consumption <10mW
Installation method 4* Strong magnet, wall mount
Sampling period 4S
Communication RS485/Modbus RTU
